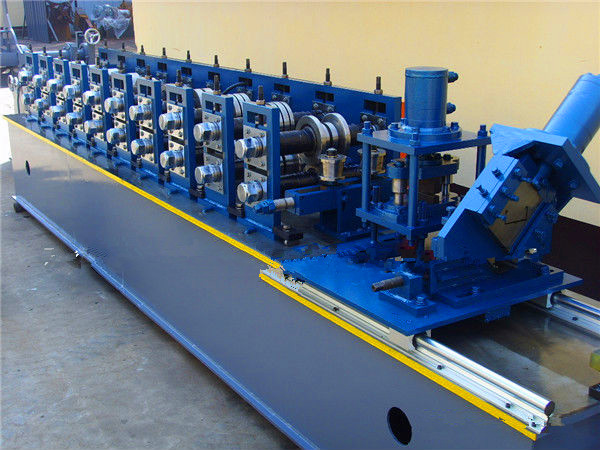

Automatic Light Guage C Track Stud Roll Forming Machine Frame Ceiling Making7.5Kw
Automatic Light Guage C Track Stud Roll Forming Machine Frame Ceiling Making7.5Kw
Automatic Light Guage C Track Stud Roll Forming Machine Frame Ceiling Making7.5Kw
Automatic Light Guage C Track Stud Roll Forming Machine Frame Ceiling Making7.5Kw
Specifications
Model Number :
floor decking Machine
Certification :
CE
MOQ :
1 set
Price :
on discuss
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 days after receiving deposit
Packaging Details :
the Packaging Detail of roll forming machine door : Standard and safe export package, suitable for long term sea way shipping Delivery Detail: within 45 working days after down payment received
Model NO.: :
EN-130JK
Material Thickness: :
0.4-0.7mm
Rolling Speed: :
6-15m/Min
Roller Stations: :
14 Stations
Hydraulic Cutting Power: :
5.5kw
Material of Shaft: :
45 Steel
Transport Package: :
Plastic Film, Container
HS Code: :
845522100
Description

Automatic Light Guage C Track Stud Roll Forming Machine Frame Ceiling Making7.5KwAutomatic Light Guage C Track Stud And Track Roll Forming Machine Frame Ceiling Making

Machine description Quantity Delivery time Container type

roll forming machine prices


1SET

30 working days after
receiving deposit


20GP

Profile Drawing

Automatic Light Guage C Track Stud Roll Forming Machine Frame Ceiling Making7.5Kw

Machine Components

Name Quantity(set)
De-coiler 1
Feeding guiding Device 1
Roll Forming Part 1
Hydraulic cutting Device 1
Computer control box 1
Hydraulic System 1
Run-out table 1

Parameter

1. DECOILER
(1) Max. Width: 600 mm
(2) Inner Diameter: Φ350 – Φ450 mm
(3) Out Diameter: 1200 mm
(4) Max. Loading Capacity: 3000 kg

2. ROLL FORMING MACHINE

You only input the data in PLC, then machine can change the size automatically.

(1) Rolled Material: Cold Rolled Steel Sheet
(2) Material Thickness:0.5-1.2mm
(3) Rollers: 15Groups

(4) Material for Rollers: 45# steel polished and coated with chrome HRC55-60°

(5) Hardness for Heat Treatment: HRC55 – 60

(6) Frame panel thickness: 14mm

(7) Bottom frame: 40# H-section steel
(8) Motor Power: 15 kw
(9) Rolling Speed: 25m / min

(10) Driven type: gear box

(11) Hydraulic pressure: 20Mpa

4. PUNCHING DEVICE:NON-STOP

(1) Material punching die: Cr12 steel

(2) Hardness for Heat Treatment:HRC55 – 60

(3) Punching die:2sets

(3) Power:7.5kw

(4) Servo motor:3kw


3. CUT-OFF DEVCE:NON-STOP
(1) Material for Cut-Off Modular:Cr12 steel
(2) Hardness for Heat Treatment:HRC55 – 60
(3) Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Cut-Off Modular:1 set
(5) Motor for Hydraulic Stand: 7.5 kw

(6) Servo motor:3kw


4.ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with double touch screen
(2) PLC Brand: FKTEK Made in TAIWAN
(3) Encoder Brand: Omron

(4) Transducer: Changzhou TongLi

(5) Length Error: ±2mm

(6) Voltate:380v,50HZ,3ph

Feature:
1. Cutter Material: Cr12MoV1 mould steel with heat treatmen
2. Shaft Material: 45# mould steel with heat treatment
3. Roller Material: 45# mould steel with heat treatment, hard Chrome Coated
4. Have fashionable, nice appearance and durable
5. Payment Term: 30% deposit and balance before delivery
6. Widely used in various industrial factory, villa building, civilian building, warehouse, etc
7. We can manufacture various kinds of machines to satisfy our customer, you can also provided the drawings what you want or the samples, we will design the project for you accordingly

Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
