Electrolytic Tinplate Sheet Customize Service Plate Strip Tinplate Sheet Roll
Electrolytic Tinplate Sheet Customize Service Plate Strip Tinplate Sheet Roll
Specifications
Brand Name :
Wuxi Sylaith Special Steel Co., LTD
Model Number :
T1 T2 T3 T4 T5 Dr7 Dr8 Dr9. etc
Certification :
MTC
Place of Origin :
JIANGSU, CHINA
MOQ :
100KG
Payment Terms :
T/T
Supply Ability :
1000+ton/tons+month
Delivery Time :
7-15 days or as requirements
Packaging Details :
Standard Export Seaworthy Package. Suit for all kinds of transport, or as required
Length :
6000mm 5800mm 12000mm Or Customized
Surface Treatment :
Tin Coated
Thickness :
0.18 mm- 0.55 mm or Customized
Width :
750- 1200 mm or as Required
Special Use :
Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel
Trade Term :
EXW, Fob, CIF, CFR
Description
Electrolytic Tinplate Sheet - Customize Service Plate Strip Tinplate Sheet Roll
Electrolytic Tin Coated Tin Plate Coil / Plate / Strip High Quality Steel Coil Customize Service
Product Details
Tinplate (also known as tinplate) refers to a cold-rolled thin steel plate coated with an extremely thin layer of metallic tin on both sides, which combines the hardness and strength of steel with the easy weldability, corrosion resistance and bright appearance of tin. The tin plate has the advantages of tasteless, non-toxic, light weight, easy processing and forming. Printing different patterns can also beautify products, so it has been widely used in the food canning industry, electronic devices, chemical paint and other industries. In the process of tin plate production, after tinning, the tin plate should be passivated in order to prevent the tin layer from oxidizing and yellowing when the tin plate is stored or the coating is baked, and to improve the performance of the tin plate such as sulfur resistance.
Product Name Tinplate
Standard GB, JIS, ASTM, EN, ISO, etc.
Tin Coating Weight Equal weight tin plating, differential weight tin plating
Surface State Bright surface, stone surface, silvery surface, matt surface
Thickness 0.18-0.55 mm
Width 750-1200 mm or as required
Length 500-1168 mm or as required
Raw Strip Type MR, L, D
Hardness T-2, T-2.5, T-3, T-3.5, T-4, T-5
Application Food packaging, electronic appliances, building materials, etc
Raw Strip Type Characteristics
Raw Strip Type Characteristics
MR The content of non-metallic inclusion is similar to L steel, the limitation of residual elements content is not as strict as L steel, and it has good corrosion resistance, suitable for most purposes.
L The content of non-metallic inclusion and residual elements of Cu, Ni, Cr, Mo are low, used for applications of high requirements in corrosion resistance.
D Used for deep drawing or preventing stretch mark purposes.
Surface States
Code Type Characteristics
B Bright Surface Tin plating on smooth surface with stone pattern, then reflow the tin layer to obtain the bright surface.
R Stone Surface Tin plating on surface with a certain direction of the stone pattern, then reflow the tin layer to obtain the bright surface.
S Silvery Surface Tin plating on rough and matt surface, then reflow the tin layer to obtain the bright surface.
M Matt Surface Tin plating on matt surface without reflowing.

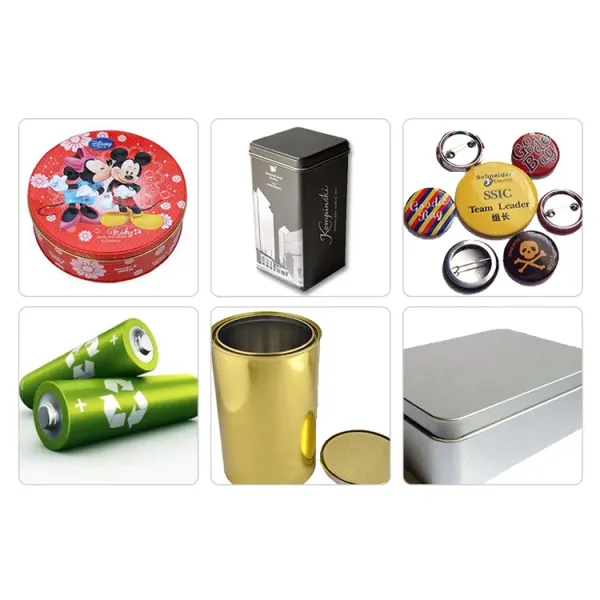

Applications
Remark Temper Grade Typical Application
Single Reduced (SR) T-1 / T49 / TS230 Drawn and ironed cans, nozzles, spouts, closures, mounting cup, oil filter.
T-2 / T53 / TS245 Ring and plugs, dome tops, closures, shallow drawn parts. Drawing can, body, end for large can.
T-2.5 / T54 / TS260 Battery shells, small can ends and bodies
T-3 / T57 / TS275 Top and bottom of cans, can ends and bodies, large diameter closures, crown caps.
T-3.5 / T59 / TS290 General use, pail, 18L, 4L
T-4 / T61 / TH415 Can bodies and ends, crown caps, closures. Body and end for small can.
T-5 / T65 / TH435 Can ends and bodies requiring intensity. Body and end for small can.
Double Reduced (DR) DR-7M / T71 / TH520 DRD bodies, dome, Lug cap & 3 piece bodies
DR-8 / T72 / TH550 DRD bodies, end, Lug cap & 3 piece bodies
DR-8M / T73 / TH580
DR-9 / T75 / TH620 DRD bodies, Lug cap & 3 piece bodies
DR-9M / T76 / - Thinner gauge body, end, DRD cans, caps.
DR-10 / - / - DRD bodies, Lug cap & 3 piece bodies. Thinner gauge body, end, DRD cans, caps.
Electrolytic Tinplate Sheet Customize Service Plate Strip Tinplate Sheet Roll

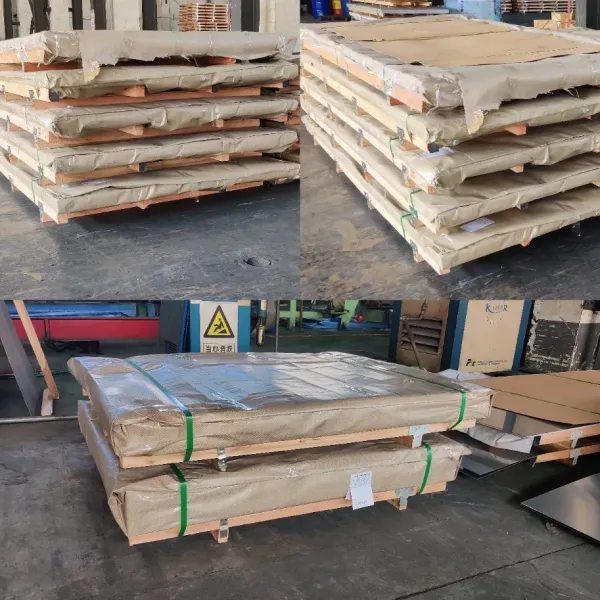

Package & Shipping
Electrolytic Tinplate Sheet Customize Service Plate Strip Tinplate Sheet Roll Electrolytic Tinplate Sheet Customize Service Plate Strip Tinplate Sheet Roll
Frequently Asked Questions
Q: Do you provide samples? How can I get a sample to check your quality? Is it free or extra?
A: Free samples are available for your checking and testing. And to get free samples, you need to send us your detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q: How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we take a test before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Q: Are you factory or trader?
A: Our company has been manufacturing and selling steel products for many years since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
