Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers
Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers
Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers
Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers
Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers
Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers
Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers
Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers
Specifications
Brand Name :
ANSTEEL
Model Number :
C22 1020
Certification :
ISO9001
Place of Origin :
China
MOQ :
1ton
Price :
Negotiable
Payment Terms :
30% Advance+70% Balance
Supply Ability :
5000 tons per year
Delivery Time :
5-8 work days
Packaging Details :
Seaworthy Standard Package
Application :
Boiler Pipe
Length :
As requirement
OD :
Customized
Processing :
Bending, Welding, Decoiling, Punching, Cutting
MOQ :
1 Ton
Description

Seamless and Welded Carbon Steel Pipe/Tube ASTM A53 / A106 Gr. B Sch 40 Black Iron Seamless Steel Pipe

Product Specification

20G steel tube is the most commonly used boiler steel tube steel, the steel has a certain room temperature and medium high temperature strength, low carbon content, good plasticity and toughness, its cold and hot forming and welding performance is good. 20G steel pipe is mainly used to manufacture high pressure and higher parameter boiler pipe fittings, low temperature superheater, reheater, economizer and water wall, etc.

Product Name DIN C22 1020 Cold Drawn Carbon Seamless Steel Tubes for High Pressure Boilers
Material 10#, 20#, 1020, C22, 1045, C45, 1010, CK10, Q195, Q235, Q345B, S185, S235JR, E235B,etc.
Size Out Diameter:DN10~DN1200, 1/8~100, 6mm~2400mm
Wall Thickness:SCH5~SCH160, STD, XS, XXS, 1mm~120mm
Length:12m, 11.8m, 6m, 5.8m, or as customers required
Surface Treatment Galvanized (hot galvanized only),Black painting, black varnish, transparent oil, 3PE, epoxy coating, BE, PE. Etc.
Pipe End Plain Ends, Beveled Ends,Thread with Coupling or cap
End Protector 1. Plastic caps (small OD) 2. Iron protector (large OD)
Section Shape Round/Square/Rectang ar
Usage 1.Casing Tube.
2.Boiler Pipe
3.structure pipe
4.Chemistry industry
5.Electric industry
6.Petroleunm and natural gas industry
7.Low and middle pressure fluid transportation pipeline
Technique Cold drawn,Hot-rolled,Finishing rolling,NDT test; UT test; Hydrostatic Tester,etc
Package 1.In bundle with steel strips
2.Woven bag packing
3.To your requirement

Chemical Composition

C Si Mn P S
(0.17~0.24)% (0.17~0.37)% (0.35~0.65)% ≤0.040% ≤0.040%

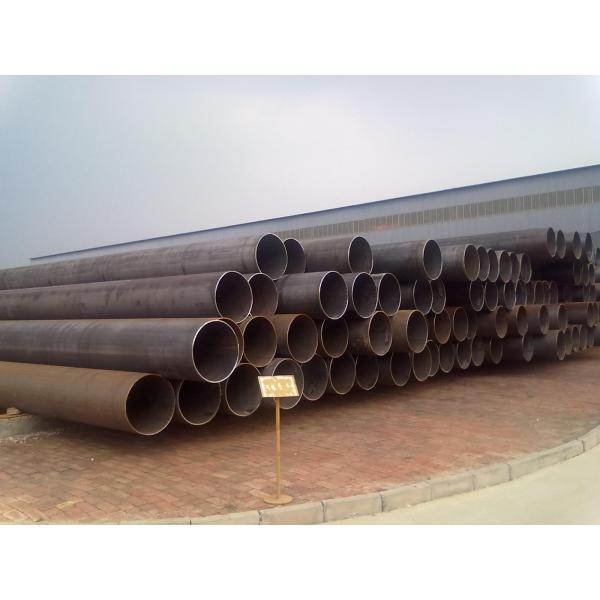

Product Image


Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers

Packing&Shipping

Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers

Certificaion
Din C22 1020 Seamless Carbon Steel Tube Cold Drawn For High Pressure Boilers
FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
