ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn
ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn
ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn
ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn
ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn
ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn
ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn
ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn
Specifications
Brand Name :
ANSTEEL
Model Number :
Q345 16Mn A106C
Certification :
ASTM, AISI, DIN, GB, JIS, BS
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Tons/Year
Delivery Time :
7-10 days
Packaging Details :
Seaworthy Packing for Exporting
Application :
Conveying Water, Oil, Gas and High Temperature Fluids
Trade Term :
FOB, CRF, CIF, EXW
Technology :
Hot Rolled/ Cold Rolled
Shape :
Round
Length :
As requirement
Standard :
ASTM A106-ASME SA106
Description

ASTM A106 GradeC Q345 16Mn Hot Rolled/ Cold Rolled​ Boiler Steel Tube

Product Description

16Mn steel belongs to carbon manganese steel, the content of carbon is about 0.16%, the yield point is equal to 343MPa (strength grade belongs to 343MPa grade). 16Mn steel has less alloy content and good weldability. It is generally not necessary to preheat before welding. However, because the hardening tendency of 16Mn steel is slightly greater than that of low carbon steel, it is necessary to take preheating measures to prevent cold cracks when welding at low temperature (such as open-air operation in winter) or on structures with large rigidity and thickness.

Mechanical Properties

Standard
Brand
Tensile strength(MPA)
yield strength(MPA)
ASTM A106
A
≥330
≥205
B
≥415
≥240
C
≥485
≥275

Chemical Composition

Grade
C
Si
Mn
P
S
Cr
Mo
Cu
Ni
V
A
≤0.25
≥0.10
0.27~0.93
≤0.035
≤0.035
≤0.40
≤0.15
≤0.40
≤0.40
≤0.08
B
≤0.30
≥0.10
0.29～1.06
≤0.035
≤0.035
≤0.40
≤0.15
≤0.40
≤0.40
≤0.08
C
≤0.35
≥0.10
0.29～1.06
≤0.35
≤0.35
≤0.40
≤0.15
≤0.40
≤0.40
≤0.08

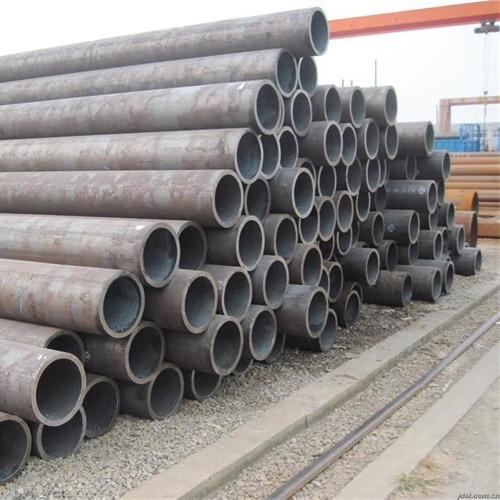

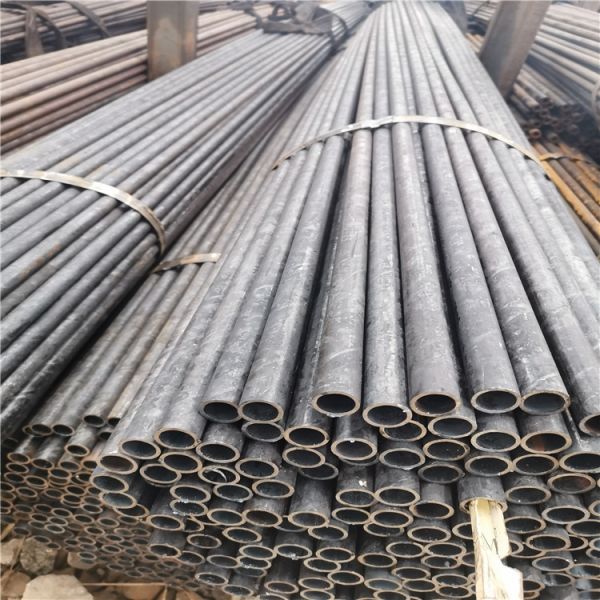

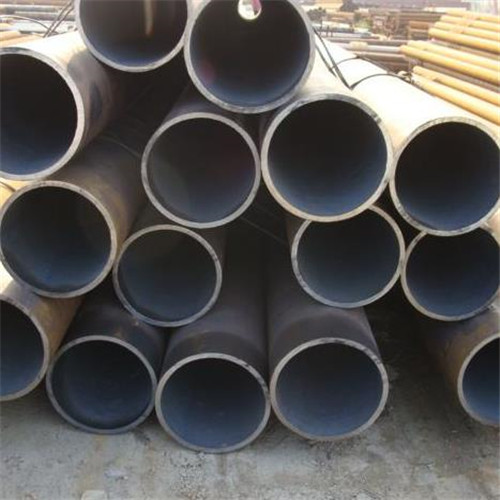

Product Show

ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn

ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn

Package & Delivery

ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn

ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn

Certification

ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn

Hot products

ASTM A106 Grade C Boiler Steel Tube Steel Welded Pipe Q345 16Mn

FAQ
Q: Do you provide samples ?How can I get a sample to check your quality? Is it free or extra ?


A: Free samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q: How is the quality of your products?


A: Our products are manufactured strictly according to national and international standard, and we take a test before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.

Q: Are you factory or trader?


A:Our company has been manufacturing and selling steel products for many years since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
