Specifications

Brand Name :

Zizhu

Model Number :

Steel Sheet Piling

Certification :

77021Q0030R2M

Place of Origin :

CHINA

MOQ :

25TON

Price :

720USD

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

10000 Tons per Month

Delivery Time :

30 DAYS

Packaging Details :

Standard Sea Worthy Package

Standard :

AiSi, ASTM, bs, DIN, GB, JIS

Technology :

Cold formed interlock or clutches

Technique :

Hot Rolled Cold Rolled

Material :

steel

Tolerance :

±5%

Length :

3M,6M,9M,12M or customized

Size :

tailor made

Condition :

Sheet pile have some stock

Thickness :

6-25mm

Type of Steel For Building Structure :

High-Strength Steel

Description

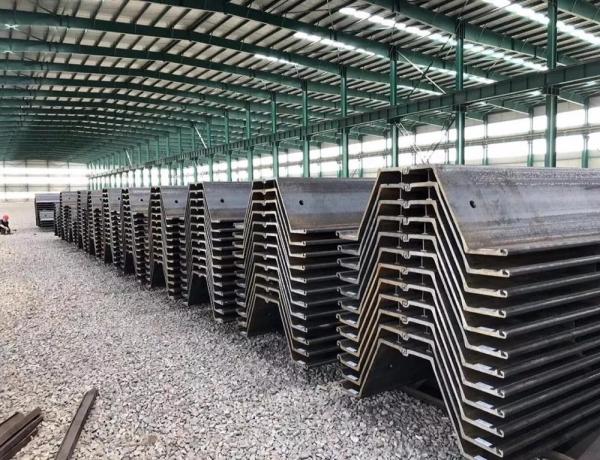

High Strength U Profile Steel Sheet Piles Materials Can Be Recycled And Reused

According to the cross-sectional shape and use of the steel sheet pile, it is mainly divided into three shapes: U-shaped, Z-shaped, and W-shaped steel sheet piles, and according to the wall thickness, it is divided into light-type and ordinary-type cold-formed steel sheet piles. Light steel sheet piles with a wall thickness of 4 to 7mm and ordinary steel sheet piles with a wall thickness of 8 to 12mm are mostly used in the entire Asian region including China.

Our factory Advantages

a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment et

Product name	steel sheet pile
Materials	Q235,Q345,Q390,SY 295 SY390
Technique	Hot rolled,cold formed
Type	U type or Z type
Certificate	ISO
Length	Any length as customer's request
Place of origin	China mainland
Package	Bundle in bulk,seaworthy packing or as customer's request
Application	flood project,construction project,bridge etc.
Brands	JINXI ZIZHU
Payment term	TT or LC at sight
Shippment	Bulk vessel or container
Delivery	In 25 days after receipt of L/C or TT

Type	Width	Height	Thickness	Sectional area	Weight per pile	Weight per wall	Moment of Inertia	Modulus of section
	mm	mm	mm	Cm2/m	Kg/m	Kg/ m2	Cm4/m	Cm3/m
WRU7	750	320	5	71.3	42.0	56.0	10725	670
WRU8	750	320	6	86.7	51.0	68.1	13169	823
WRU9	750	320	7	101.4	59.7	79.6	15251	953
WRU10-450	450	360	8	148.6	52.5	116.7	18268	1015
WRU11-450	450	360	9	165.9	58.6	130.2	20375	1132
WRU12-450	450	360	10	182.9	64.7	143.8	22444	1247
WRU11-575	575	360	8	133.8	60.4	105.1	19685	1094
WRU12-575	575	360	9	149.5	67.5	117.4	21973	1221
WRU13-575	575	360	10	165.0	74.5	129.5	24224	1346
WRU11-600	600	360	8	131.4	61.9	103.2	19897	1105
WRU12-600	600	360	9	147.3	69.5	115.8	22213	1234
WRU13-600	600	360	10	162.4	76.5	127.5	24491	1361
WRU18- 600	600	350	12	220.3	103.8	172.9	32797	1874
WRU20- 600	600	350	13	238.5	112.3	187.2	35224	2013
WRU16	650	480	8.	138.5	71.3	109.6	39864	1661
WRU 18	650	480	9	156.1	79.5	122.3	44521	1855
WRU20	650	540	8	153.7	78.1	120.2	56002	2074
WRU23	650	540	9	169.4	87.3	133.0	61084	2318
WRU26	650	540	10	187.4	96.2	146.9	69093	2559
WRU30-700	700	558	11	217.1	119.3	170.5	83139	2980
WRU32-700	700	560	12	236.2	129.8	185.4	90880	3246
WRU35-700	700	562	13	255.1	140.2	200.3	98652	3511
WRU36-700	700	558	14	284.3	156.2	223.2	102145	3661
WRU39-700	700	560	15	303.8	166.9	238.5	109655	3916
WRU41-700	700	562	16	323.1	177.6	253.7	117194	4170
WRU 32	750	598	11	215.9	127.1	169.5	97362	3265
WRU 35	750	600	12	234.9	138.3	184.4	106416	3547
WRU 38	750	602	13	253.7	149.4	199.2	115505	3837
WRU 40	750	598	14	282.2	166.1	221.5	119918	4011
WRU 43	750	600	15	301.5	177.5	236.7	128724	4291
WRU 45	750	602	16	320.8	188.9	251.8	137561	4570

Application

Steel sheet piles are widely used. In permanent structures, they can be used in wharfs, unloading yards, embankments, retaining walls, retaining walls, breakwaters, diversion dikes, docks, gates, etc.; in temporary structures, they can be used in It can be used for retaining soil, water, sand, etc. for mountain closure, temporary bank expansion, flow interruption, bridge cofferdam, large pipeline laying and temporary ditch excavation; in flood fighting and emergency rescue, it can be used for flood control, subsidence prevention, and quicksand prevention.
