Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry
Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry
Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry
Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry
Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry
Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry
Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry
Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry
Specifications
Brand Name :
SUNRISE
Certification :
ISO9001, SGS
Place of Origin :
CHINA
MOQ :
25 MT
Delivery Time :
15 days after receiving the deposit
Packaging Details :
Standard Seaworth Packing
Model Number :
N/A
Price :
Base on your enquiry
Type :
Welded Mesh
Hole Shape :
Rectangle
Material :
Galvanized Iron Wire
Wire Gauge :
0.5mm--2.0mm
Color :
Silver
Mesh size :
60x80 80x100 80x120 100x120
Length :
10-200m
Application :
Construction Wire Mesh
Description

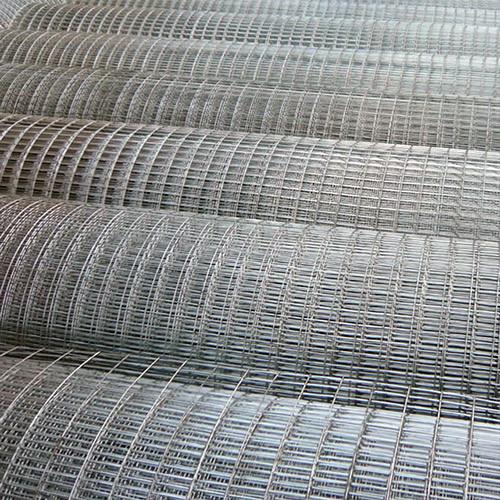

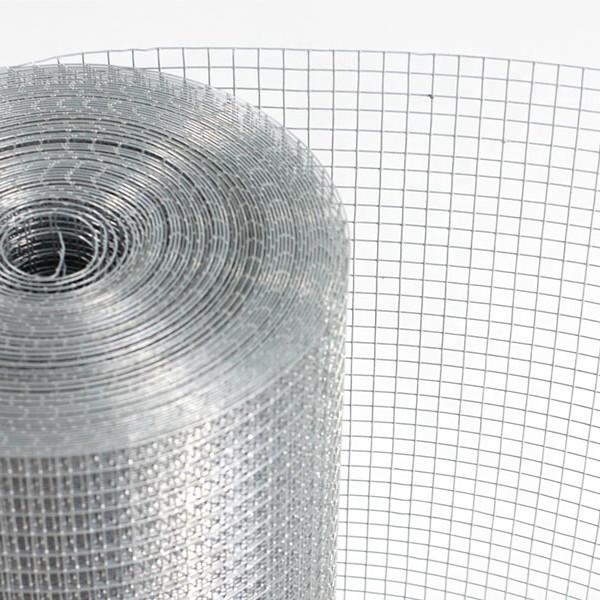

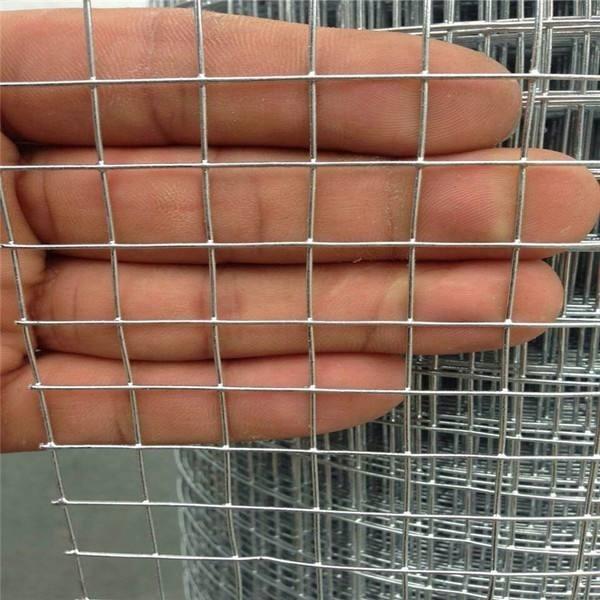

Electro Galvanized Welded Wire Mesh for Construction Industry

Description:

Electro Galvanized welded wire divides into Electro Galvanized Before Welded and Electro Galvanized After Welded wire mesh .The adoption plats the zinc carft after welding which made from high-quality iron wire by automatic equipment.The products surface are smooth ,with well-proportioned meshes,strong welded points and bright luster.Compared with general iron wire mesh,it is better in respects ofanti-corrostive and anti-corrostive and anti-rust.

Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry


Weaving and Stype:


Electro Galvanized after welding ,Electro Galvanized before welding

Specification:

Mesh Size Wire Gauge Diameter
In MM In Inch BWG No. MM
6.4mm 1/4Inch BWG24-22 0.56mm- 0.71mm
9.5mm 3/8Inch BWG23-19 0.64mm - 1.07mm
12.7mm 1/2Inch BWG22-16 0.71mm - 1.65mm
15.9mm 5/8Inch BWG21-16 0.81mm - 1.65mm
19.1mm 3/4Inch BWG21-16 0.81mm - 1.65mm
25.4x 12.7mm 1 x 1/2Inch BWG21-16 0.81mm - 1.65mm
25.4mm 1Inch BWG21-14 0.81mm - 2.11mm
38.1mm 1 1/2Inch BWG19-14 1.07mm - 2.11mm
25.4x 50.8mm 1 x 2Inch BWG17-14 1.47mm - 2.11mm
50.8mm 2Inch BWG16-12 1.65mm - 2.77mm
50.8mm to 305mm 2 to 12Inch At Request


Characters:


Strong welded points and bright luster .The mesh doesnt come loose even if cut in parts or being exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust .


Usage:


They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, etc.
Silver Color Electro Galvanized Welded Wire Mesh For Construction Industry
