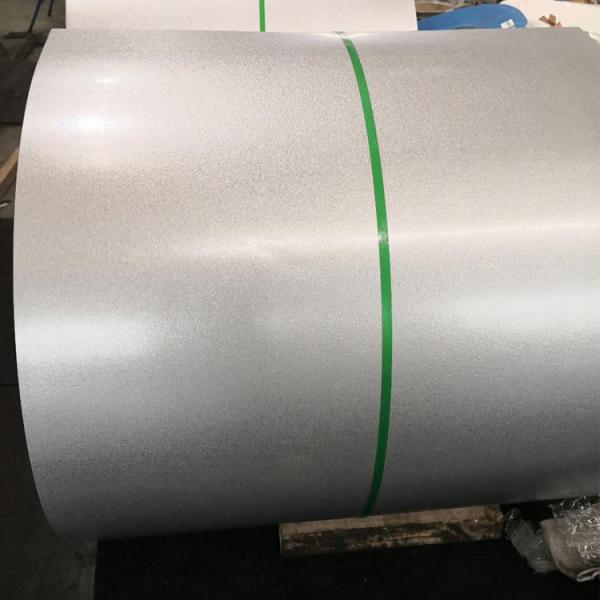

0.20x914mm 55% ALU GL Steel Coil For Construction
0.20x914mm 55% ALU GL Steel Coil For Construction
0.20x914mm 55% ALU GL Steel Coil For Construction
0.20x914mm 55% ALU GL Steel Coil For Construction
0.20x914mm 55% ALU GL Steel Coil For Construction
0.20x914mm 55% ALU GL Steel Coil For Construction
0.20x914mm 55% ALU GL Steel Coil For Construction
0.20x914mm 55% ALU GL Steel Coil For Construction
Specifications
Brand Name :
SUNRISE
Model Number :
0.20X914
Certification :
SNI
Place of Origin :
China Mainland
MOQ :
50 Tons
Price :
According to Latest Market Price and Exact Specification
Payment Terms :
L/C, T/T
Supply Ability :
10000 ton monthly
Delivery Time :
25 Days
Packaging Details :
3 layers of packing, inside is craft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve
Standard :
JIS G3312 、 EN10142 、 ASTM A653M
Grade :
G550 ， G300
Technique :
Cold Rolled, Alu-zinc coated
Type :
Steel Coil
Application :
Corrugated Roof
Surface Treatment :
Anti-Finger Print / Chromated
Coil Weight :
3 to 8 Tons
AZ Coating :
40 Grams/m2
Thickness :
0.2mm
Width :
914mm
Thickness Tolerance :
+/-0.015MM
Width Tolerance :
-0/+3mm
Description

0.20x914 55% ALU GL Steel Coil Used for Construction

Product Description:

Main steel grades: DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,S220GD+Z,
S250GD+Z,S280GD+Z,S320GD+Z,SGCC,SGHC,
SGCD1,SGCD2,SGCD3,SGC 340,SGC 400.
Steel standard: EN 10142,EN 10147,EN 10292,JIS G3302,ASTM A653/A653M,Q/BQB 420
Main application:Widely used for construction,household appliance,automobile,light industry,etc.
Rolling range: Thickness*Width*Length 0.12-2.0mm*50-1500mm*as per request
Surface Treatment: passivation/fat liquoring/stop-off lacquer/parkerising/no processing
Galvanized type:Hot Dipped Galvanizing/Electro galvanized
Certificate:ISO/SGS/IBR/ROHS/BV and so on
AZ Coating:20-180g/m2 (both sides)

Production Process:
Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel

AZ Content:
JISG3302 Z12 Z18 Z22 Z25 Z27 Z35 Z43 Z50 Z60
Zinc(g/m2) 120 180 220 250 270 350 430 500 600
ASTMA525 A40 A60 G60 G90 G115 G140 G165 G185 G210
Zinc(g/m2) 122 183 183 275 351 427 503 564 640
DIN1716 100 200 275 350 450 600
Zinc(g/m2) 100 200 275 350 450 600

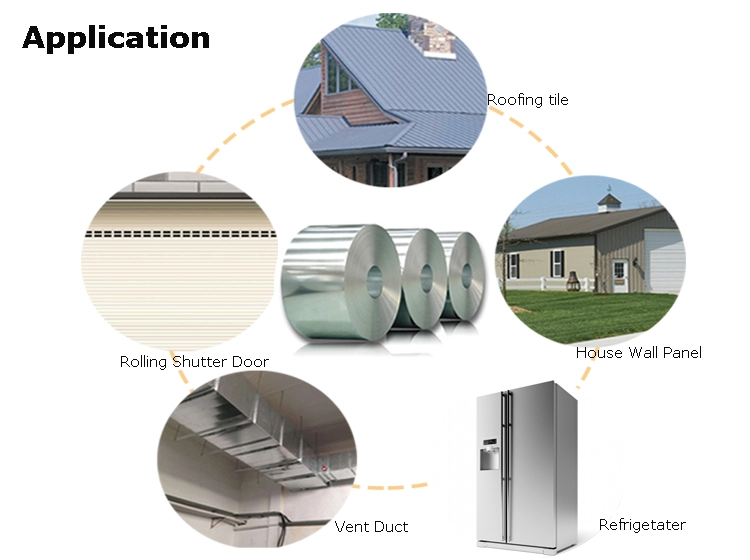

Application:Building/corrugated sheet/Roofing/electrical/appliances
