Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard
Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard
Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard
Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard
Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard
Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard
Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard
Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard
Specifications
Brand Name :
SUNRISE
Model Number :
SS
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
2000sqm
Price :
Negotiable
Payment Terms :
TT LC
Supply Ability :
100000MT per Year
Delivery Time :
30-35days
Packaging Details :
Standard seaworthy packing
Standard :
GB
Grade :
Q235,Q345
Dimensions :
Customization
Type :
Light
Surface treatment :
Painting or Hot DIP Galvanize
Application :
Steel structure plant, warehouse, office, brige, etc
Description

Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard

Brief Introduction:

In order to meet all customer’s needs, we can undertake large stadiums, steel structure buildings, large-span steel plant, workshop, warehouse, dormitory, 4S shop, steel structure bridges, Cowshed, poultry house, garage and other single storey steel structure projects. We have rich experience in the construction and installation of steel structures. With professional technical force and supporting facilities, we focus on customer satisfaction, provide perfect construction scheme and after-sales service for your project, and realize the integration project of steel structure.

Characteristics

1. Enviromental friendly

2. Lower cost and maintenance

3. Long using time up to 50 years

4. Stable and earthquake resistance up to 9 grade

5. Fast construction, time saving and labor saving

6. Good appearance

Item Name Workshop Warehouse Prefabricated Steel Structure Building
Steel column and beam Q345B, welded H section steel with two coats of red lead paint
Cran beam Q345B, welded H section steel with two coats of red lead paint
Purlin Q235, galvanizd C section steel with two coats of red lead paint
Roof Cladding V-760 0.5mm dip aluminum-zinc steel sheet + Glasswool Blanket with Aluminum-foil paper+ Wire Mesh
Skylight sheet V-760, 1.2mm / V-900, 1.0mm / V-780, 1.2mm
Exterior wall sheet V-780, 0.5mm dip aluminum-zinc steel sheet
Window Aluminum alloy window
Door EPS sandwich panel sliding door
Service Design, Fabrication and Installation
We can make quotation according to customer's drawing or requirement; (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation.
Design software: Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc
Packing According to customer's requirement
Load into 40/20GP,40HQ or 40OT

Corrugated Sheet

Single color corrugated steel sheet, widely used in large public buildings, public plants, prefab houses, walls and roofs of integrated housing, ect.

Main Parameters
Material Q235
Surface Treatment Coated
Length Customer's requirement
Width 600mm-1250mm
Thickness 0.12-1.2mm
Application Warehouse, prefab house, poultry house, etc.

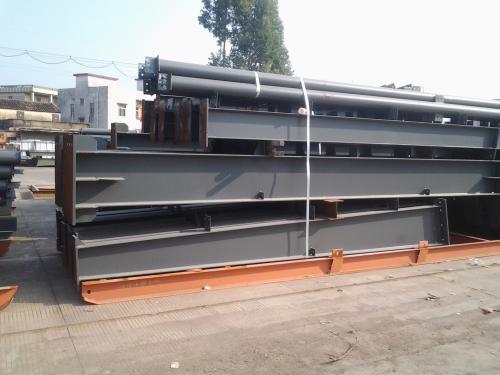

Steel Columns

Adopted Q345 (S355JR) or Q235 (S235JR) steel. They are widely used to build large and medium-sized industrial plants, large-span public buildings, high-rise houses, light weight prefab houses, work platforms, bridges and trestle ect.

Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard

Steel Beams

They adopted high quality Q345 (S355JR) or Q235 (S235JR) steel, are widely used in the crane beams and work platform beams for plant, floor beams of multi-story buildings, purlin in roof structures, etc.

Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard

Steel Purlin

C or Z Purlin, size from C120~C320, Z100~Z300. Hot-dip galvanized surface.

Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard

Process Flow:

1. Cut the steel to strips

2. Assembling

3. Welding

4. Correction

5. Shot blasting and rust remove

Workshop Warehouse Prefabricated Steel Buildings Structure Design GB Standard
