Mild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire Proof
Mild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire Proof
Mild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire Proof
Mild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire Proof
Mild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire Proof
Mild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire Proof
Mild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire Proof
Mild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire Proof
Specifications
Brand Name :
SUNRISE
Model Number :
UNEQUAL
Certification :
ISO 9001-2008
Place of Origin :
Tian Jin, He Bei of China
MOQ :
50 Tons
Price :
According to the market price
Supply Ability :
200,000 Tons
Delivery Time :
35 Days
Packaging Details :
2 layers of Plastic film+1 layer anti-water paper+steel sheet+4 steel strip
Payment Terms :
20% deposit, balanced by T/T before shipment, or by 100% LC at sight
Standard :
BS , GB , ASTM , JIS
Type :
Unequal L Angle Steel
Grade :
Q195 , Q235 , Q345 , Q420 , A36 , SS400
Dimensions :
from 75 x 50 x6 mm to 150 x 100 x 12 mm
Length :
5800MM ~ 12000MM
Technique :
Cold Bend Profile or Hot Rolled
Surface :
Painted , Black , Hot Dip Galvanized
Application :
Machinery , Agriculture
Description

Hot Rolled Galvanized (HDG) Unequal Steel Angle , Mild Steel Unequal Steel Angle Bar , Unequal Steel Angle Iron (Manufacturer)

Introduction:

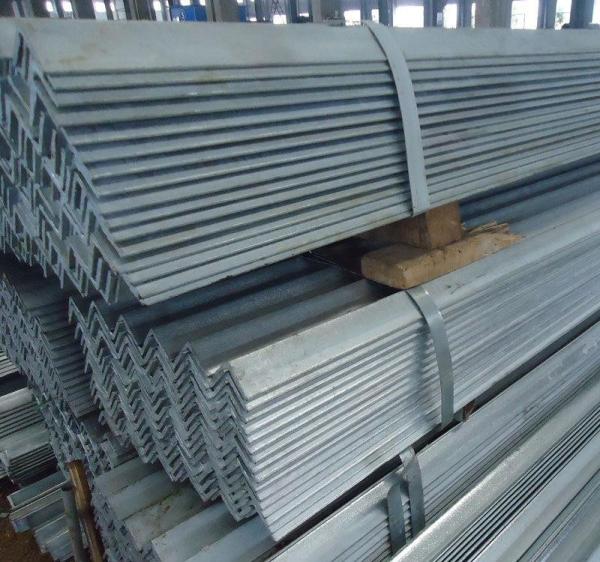

Hot-dip galvanized steel angles produced from hot rolled steel angles or cold bend / formed steel angles with the hot dip galvanizing process . Steel angles have two shapes , one is equal angles and another one is un-equal angles , The steel angles with the zinc coating will have better corrosion resistance and longer service life . Normally , hot dip galvanized steel angles are widely used in the industry of building , construction , steel tower fabrication, civil and agricultural machines making.

Specification:

Size (mm) Weight (kg/m) Size (mm) Weight (kg/m)
75x50x6 5.67 125x75x10 15.00
75x50x8 7.35 125x75x12 17.80
100x75x6 8.04 150x75x8 15.90
100x75x7 9.32 150x75x10 19.50
100x75x8 10.6 150x90x8 13.12
100x75x9 11.80 150x90x10 16.40
100x75x10 13.00 150x90x12 18.20
100x75x12 15.40 150x90x15 21.50
125x75x7 10.70 150x100x8 21.20
125x75x8 12.20 150x100x10 26.00
125x75x9 13.60 150x100x12 30.80

Products Advantages:

1. Convenient in construction and save much time and labor.

2. Light, good quality and reasonable price.

3. The shape and specification can be made by customer's requirement.

4. High mechanical strength.

5. Attractive in appearance and reasonable designs.

Mild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire ProofMild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire ProofMild Angle Iron Bar , Hot Rolled Unequal Steel Angle Fire Proof
