6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance
6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance
6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance
6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance
6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance
6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance
6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance
6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance
Specifications
Brand Name :
SUNRISE
Model Number :
AS 3679.1 (1996)
Certification :
SGS , ISO 9001-2008
Place of Origin :
Tianjin
MOQ :
50 Tons
Price :
FOB USD 630-750
Supply Ability :
20,000 Tons
Delivery Time :
20days
Packaging Details :
Loose Package, Bundle By Bundle
Payment Terms :
20% deposit, balanced by T/T before shipment, or by 100% LC at sight
Standard :
AS 3679.1 (1996)
Market :
Singapore, Australia, South America, Asia, Africa
Payment :
T/T , L/C
Trade Term :
FOB, CFR, CIF
Description

Hot Rolled Universal Beams and Columns , H beams , AS 3679.1 (1996)

Introduction:

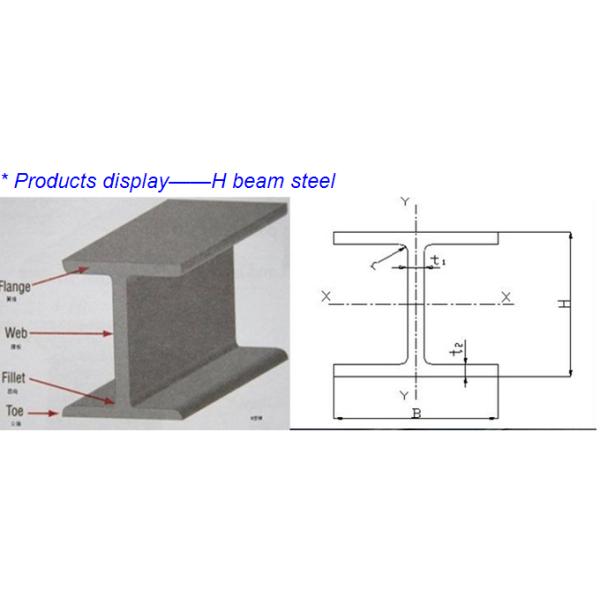

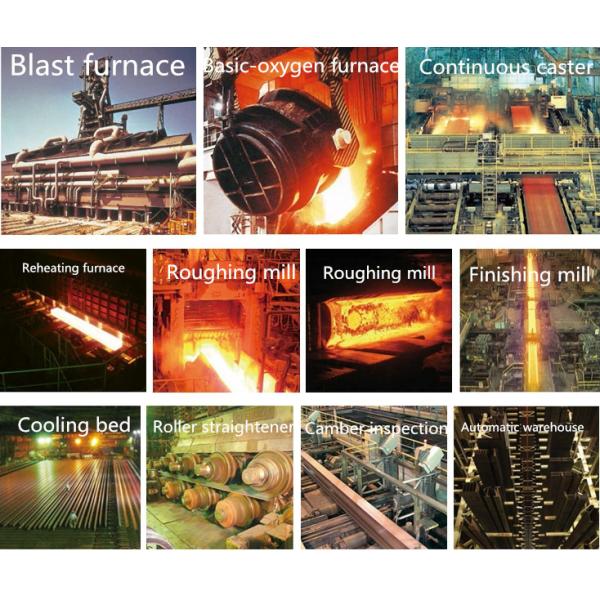

H-Beam is another product coming out from our hot rolled mill.It is the structural steel profile shaped like an H in section.The horizontal elements of the "I" are flanges,while the vertical element is the web.The web resists shear forces while the flanges resist most of the bending moment experienced by the beam.Beam theory shows that the H-shaped sections is a very efficient form for carrying both bending and shear loads in the plane of the web.

Specification:

Standard: AS 3679.1 (1996)

Grade: Grade 250 , Grade 300 , Grade350

Web Thickness: 4.5mm ~ 50mm

Web Width : 50 ~ 600 mm

Flange Thickness : 4.5 ~ 50mm

Flange Width: 45mm ~ 600mm

Length : 6 ~ 12m

6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance

Chemical Composition

Chemical Composition %
C Si Mn P S B Cu Cr
X 100 X 1000 X 1000
17 17 40 25 14 12

Mechanical Properties

Material

Yield Strength

Mpa

Tensile

Mpa

Elongation

%

 Charpy V-noth. Temp 20℃ Dimensions & Tolerances
AS 3679.1 (1996) ≤12mm 12-40 ≥40mm

AS 3679.1

(1996)
Grade 250 260 250 230 420 22% 27J
Grade 300 300 300 300 430 22% 27J
Grade 350 360 340 330 480 20% 27J

Application:

H-Beams are widely used in the construction industry and are available in a variety of standard sizes. H-Beam may be used both as beams and as columns.

6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance6 ~ 12 m Length Steel I Beam , I Beam Steel AS 3679.1 Thermal Resistance
