Prepainted Galvanised Steel Coil , Cold Rolled Steel Sheet In Coil
Prepainted Galvanised Steel Coil , Cold Rolled Steel Sheet In Coil
Prepainted Galvanised Steel Coil , Cold Rolled Steel Sheet In Coil
Prepainted Galvanised Steel Coil , Cold Rolled Steel Sheet In Coil
Prepainted Galvanised Steel Coil , Cold Rolled Steel Sheet In Coil
Prepainted Galvanised Steel Coil , Cold Rolled Steel Sheet In Coil
Specifications
Brand Name :
SUNRISE
Model Number :
0.15 ~ 4.0 MM
Certification :
ISO 9001-2008
Place of Origin :
Tangshan, China
MOQ :
100 Tons
Price :
USD 580-620 FOB
Supply Ability :
100,000 Tons Monthly
Delivery Time :
35 Days
Packaging Details :
With Anti-water Paper, Steel Sheet Cover, then Fixed With Steel Belt
Payment Terms :
20% deposit, balanced by T/T before shipment, or by 100% LC at sight
Grade :
Q195, Q215, Q235, Q275, SPCC, SPCD
Thickness :
min 0.15 mm , max 4.0 mm
Type :
In coil
Description

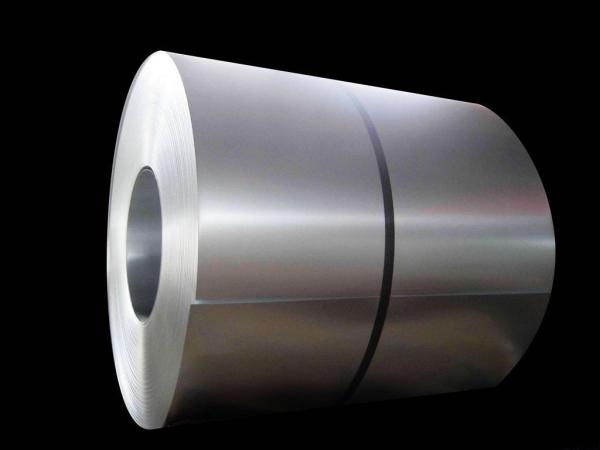

Prime Quality Cold Rolled Sheet Coils , 0.15 ~ 4.0 mm, 500 ~ 2000mm , base plate for galvanized steel and color coated steel, etc

Introduction:

Cold-rolled coil is substrate of hot-rolled coil , produce under recrystallization temperature in condition of room temperature. Cold-rolled coil is not heated in the production process , so it don't exist the defect of pitting and iron oxide

which often exist in hot-rolled. It has good surface quality, highly polished.

On the one hand , it is the substrate of galvanized steel coil and color coated steel coil ,

On the other hand , it has precise size , uniform thickness, excellent surface quality ,

and offer good machinability , high strength , low yield limit and good stamping properties

Specification

Base material Hot rolled steel coil
Thickness 0.15 – 4.0 mm
Width Below 2000 mm (according to your need)
Coil Weight 3-15tons , or according to Buyer’s requirement
Standard AISI , ASTM , BS , DIN , GB , JIS
Model Number Q195 , Q215 , Q235 , Q275 , SPCC , SPCD
Coil ID 508 / 610
Technique Cold Rolled
Shipment time within 25 - 30 workdays

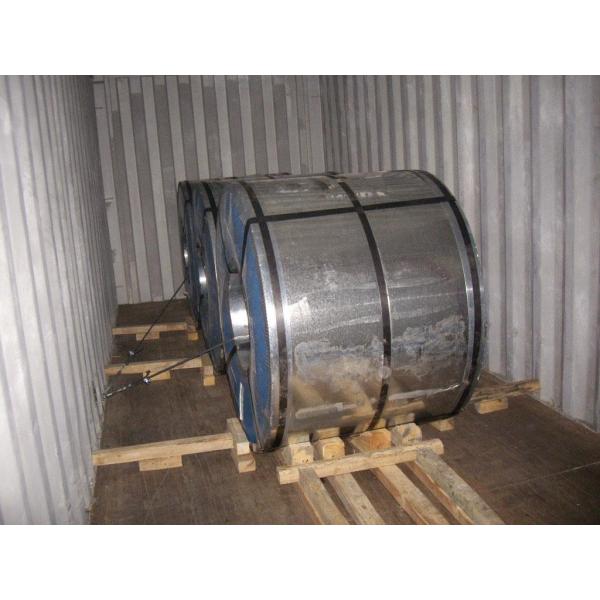

Export package waterproof paper, galvanized steel covered and steel strip packed , or as customer’s request.
Payment T / T , L / C at sight

Chemical Components

Grade Chemical Components
C Mn P S Alt
SPCC ≤0.12 ≤0.50 ≤0.035 ≤0.025 ≥0.020
SPCD ≤0.10 ≤0.45 ≤0.030 ≤0.025 ≥0.020
SPCE ≤0.08 ≤0.40 ≤0.025 ≤0.020 ≥0.020

Mechanical Properties

1. Yield Strength: ≤320MPa

2. Tensile Strength: ≤370MPa

3. Elongation (L=50mm, b=25mm) When:

(1) Nominal Thickness <0.25mm: 30%

(2) Nominal Thickness 0.25mm-<0.40: 32%

(3) Nominal Thickness 0.40-<0.60mm: 34%

(4) Nominal Thickness 0.60-<1.0mm: 36%

(5) Nominal Thickness 1.0-<1.6mm: 37%

(6) Nominal Thickness >1.6mm: 38%

Application

1. Zinc-coating base plates and cold-rolled annealing base plates
2. Construction and furniture
3. Automotive manufacturing, electric products, vehicles, aviation, precision meters, food cans, et
