ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B177 C70600
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
500KGS
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
According To Client's Request
Delivery Time :
10-90 Days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Support Plate :
ASTM B177 C70600
Size :
Various sizes available
Thickness :
customizable
Heat Exchanger Type :
Shell and Tube
Application :
Industrial
Dimension :
ASTM, ANSI, API, JIS, ASME, and DIN etc.
Description

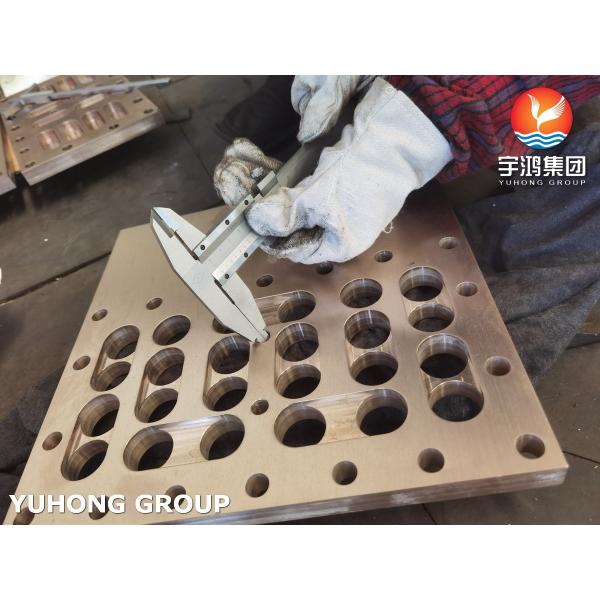

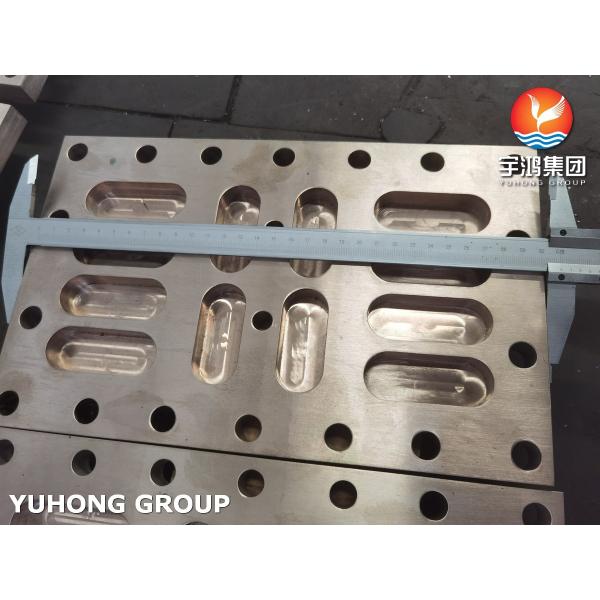

ASTM B177 C70600 Square Tubesheet For Heat Exchangers

C70600 square tubesheet refers to a square tubesheet made from this specific copper-nickel alloy. A tubesheet is a perforated sheet or welded structure used to separate two fluid streams while allowing heat transfer between them. It usually has holes drilled or punched to accommodate the tubes of a heat exchanger.

C70600 is a copper-nickel alloy. It is often referred to as 90/10 (copper/nickel) copper-nickel. Tubesheets made from it have excellent corrosion resistance (especially in saltwater environments) and are often used in marine and industrial applications.

Copper Nickel 90/10 Chequered Plate Equivalent Grade

STANDARD WERKSTOFF NR. UNS
Cu-Ni 90/10 2.0872 C70600

Cu-Ni 90/10 Cold Rolled Sheets Chemical Composition

Grade Cu Mn Pb Fe Zn Ni
Cupro Nickel 90/10 88.6 min 1.0 max .05 max 1.8 max 1 max 9-11 max

Cupro Nickel 90/10 Polished Cold Drawn Plates Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Cu-Ni 90/10 8.1 g/cm3 1443 °C (2430 °F) Psi -80,000, MPa -551 Psi - 35,000, MPa - 241 30 %

Applications:

Shipbuilding
Power plants
Desalination plants
HVAC systems
