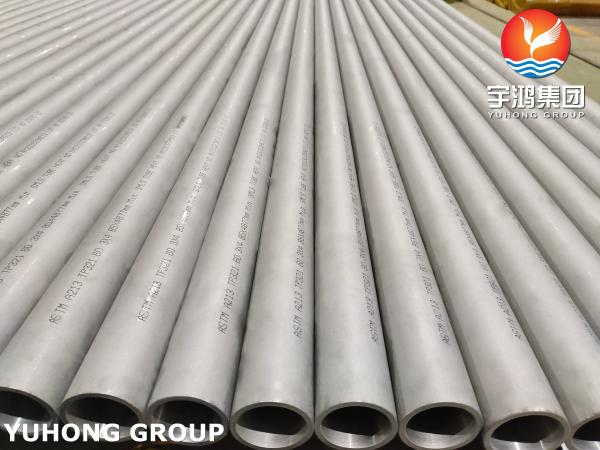

ASTM A213 / ASME SA213 TP321 Stainless Steel Seamless Heat Exchanger Tube
ASTM A213 / ASME SA213 TP321 Stainless Steel Seamless Heat Exchanger Tube
ASTM A213 / ASME SA213 TP321 Stainless Steel Seamless Heat Exchanger Tube
ASTM A213 / ASME SA213 TP321 Stainless Steel Seamless Heat Exchanger Tube
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A213 TP321 Stainless Steel Seamless Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Product Name :
stainless steel seamless tube
Specification :
ASTM A213 / ASME A213
OD :
1/4", 3/8", 1/2", 5/8" ... 4 1/2"
WT :
BWG 25, 22, 20 18 ... 10
Length :
Single Random, Double Random & Cut Length
End :
Plain End, Beveled End
Type :
Seamless
High Light :
ASTM A213 TP321 Stainless Steel Seamless Tube, ASTM A213 Stainless Steel Seamless Tube, ASTM A213 Heat Exchange tube
Description

ASTM A213 TP321 S32100 STAINLESS STEEL SEAMLESS HEAT EXCHANGER TUBING


Stainless Steel 321 contains titanium (Ti) ≥5× carbon content to prevent chromium carbide precipitation during welding or high-temperature exposure (450–850°C). This stabilization ensures resistance to intergranular corrosion even after prolonged thermal cycling, a critical feature for heat exchangers in refineries and power plants1013. Unlike non-stabilized grades like TP304, TP321 retains corrosion resistance in sensitization-prone environments, making it ideal for post-weld applications without requiring heat treatment


Equivalent Grade of ASTM A213 TP321/TP321G Stainless Steel Seamless Tubing

GradeUNS NoOld BritishEuronormSwedish SSJapanese JIS
BSEnNoName
321S32100321S3158B, 58C1.4541X6CrNiTi18-102337SUS 321
321HS32109321S51-1.4878X10CrNiTi18-10-SUS 321H


Mechanical & Physical Properties of ASTM A213 TP321/TP321G Stainless Steel Seamless Tubing

Density8.0 g/cm3
Melting Point1454 °C (2650 °F)
Tensile StrengthPsi – 75000 , MPa – 515
Yield Strength (0.2%Offset)Psi – 30000 , MPa – 205
Elongation35 %



Chemical Composition of ASTM A213 TP321/TP321G Stainless Steel Seamless Tubing

SS 321SS 321H
Ni9 – 129 – 12
Cr17 – 1917 – 19
C0.08 max0.04 – 0.10
N0.10 max
FeBalance
Mn2 max2 max
Si0.75 max0.75 max
S0.03 max0.03 max
P0.045 max0.045 max
Ti5xC min
0.60% max		4xC min
0.60% max


Key Characteristics

  • Corrosion Resistance: Excellent resistance to oxidation and corrosion, especially in environments with exposure to organic and inorganic acids.
  • High-Temperature Strength: Ideal for use in environments up to 900°C due to its superior creep and stress rupture properties.
  • Titanium Stabilization: Prevents carbide precipitation and intergranular corrosion, making it superior to TP304 in high-temperature applications.
  • Weldability: Good weldability without the need for post-weld heat treatment in most cases.


Advantages Over Other Stainless Steel Grades

  • Better High-Temperature Performance than TP304 and TP316 due to its titanium stabilization.
  • Resistant to Sensitization during welding, reducing the risk of intergranular corrosion.
  • Comparable Corrosion Resistance to TP304 but with enhanced durability in extreme environments


Application

Due to its superior high-temperature performance and corrosion resistance, TP321 seamless tubes are widely used in industries such as:

  • Aerospace – High-temperature exhaust systems, jet engine components.
  • Chemical Processing – Acidic and caustic environments requiring long-term corrosion resistance.
  • Petroleum & Refining – Heat exchangers, process piping, and pressure vessels.
  • Power Plants – Superheater tubes, reheater tubes, and boiler components.
  • Food Processing – Used in equipment where resistance to organic acids is needed.
