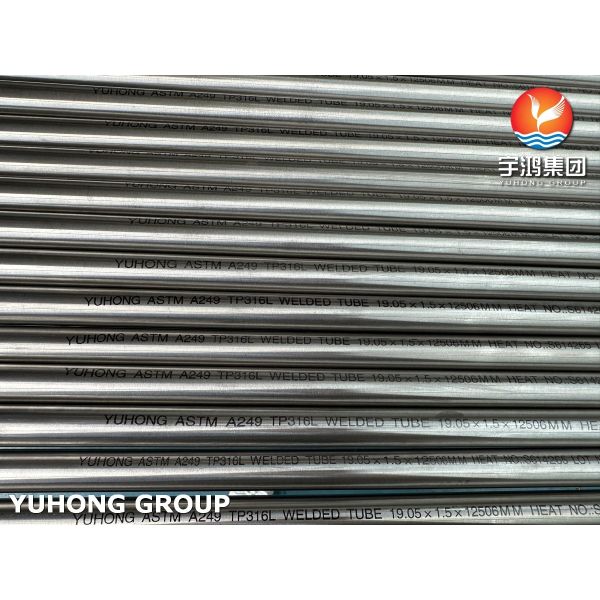

ASTM A249 TP316L Welded Stainless Steel Tubes For Heat Exchanger
ASTM A249 TP316L Welded Stainless Steel Tubes For Heat Exchanger
ASTM A249 TP316L Welded Stainless Steel Tubes For Heat Exchanger
ASTM A249 TP316L Welded Stainless Steel Tubes For Heat Exchanger
ASTM A249 TP316L Welded Stainless Steel Tubes For Heat Exchanger
ASTM A249 TP316L Welded Stainless Steel Tubes For Heat Exchanger
ASTM A249 TP316L Welded Stainless Steel Tubes For Heat Exchanger
ASTM A249 TP316L Welded Stainless Steel Tubes For Heat Exchanger
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A249 TP316L
Certification :
TUV, API, PED, ISO TUV、API、PED、ISO
Place of Origin :
CHINA
MOQ :
300kg
Price :
NEGOTIABLE
Payment Terms :
L/C,T/T
Supply Ability :
10 Tons Per Month
Delivery Time :
Depends on quantity
Packaging Details :
WOODEN BOX/ WOVEN BAG
Material Grade :
ASTM A249 TP316L / UNS S31603
Outer Diameter (OD) :
6mm – 1200mm (Customizable)
Wall Thickness :
0.5mm – 25mm (ASME B36.19 Compliant)
Meta Keywords :
Welded Austenitic Stainless Steel Tubes, Chloride Resistant Pipes, ASME SA249 Supplier
Application Tags :
Heat Exchanger Tubes, FGD Systems, Marine Engineering, Bio-Pharmaceutical Piping
Surface Finish :
Pickled & Passivated (ASTM A380) / Electropolished (Ra ≤0.5μm)
Description



1. Brief introduction



ASTM A249 TP316L(UNS S31603) is an ultra-low-carbon austenitic stainless steel welded tube. Adding molybdenum (2.0-3.0%) significantly improves the resistance to chloride corrosion and pitting corrosion. Its carbon content is ≤0.03%, effectively avoiding the precipitation of carbides in the heat-affected zone of welding and ensuring the welded joint's intergranular corrosion resistance. It is widely used in pressure-bearing equipment in high-temperature and corrosive environments.



2. Chemical composition of ASTM A249 TP316L tube (wt%)



Element Range
C ≤0.030
Cr 16.0-18.0
Ni 10.0-14.0
Mo 2.00-3.00
Mn ≤2.00
Si ≤1.00
P ≤0.045
S ≤0.030
Fe margin



3. Comparison of equivalent grades


  • EN: 1.4404 / X2CrNiMo17-12-2


  • UNS: S31603


  • JIS: SUS 316L


  • GB: 022Cr17Ni14Mo2


4. Mechanical properties (solution annealed state)



Parameters Numeric


Tensile strength (Rm)

 ≥485 MPa


Yield strength (Rp0.2)

 ≥170 MPa


Elongation (50mm gauge length)

 ≥35%


Hardness (HB)


 ≤217



5. Application areas of ASTM A249 TP316L Welded Stainless Steel Tube


  • Petrochemical energy: refinery heat exchanger tubes, LNG cryogenic pipelines.


  • Pharmaceutical equipment: bioreactors, clean piping systems (ASME BPE standard).


  • Marine engineering: desalination units, marine condensers.


  • Food processing: pasteurization pipelines, fermentation tanks.


  • Environmental protection equipment: flue gas desulfurization (FGD) systems, wastewater treatment heat recovery units.



6. Additional Notes


  • Testing standards: 100% eddy current testing (ASTM E426), water pressure/air pressure test (optional).


  • Surface treatment: pickling and passivation (ASTM A380), electrolytic polishing (Ra≤0.5μm).


  • Supply specifications: outer diameter 6-1200mm, wall thickness 0.5-25mm, support customized U-shaped/coil.


ASTM A249 TP316L Welded Stainless Steel Tubes For Heat Exchanger
