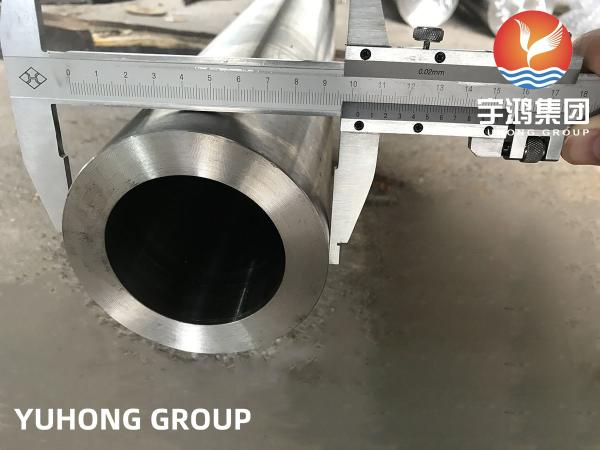

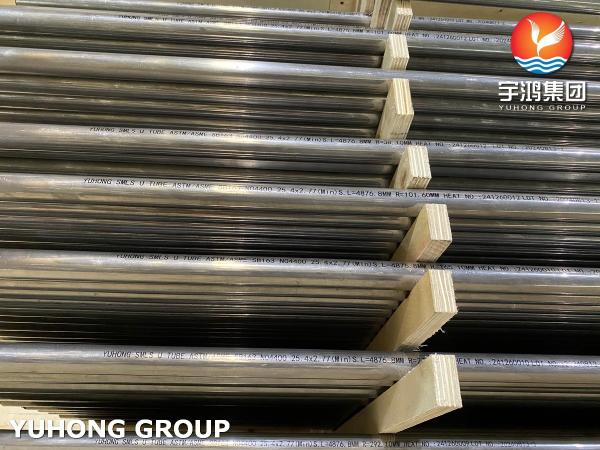

ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe
ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe
ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe
ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe
ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe
ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe
ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe
ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe
Specifications
Brand Name :
YUHONG SPECIAL STEEL
Model Number :
ASTM B983 Incoloy 925
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1PC
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Delivery Time :
20-80
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Supply Ability :
According To Client's Request
Standard :
ASTM B983
Material :
Inconel 925
Size :
Customized
Shape :
Round
Surface :
Bright
Ndt :
ET, UT, HT, PT,
Description

ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe



ASTM B983 Incoloy 925 (N09925 / 2.4858) seamless tubes are designed for extreme service conditions, providing unmatched performance in corrosive and high stress applications.
ASTM B983 specifies requirements for seamless nickel-iron-chromium (Ni-Fe-Cr) alloy tubes for use in high temperature corrosive environments. The standard covers chemical composition, mechanical properties, dimensions, tolerances, heat treatments, and testing protocols (hydrostatic pressure, nondestructive testing).
Incoloy 925 is a precipitation hardened nickel-iron-chromium alloy with additions of molybdenum, copper, titanium, and aluminum. It is designed for extreme environments where corrosion resistance and high strength are required.

ASTM B983 Incoloy 925 Alloy925 UNS N09925 Seamless Nickel Alloy Steel Pipe

Chemical Composition Requirement

The Chemical Composition of Incoloy 925, %
Nickel42.0-46.0
Chromium19.5-22.5
Iron≥22.0
Molybdenum2.5-3.5
Copper1.5-3.0
Titanium1.9-2.4
Alumium0.1-0.5
Manganese≤1.00
Silicon≤0.50
Niobium≤0.50
Carbon≤0.03
Sulfur≤0.30





Mechanical Properties of Incoloy 925

Tensile Strength, min.Yield Strength, min.Elongation, min.Hardness, min.
MpaksiMpaksi%HRC
12101768151182436.5





Physical Properties of Incoloy 925

DensityMelting RangeSpecific HeatElectrical Resistivity
g/cm3°F°CJ/kg.kBtu/lb. °FµΩ·m
8.082392-24901311-13664350.1041166

Application


Oil & Gas: Downhole tubing, valves and components for sour gas wells.

Chemical Processing: Reactors, heat exchangers and piping in sour/chloride environments.

Power Generation: High temperature steam and exhaust systems.

Marine: Seawater handling systems and offshore platforms.

Material Testing:

  • Mechanical Testing Such as Tensile of Area

  • Hardness Test

  • Chemical Analysis – Spectro Analysis

  • Positive Material Identification – PMI Testing

  • Flattening Test

  • Micro and MacroTest

  • Pitting Resistance Test

  • Flaring Test

  • Intergranular Corrosion (IGC) Test




ASTM B983 Incoloy 925 N09925 2.4858 Seamless Nickel Alloy Steel Pipe
