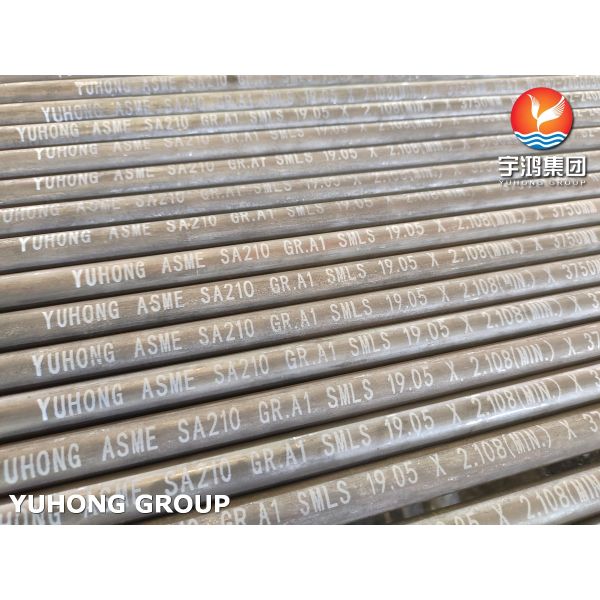

ASME SA210 A1 Carbon Steel Seamless Boiler Tube For Condenser And Economizers
ASME SA210 A1 Carbon Steel Seamless Boiler Tube For Condenser And Economizers
ASME SA210 A1 Carbon Steel Seamless Boiler Tube For Condenser And Economizers
ASME SA210 A1 Carbon Steel Seamless Boiler Tube For Condenser And Economizers
ASME SA210 A1 Carbon Steel Seamless Boiler Tube For Condenser And Economizers
ASME SA210 A1 Carbon Steel Seamless Boiler Tube For Condenser And Economizers
ASME SA210 A1 Carbon Steel Seamless Boiler Tube For Condenser And Economizers
ASME SA210 A1 Carbon Steel Seamless Boiler Tube For Condenser And Economizers
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA210 A1 Seamless Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
WOODEN CASE WITH PLASTIC CAP
Tube Standard :
A106, A210, A179, A192
NDT :
Eddy Current Test, Hydrostatic Test, UT, IGC, Grain Size Test , ...
Type :
Straight , U bend , Snake Bend, Coil form
Surface :
Bright annealed, Polished, Pickled
End type :
Bevled End, Plain End, Thread End
Welding Line Type :
Seamless, ERW, Spiral Welded
Description

1. Material Standard & Scope

  • Standard: ASTM A210/A210M (ASME SA210 equivalent).

  • Scope: Seamless tubes for fired boilers, superheaters, and heat exchangers operating at moderate to high temperatures (up to ~450°C / 842°F).

2. Chemical Composition (Weight %)

Element Min (%) Max (%)
Carbon (C) - 0.27
Manganese (Mn) - 0.93
Phosphorus (P) - 0.035
Sulfur (S) - 0.035
Silicon (Si) 0.10 0.20
Residuals Cu ≤ 0.40%, Ni ≤ 0.40%, Cr ≤ 0.40%, Mo ≤ 0.15%

3. Mechanical Properties (Room Temperature)

Property Value (Metric) Value (Imperial)
Tensile Strength ≥415 MPa ≥60,200 psi
Yield Strength ≥255 MPa ≥37,000 psi
Elongation ≥30% (50mm gauge) ≥30% (2" gauge)
Hardness ≤143 HBW ≤143 Brinell

4. Dimensional Specifications

  • Outside Diameter (OD): 12.7 mm (0.5") to 114.3 mm (4.5") (standard). Custom sizes up to 127 mm (5") available.

  • Wall Thickness: 1.65 mm (0.065") to 12.7 mm (0.5"), per ASME B36.10M.

  • Length: Random (6-12m) or fixed lengths; ends plain, beveled, or threaded.

  • Tolerances:

    • OD: ±0.8% (hot-finished), ±0.5% (cold-drawn).

    • Wall Thickness: +20%/-0% (ASME B36.10M).

5. Key Applications

  • Power Generation: Water walls, risers, and downcomers in coal-fired boilers.

  • Heat Exchangers: Shell-and-tube configurations for steam/water systems.

  • Industrial Heating: Convection banks in process heaters.

  • Retrofits: Replacement tubes for aging infrastructure.

6. Testing & Certification

  • Mandatory Tests:

    • Hydrostatic Test: Pressurized to 70 bar (1,015 psi) or per customer specs.

    • NDT: Ultrasonic (UT) or eddy current (ET) testing for defects.

    • Flattening Test: For cold-drawn tubes to check ductility.

  • Certification: Mill Test Certificate (EN 10204/3.1 or 3.2) with heat analysis and mechanical test results.
