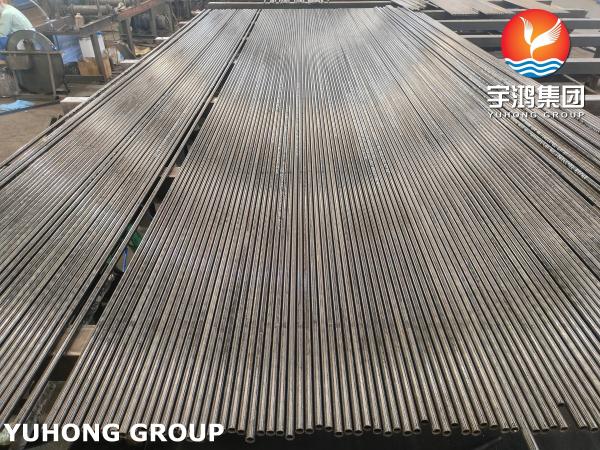

TPI Approved ASTM A213 T5 Alloy Steel Seamless Tube For Boiler

The ASTM A213 T5 Alloy Steel Seamless Tube is a premium-grade alloy steel product manufactured for use in high-temperature and high-pressure environments. It conforms to the specifications of ASTM A213/A213M, a globally recognized standard for seamless ferritic and austenitic alloy steel boiler, superheater, and heat-exchanger tubes. This tubing is widely used in power plants, petrochemical industries, and other critical applications requiring excellent strength, corrosion resistance, and durability.

Key Features of ASTM A213 T5 Seamless Tube

• Material Composition:

  • The T5 grade is a Cr-Mo alloy steel, containing approximately:
    • Chromium (Cr): 4.00–6.00%
    • Molybdenum (Mo): 0.45–0.65%
    • Carbon (C): ≤ 0.15%
    • Silicon (Si): 0.50% max
    • Manganese (Mn): 0.30–0.60%
  • This composition imparts excellent resistance to high-temperature scaling, oxidation, and corrosion while maintaining mechanical strength.

• Seamless Construction:

  • Manufactured without welds, ensuring uniform structure, superior strength, and the ability to withstand high-pressure applications without failure.

• High-Temperature Resistance:

  • Designed to perform exceptionally well under extreme temperatures, making it suitable for applications such as boilers, superheaters, and heat exchangers.

• Mechanical Properties:

  • Tensile Strength: Minimum 415 MPa (60 ksi)
  • Yield Strength: Minimum 220 MPa (32 ksi)
  • Elongation: Minimum 30% depending on the tube dimensions.
  • Excellent creep strength for long-term use at elevated temperatures.

• Dimensional Tolerances:

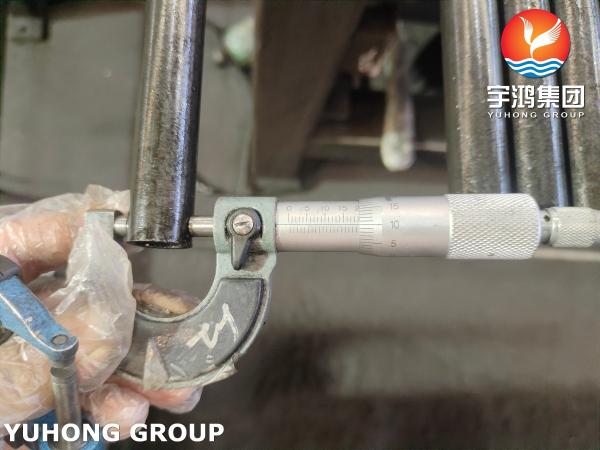

  • Manufactured with precise tolerances for outside diameter (OD), wall thickness, and length, ensuring compatibility with stringent system requirements.

• Corrosion Resistance:

  • The presence of chromium and molybdenum enhances the tube's ability to resist corrosion and scaling in harsh environments, including acidic or oxidizing atmospheres.

Manufacturing Process

The ASTM A213 T5 seamless tubes are produced using advanced manufacturing techniques:

1. Hot Rolling:
   • Steel billets are heated and rolled into seamless tubes, providing a smooth and consistent surface finish.
2. Cold Drawing:
   • Cold working improves dimensional accuracy, surface finish, and mechanical properties.
3. Heat Treatment:
   • Tubes undergo normalizing, annealing, or tempering to enhance strength and toughness while reducing residual stresses.
4. Testing and Inspection:
   • All tubes are subjected to rigorous quality checks, including:
     • Hydrostatic testing
     • Non-destructive testing (NDT)
     • Hardness testing
     • Flattening and flaring tests
     • Chemical and mechanical property verification

Applications

The ASTM A213 T5 seamless tubes are specifically designed for high-temperature and high-pressure environments, making them ideal for the following industries and applications:

1. Power Generation:

   • Used in boilers, superheaters, and heat exchangers to transfer heat efficiently at elevated temperatures and pressures.

2. Petroleum and Petrochemical:

   • Suitable for refining and chemical processing plants where tubes are exposed to corrosive environments and high thermal loads.

3. Chemical Processing:

   • Reliable for transporting and handling high-temperature fluids and gases in chemical plants.

4. Oil and Gas:

   • Commonly used in upstream and downstream operations, including gas processing units and pipelines.

5. Industrial Equipment:

   • Used in manufacturing heat exchangers, condensers, and other thermal systems requiring excellent heat resistance.

Specifications

Below are the key technical specifications for ASTM A213 T5 seamless tubes:

Benefits of ASTM A213 T5 Seamless Tube

1. Exceptional Strength and Durability:
   • Withstand extreme pressure and temperature over long periods.
2. Oxidation and Corrosion Resistance:
   • Performs well in corrosive environments, ensuring long service life.
3. Weldability:
   • Low carbon content enhances weldability, making it easier to integrate into systems.
4. Third-Party Certification:
   • Often inspected and certified by internationally recognized agencies for quality assurance.
5. Customizable Dimensions:
   • Availability in various sizes and thicknesses to meet diverse application needs.
