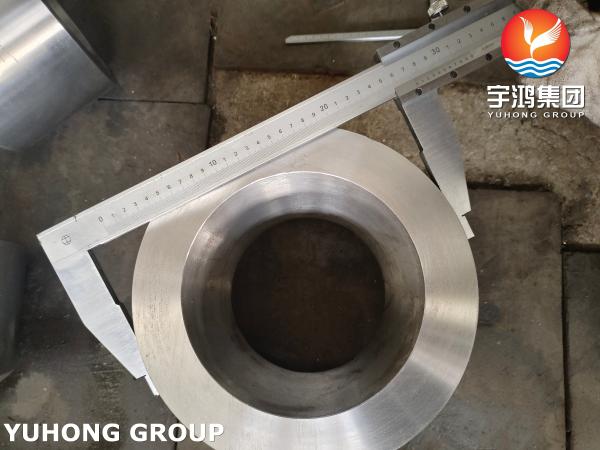

ASME SA105N Carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems
ASME SA105N Carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems
ASME SA105N Carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems
ASME SA105N Carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems
ASME SA105N Carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems
ASME SA105N Carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems
ASME SA105N Carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems
ASME SA105N Carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA105N
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
500KGS
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
According To Client's Request
Delivery Time :
10-90 Days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SA105N
Material :
Carbon Steel
Material Grades :
A105N
Size :
Customizable
Type :
Nozzle
Drawing :
Customizable
Description

ASME SA105N carbon Steel Self Reinforced Nozzle For High Pressure Vessels And Piping Systems

ASME SA105N Carbon Steel Self-Reinforced Nozzle is a key connection component designed for high-pressure vessels and pipeline systems.

It is made of normalized forged steel (SA105N) and is self-reinforced by locally thickening the wall or optimizing the geometric profile, eliminating the need for traditional reinforcement plate welding.

It provides excellent performance in high-pressure vessels (such as reactors, boilers) and pipeline interfaces with a pressure of ≥5MPa.

Chemical Composition:

Element ASME SA105N (Carbon Steel)
Carbon (C) 0.35% (max)
Manganese (Mn) 0.60% - 1.00%
Phosphorus (P) 0.035% (max)
Sulfur (S) 0.035% (max)
Silicon (Si) 0.10% - 0.40%
Chromium (Cr) ≤ 0.30%
Nickel (Ni) ≤ 0.25%

Mechanical Properties:

Property ASME SA105N (Carbon Steel)
Tensile Strength 485 MPa (min)
Yield Strength 205 MPa (min)
Elongation 20% (min)
Hardness Brinell hardness: 119 (max)

Application

Oil and gas: high-pressure separator inlet and outlet, oil and gas pipeline distribution outlet (Class 600~1500, sulfur corrosion resistance)

LNG receiving station low-temperature storage tank connection.

Chemical equipment: reactor/tower material inlet and outlet (≥5MPa, to avoid corrosive medium penetration in welds)

High-pressure heat exchanger tube/shell interface.

Drain valve interface, steam sampling port (below 550℃, water vapor erosion resistance)


Water supply regulating valve flange

Pressure vessel: hydraulic accumulator pipeline
