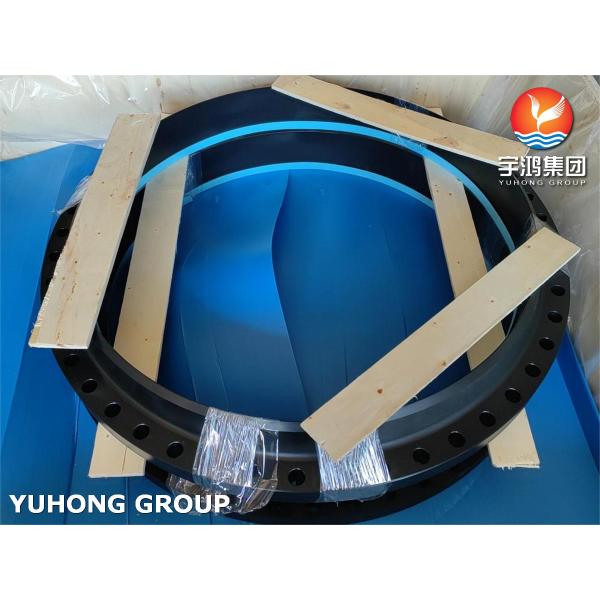

ASTM A105 Carbon Steel Weldneck Flange - B16.47 Series B, Class 300/600, Pipe Connection
ASTM A105 Carbon Steel Weldneck Flange - B16.47 Series B, Class 300/600, Pipe Connection
ASTM A105 Carbon Steel Weldneck Flange - B16.47 Series B, Class 300/600, Pipe Connection
ASTM A105 Carbon Steel Weldneck Flange - B16.47 Series B, Class 300/600, Pipe Connection
ASTM A105 Carbon Steel Weldneck Flange - B16.47 Series B, Class 300/600, Pipe Connection
ASTM A105 Carbon Steel Weldneck Flange - B16.47 Series B, Class 300/600, Pipe Connection
ASTM A105 Carbon Steel Weldneck Flange - B16.47 Series B, Class 300/600, Pipe Connection
ASTM A105 Carbon Steel Weldneck Flange - B16.47 Series B, Class 300/600, Pipe Connection
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A105 A105
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 tons per month
Delivery Time :
5-8days
Packaging Details :
Plywooden Case /Iron Case
Standard :
ASTM A105
Grade :
A105
Material :
Carbon Steel Forging
Product Type :
Weld Neck Flange
Face Type :
Raised Face (RF) or Ring Type Joint (RTJ)
Application :
Piping Application
Description

ASTM A105 Carbon Steel Series B Weldneck Flange B16.47 for Piping Applications

With 30 years of experience in the piping components industry, Yuhong specializes in manufacturing ASTM A105 carbon steel Series B weldneck flanges conforming to B16.47, tailored for diverse piping applications. Having exported to 85 countries, the company has built a solid reputation worldwide, leveraging reliable quality and professional services to stand out in the global piping components market.

ASTM A105 Carbon Steel Series B Weldneck Flange Chemical Requirements
Element Carbon Manganese Phosphorus Sulfur Silicon Copper Nickel Chromium Molybdenum Vanadium
Composition, % 0.35 max 0.60 - 1.05 0.035 max 0.040 max 0.10 - 0.35 0.40 max 0.40 max 0.30 max 0.12 max 0.08 max

ASTM A105 Carbon Steel Series B Weldneck Flange Mechanical Requirements
Tensile strength, min, ksi [MPa] 70 [485]
Yield strength, min, ksi [MPa] 36 [250]
Hardness, HBW, max 197
Computed Minimum Values

Wall Thickness Elongation in 2 in. or 50 mm, min, %
in. mm
5/16 (0.312) 7.9 30
9/32 (0.281) 7.1 28.5
1/4 (0.250) 6.4 27
7/32 (0.219) 5.6 25.5
3/16 (0.188) 4.8 24
5/32 (0.156) 4 22.5
1/8 (0.125) 3.2 21
3/32 (0.094) 2.4 19.5
1/16 (0.062) 1.6 18

ASTM A105 Carbon Steel Series B Weldneck Flange B16.47 for Piping Applications

  1. Energy Sector

    • Used in oil & gas exploration, refining, and power generation, handling high-pressure fluids in pipelines.

  2. Petrochemical Industry

    • Ideal for petrochemical processes, connecting pipelines that transport chemicals, solvents, and petroleum products.

  3. Infrastructure and Construction

    • Applied in building HVAC, water supply, and drainage systems, as well as in bridge and tunnel pipelines.

  4. Mechanical and General Industrial Applications

    • Connects pipelines in industrial machinery, sewage treatment, and equipment like pumps and boilers.
