JIS H3300 C1220T Red Copper Sealmless Tube For Building Water Supply And Gas Transportation
JIS H3300 C1220T Red Copper Sealmless Tube For Building Water Supply And Gas Transportation
JIS H3300 C1220T Red Copper Sealmless Tube For Building Water Supply And Gas Transportation
JIS H3300 C1220T Red Copper Sealmless Tube For Building Water Supply And Gas Transportation
Specifications
Brand Name :
YUHONG
Model Number :
JIS H3300 C1220T
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According To Client's Request
Delivery Time :
5 - 90 Work Days
Packaging Details :
Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap
Standard :
JIS H3300 C1220T
Application :
Heat Exchager / Condenser
Material :
Copper Alloy
Lenght :
As Per Customer's Requestgth
Size Range :
OD: 3mm-150mm WT: 0.5mm-10mm
Color :
Copper Red
Description

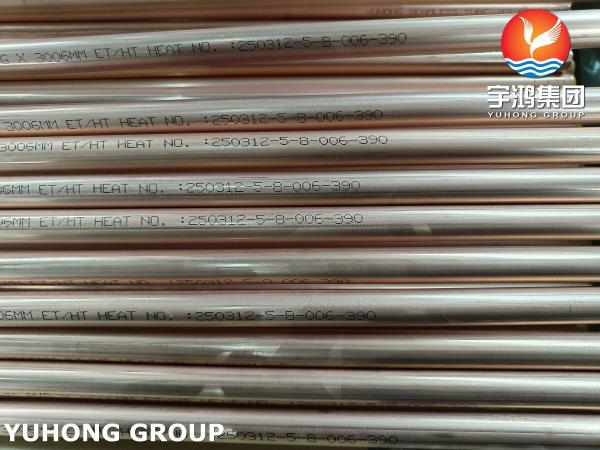

JIS H3300 C1220T Red Copper Sealmless Tube for Building Water Supply and Gas Transportation

JIS H3300 C1220T is a hard phosphorus deoxidized copper tube that meets Japanese industrial standards. It is made of oxygen-free copper (phosphorus content 0.015–0.040%) and has an extremely low oxygen content (≤0.001%), completely eliminating the risk of hydrogen embrittlement.

Its hard (T state) characteristics give the pipe high strength and pressure resistance while maintaining excellent thermal conductivity, corrosion resistance (especially stress corrosion resistance) and welding/brazing performance.

This type of copper tube is widely used in refrigeration and HVAC systems (such as refrigerant pipelines, condensers), building water supply (cold and hot water pipes), gas transportation and industrial heat exchange equipment, especially for high-pressure and high-sealing scenarios.

Standard Alloy No. Temper Chemical Composition Cu%
JIS H3300 C1220T H 1/2H OL O Minimum 99.90
BS2871 C106 H 1/2H / O
EN12735-2 CU-DHP Y0 80 / Y0 40 Y0 35
EN12735-1 or CW024A R360 R290 R250 / R220
EN1057 R360 R290 R250 / R220
EN12449 CU-DHP R360 R290 R250 / R220/R200
or CW024A H110 H095 H070 / H040
DIN SF-Cu F36 F25 F22 O
ASTM B68 C12200 / / O 50 O 60
B88 H58
B75 H80 & H58 H55 O 50 O 60
B280 H58 / O 60
B743-92a H58 / O 50 O 60

Application:

Refrigerant pipeline: used for the delivery pipeline of high-pressure refrigerant, suitable for the connecting pipes of air-conditioning condensers and evaporators.

Heat exchange components: U-tubes and microchannel tubes for manufacturing high-efficiency heat exchangers

Drinking water system: hot and cold water main pipelines

Solar collector tubes

Compressed air pipelines
