ASME SA213 TP347 S34700 Stainless Steel Seamless Tube For Condenser
ASME SA213 TP347 S34700 Stainless Steel Seamless Tube For Condenser
ASME SA213 TP347 S34700 Stainless Steel Seamless Tube For Condenser
ASME SA213 TP347 S34700 Stainless Steel Seamless Tube For Condenser
ASME SA213 TP347 S34700 Stainless Steel Seamless Tube For Condenser
ASME SA213 TP347 S34700 Stainless Steel Seamless Tube For Condenser
ASME SA213 TP347 S34700 Stainless Steel Seamless Tube For Condenser
ASME SA213 TP347 S34700 Stainless Steel Seamless Tube For Condenser
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA213 TP347
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
800 Tons/ Month
Delivery Time :
15-20 Days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SA213
Grade :
TP347, TP304, TP310S, TP316L
Application :
Condenser, Boiler, Heat exchanger
Test :
Hydrostatic Test, Nondestructive Electric Test, Grain size(ASTM E112), Flattening Test, Flaring Test
Type :
Seamless
Condition :
Hot finished, Cold finished
Description

ASME SA213 TP347 S34700 Stainless Steel Seamless Tube for Condenser Application

Yuhong specializes in ASME SA213 TP347 (UNS S34700) stainless steel seamless tubes for condensers. With deep expertise in austenitic stainless steel pipes, we strictly follow the ASME SA213 standard.
We serve over 85 countries, customizing sizes for efficient heat transfer and leakage - free, safe condenser operation in power, refrigeration, and industrial setups.
Choose Yuhong for quality, performance, and tailored solutions to optimize your condenser systems.

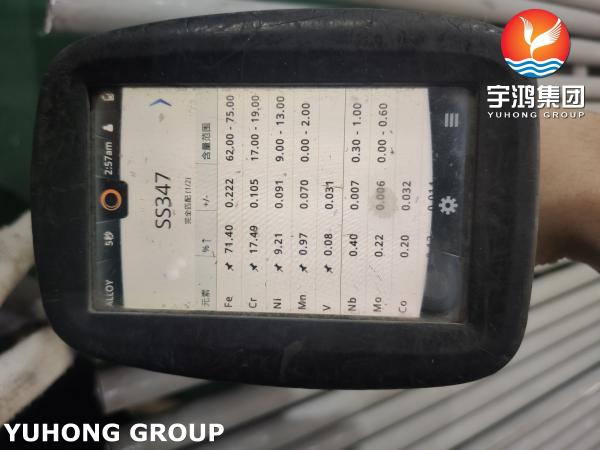

ASME SA213 TP347 Chemical Composition

Grade UNS Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel
Niobium
TP347 S34700 0.08 2 0.045 0.03 1 17.0 - 20.0 9.0 - 13.0
10xC–1.10
Heat Treatment and Grain Size Requirements
Grade UNS Number Heat Treat Type Austenitizing/Solutionizing/Stabilizing Temperature Cooling Media
TP347 S34700 solution treatment 1900 [1040]°F,H water or other rapid cool
Tensile and Hardness Requirements
Grade UNS Tensile Strength Yield Strength Elongation Hardness
TP347 S34700 min, ksi[MPa] min, ksi[MPa] in 2 in. or 50 mm, min, % Brinell/Vickers Rockwell
75[515] 30[205] 35 192 HBW 90 HRB
200 HV

ASME SA213 TP347 Equivalent specification

Region Standard Designation
China GB 06Cr18Ni11Nb
Japan CNS 347; JIS SUS 347
South Korea KS STS 347
USA ASTM/AISI 347; UNS S34700
ISO ISO 68CrNiNb 18 - 10
Germany DIN EN/DIN X6CrNiNb 18 - 10 (X10CrNiNb18 - 9); W - Nr. 1.4550
France NF EN/NF Z6CNNb 18 - 10
Euro Standard EN X6CrNiNb 18 - 10; Digital Number 1.4550
Russia GOST 08X18H12Б
Sweden SS 2338
UK BS EN/BS 347S17; 347S31

ASME SA213 TP347 S34700 Stainless Steel Seamless Tube for Condenser Application

ASME SA213 TP347 (UNS S34700) stainless steel seamless tubes, compliant with the ASME SA213 standard, excel in condenser applications due to their unique material properties. The niobium-stabilized austenitic structure provides excellent resistance to intergranular corrosion, crucial for withstanding the corrosive effects of coolants and condensate in condensers. Their high-temperature strength and oxidation resistance ensure reliable performance during thermal cycling, while the seamless construction minimizes leakage risks. These tubes efficiently facilitate heat transfer between steam and cooling media, maintaining optimal condenser efficiency and longevity in power plant, refrigeration, and industrial systems.
