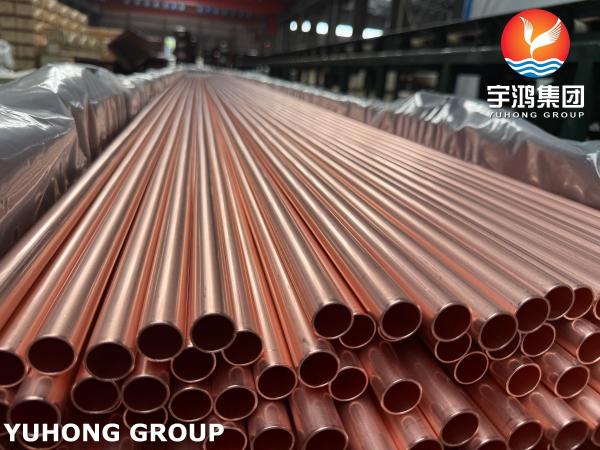

Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B111 C12200
Certification :
ABS, BV, ISO, ASTM, SGS
Place of Origin :
CHINA
MOQ :
100KGS
Payment Terms :
L/C, T/T
Delivery Time :
7DAYS
Packaging Details :
Ply-wooden Case , Bundle
GRADE :
C12200
STANDARD :
ASTM B111,ASME SB111
TEST :
ET, HT, Flattening Test,Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination,Tension Testing.
CODE :
H80,H55...
OD :
1/4"(6.35), 3/8"(9.52), 1/2" (12.7), 5/8"(15.88), 3/4" (19.05), 1"(25.4) , 1-1/4"(31.75), 1-1/2"(38.1), 2" (50.8), 2-1/2"(63.5) , 3" (76.2)
WT :
0.5mm to 8mm
Description

Copper and Copper alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80

C12200 Tube also known as **DHP (Deoxidized High Phosphorus) Copper. This alloy is widely used in plumbing, HVAC (heating, ventilation, and air conditioning), and other industrial applications due to its excellent corrosion resistance, formability, and soldering/brazing properties.
Properties:
- High corrosion resistance(suitable for water and refrigerant systems)
- Excellent thermal & electrical conductivity
- Easy to braze, solder, and weld
- Good ductility & formability
- Non-toxic & safe for potable water systems(commonly used in plumbing)
Standards & Tempers:
- ASTM B42, B68, B75, B88, B251, B819(depending on tube type)
- Available in hard-drawn (rigid) or annealed (soft) tempers
Comparison with Other Copper Alloys:
- C10200 (Oxygen-Free Copper): Higher purity, used in electrical applications.
- C12000 (Phosphorus-Deoxidized Copper): Similar but with slightly different phosphorus content.
- C12200 (DHP Copper): Preferred for plumbing due to better brazing & corrosion resistance.

Chemical Composition of ASTM B111 C12200 Copper Tube

Copper (including silver) Phosphorus
> 99.90% 0.015 – 0.040%

Mechanical Properties

Property Annealed (O) Half-Hard (H55) Hard (H80)
Tensile Strength (MPa) 205 - 275 275 - 345 345 - 415
Yield Strength (MPa) 50 - 100 100 - 200 200+
Elongation (%) ≥ 40 15 - 30 ≤ 10
Hardness (HV) 40 - 60 80 - 110 110 - 150

1.Annealed (O):

Fully soft for maximum ductility.

Suitable for bending, forming, and welding.

Commonly used in heat exchangers and condensers.

2.Half-Hard (H55):

A balance between strength and ductility.

Ideal for applications requiring moderate mechanical strength and some flexibility.

3.Hard (H80):

Maximum strength with minimal elongation.

Used in high-pressure systems and environments where wear resistance is critical.

Copper or Copper Alloy UNS No. Description
C10100 Oxygen-free electronic
C10200 Oxygen-free without residual deoxidants
C10300 Oxygen-free, extra low phosphorus
C10800 Oxygen-free, low phosphorus
C12000 Phosphorized, low residual phosphorus
C12200 Phosphorized, high residual phosphorus
C14200 Phosphorized, arsenical
C19200 Phosphorized, 1 % iron
C23000 Red Brass
C28000 Muntz Metal
C44300 Admiralty Metals, B, C, and D
C44400
C44500
C60800 Aluminum Bronze
C61300
C61400 Aluminum Bronze, D
C68700 Aluminum Brass, B
C70400 95-5 Copper-Nickel
C70600 90-10 Copper-Nickel
C70620 90-10 Copper-Nickel—Welding Grade
C71000 80-20 Copper-Nickel
C71500 70-30 Copper-Nickel
C71520 70-30 Copper-Nickel—Welding Grade
C71640 Copper-nickel-iron-manganese
C72200


Application of ASTM B111 C12200 Copper Tube:

- Plumbing pipes(water supply lines)
- HVAC refrigerant lines
- Hydraulic & pneumatic systems
- Medical gas tubing
- Heat exchangers & condensers
