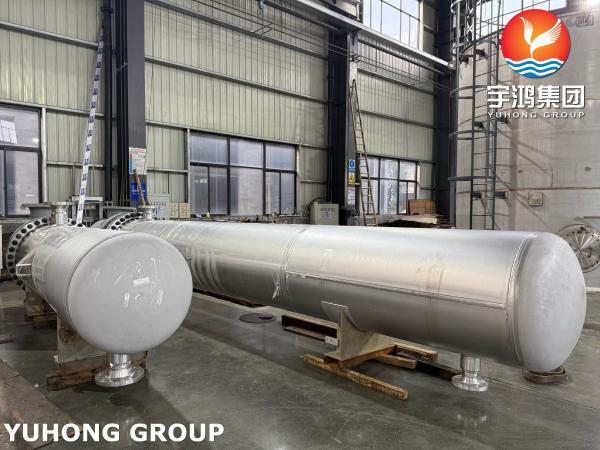

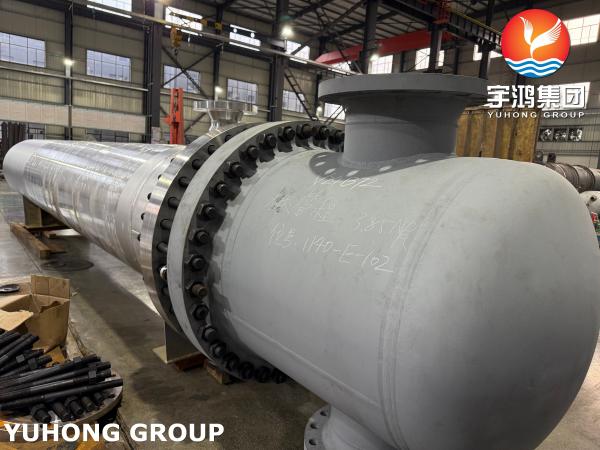

Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube
Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube
Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube
Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube
Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube
Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube
Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube
Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube
Specifications
Brand Name :
YUHONG
Model Number :
AES
Certification :
ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Place of Origin :
China
MOQ :
1Set
Price :
1--1000000 USD
Payment Terms :
L/C, T/T
Supply Ability :
50SETS/MONTHS
Delivery Time :
45---150 DAYS
Packaging Details :
Pallet
Heat Exchanger Shell Material :
ASME SA240 SS 316L
Heat Exchanger Tubesheet :
ASME SA182 F316L
Heat Exchanger Tube :
ASME SA213 TP316L
Heat Exchanger Baffle :
ASME SA240 SS 316L
Heat Exchanger Channel :
ASME SA240 SS 316L
Heat Exchanger Head :
ASME SA240 SS 316L
Description

Floating Head Heat Exchanger , AES Type , ASME SA240 SS316L Shell with ASME SA213 TP316L Tube

Yuhong Group is one of the biggest group company in China , till now below Yuhong Group has steel heat exchanger tube and boiler tube factory , fin tube factory , bending workshop , CNC Machining center, Air Cooler , Heat Exchanger, Pressure Vessel fabrication, our factories already got ISO 9001, ISO 14001, ISO18001, ISO 45001, PED, TUV, CE, ASME U, NB, S class . And our products already export more than 85 countries .

Yuhong Group shell and tube heat exchangers were the most widely used and were among the most effective means of heat exchange. Shell and tube heat exchanger is a device where two working fluids exchange heat by thermal contact using tubes housed within a cylindrical shell. The fluid temperature inside the shell and tube are different and this temperature difference is the driving force for temperature exchange. Used for wide temperature and pressure range, Shell and tube heat exchangers are compact in design, simple in construction and maintenance and provide excellent heat exchange.

Shell and Tube Heat Exchanger Type :

1. Fixed Tube Heat Exchanger. (BEM, AEM , NEM )

Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube

2. Floating Head Removable Heat Exchanger. (AEW, BEW, BEP, AEP , AES, BES)

Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube

3. U-Tube Heat Exchanger. (BEU, AEU)

Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube

1. Shell 16. Tubes (U-type)
2. Shell cover 17. Tie rods and spacers
3. Shell flange (channel end) 18. Transverse (or cross) baffles or support plates
4. Shell flange (cover end) 19. Longitudinal baffles
5. Shell nozzle or branch 20. Impingement baffles
6. Floating tube sheet 21. Floating head support
7. Floating head cover 22. Pass partition
8. Floating head flange 23. Vent connection
9. Floating head gland 24. Drain connection
10. Floating head backing ring 25. Instrument connection
11. Stationary tube sheet 26. Expansion bellows
12. Channel or stationary head 27. Support saddles
13. Channel cover 28. Lifting lugs
14. Channel nozzle or branch 29. Weir
15. Tube (straight) 30. Liquid level connection

Floating Head Heat Exchanger AES Type ASME SA240 SS316L Shell With ASME SA213 TP316L Tube
