ASME SA213 TP321 S32100 Stainless Steel Seamless Tube For Superheater
ASME SA213 TP321 S32100 Stainless Steel Seamless Tube For Superheater
ASME SA213 TP321 S32100 Stainless Steel Seamless Tube For Superheater
ASME SA213 TP321 S32100 Stainless Steel Seamless Tube For Superheater
ASME SA213 TP321 S32100 Stainless Steel Seamless Tube For Superheater
ASME SA213 TP321 S32100 Stainless Steel Seamless Tube For Superheater
ASME SA213 TP321 S32100 Stainless Steel Seamless Tube For Superheater
ASME SA213 TP321 S32100 Stainless Steel Seamless Tube For Superheater
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA213 TP321
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
800 Tons/ Month
Delivery Time :
15-20 Days

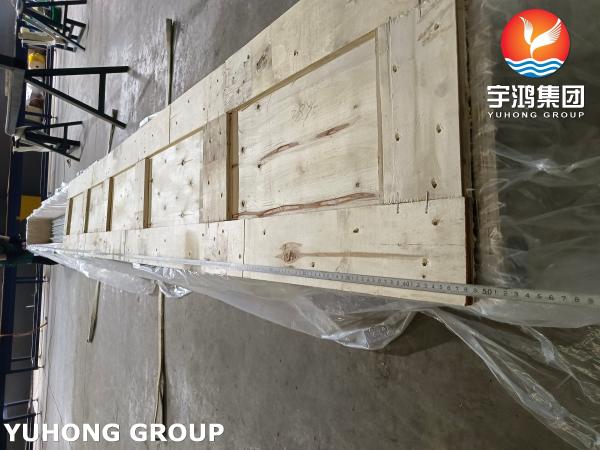

Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SA213
Grade :
TP321
Type :
Seamless
Application :
Superheater
Test :
Hydrostatic Test, Nondestructive Electric Test, Grain size(ASTM E112), Flattening Test, Flaring Test
Conditon :
Hot finished, Cold finished
Description

ASME SA213 TP321 S32100 Stainless Steel Seamless Tube for Superheater Application

With over 30 years of industry experience in stainless steel tube, Yuhong Company exports to 85 countries, trusted globally in superheater applications.​
Our ASME SA213 TP321 S32100 Stainless Steel Seamless Tube meets ASME SA213 standards, using high-quality S32100 stainless steel. It resists high temperatures, oxidation, and corrosion, ensuring stable operation in superheaters.

ASME SA213 TP321 S32100 Stainless Steel Seamless Tube Chemical Composition

Grade UNS Designation Carbon Manganese Phosphorus Sulfur Silicon Chromium Nickel
Titanium
TP321 S32100 0.08 2 0.045 0.03 1 17.0 - 19.0 9.0 - 12.0
4(C + N)–
0.70

ASME SA213 TP321 Equivalent specification

Region Standard System Designation
China GB 06Cr18Ni11Ti
Japan JIS SUS 321
South Korea KS STS 321
USA ASTM 321
USA UNS S32100
ISO ISO X6CrNiTi 18 - 10
ISO Numerical Designation 4541 - 321 - 00 - I
Germany DIN EN/DIN X6CrNiTi 18 - 10 (X10CrNiTi 18 - 9)
Germany W - Nr. 1.4541
France NF EN/NF Z6CNT 18 - 10
Europe EN X6CrNiTi 18 - 10
Europe Numerical Designation 1.4541
Russia GOST 09X18H10T X18H10T
Sweden SS 2337
UK BS EN/BS 321S12 321S31

Heat Treatment and Grain Size Requirements

Grade UNS Number Heat Treat Type Austenitizing/Solutionizing/Stabilizing Temperature Cooling Media
TP321 S32100 solution treatment 1900 [1040]°F water or other rapid cool

Tensile and Hardness Requirements

Gade UNS Tensile Strength Yield Strength Elongation Hardness
TP321 S32100 min, ksi[MPa] min, ksi[MPa] in 2 in. or 50 mm, min, % Brinell/Vickers Rockwell
75[515] 30[205] 35 192 HBW 90 HRB
200 HV

ASME SA213 TP321 S32100 Stainless Steel Seamless Tube for Superheater Application

  • 1. High - Temperature Endurance
  • Can stably work under superheater’s high - temp conditions (e.g., common 500 - 800°C). Titanium in the alloy stops “sensitization”, avoiding intergranular corrosion even after long - term heat exposure, ensuring effective steam heating.
  • 2. Corrosion Resistance
  • Resists oxidation from superheater’s oxygen - rich gases and steam. Also fends off flue gas - related corrosive substances, reducing damage and extending tube service life.
  • 3. Mechanical Reliability
  • Under high pressure and thermal stress in superheaters, it has good creep and stress - rupture resistance. Maintains shape and structure, preventing deformation or rupture - caused failures.

ASME SA213 TP321 S32100 Stainless Steel Seamless Tube For Superheater
