Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Specifications
Brand Name :
YUHONG
Model Number :
EN1092-1 304L
Certification :
API, PED,
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD
Payment Terms :
L/C,T/T
Supply Ability :
1000 TONS PER MONTH
Delivery Time :
7 DAYS
Packaging Details :

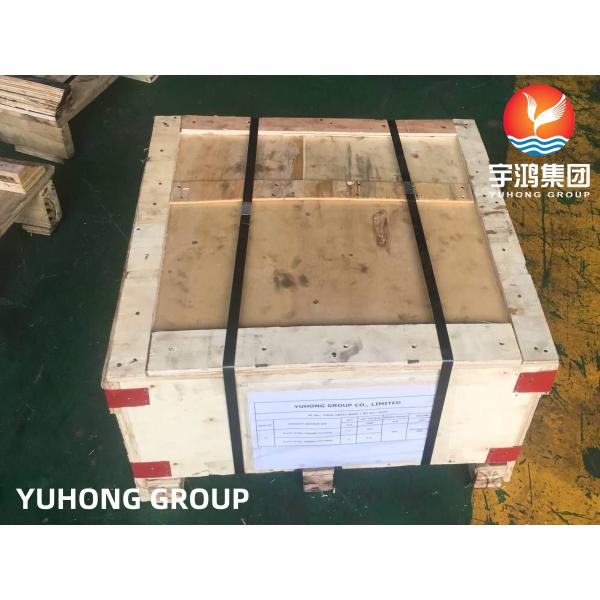

PLY-WOODEN CASE
Brand :
YUHONG
Standard :
EN1092-1
MATERIAL :
304L
PN :
10, 16
DN :
50, 100
Type :
01/A
Designs of flanges :
Multiple
Applications :
Hydraulic control systems
Description

Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16

YUHONG'S each classification is labelled with the lettering EN 1092-1 (i. e. the reference standard) followed by a two-digit number indicating the construction of the flange, and a letter which indicates the kind of sealing surface of the flange.

The labelling on the side of all kinds of flanges includes not only the lettering EN 1092-1 TYPE___, but also information concerning PN, DN and casting of the raw material used for the creation of the flange.

Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16

Europe countries mainly install flanges according to standard EN 1092-1 FLANGE STANDARD (forged Stainless or Steel Flanges). Similar to the ASME flange standard, the EN 1092-1 standard has the basic flange forms, such as weld neck flange, blind flange, lappedthe flange, threaded Flange (Thread ISO7-1 instead of NPT), weld on collar, pressed collars, and adapter flange such as flange coupling GD pressfittings. The different forms of flanges within the EN 1092-1 (European Norm Euronorm) is indicated within the flange name through the type.

Flange type (typ) as in DIN EN 1092-1
EN 1092-1 type 01 (Plate [slip-on] flanges for welding) 13 (Hubbed threaded flanges)
EN 1092-1 type 02 (Loose plate flanges with weld-on plate collar) 21 (Integral flanges)
EN 1092-1 type 04 (Loose plate flanges with weld-neck collar) 32 (Weld-on plate collars)
EN 1092-1 type 05 (Blank [blind] flanges) 33 (Lapped pipe ends)
EN 1092-1 type 11 (Weld-neck flanges) EN 1092-1 34 (Weld-neck collars)
EN 1092-1 12 (Hubbed slip-on flanges for welding) 36 (Pressed collar with long neck)
37 (Pressed collar)

Grade : X2CrNi18-9
Number: 1.4307
Classification: Austenitic stainless steel
Density: 7.9 g/cm ³

EN ASTM/ASME
1.4301 / 1.4307 AISI 304 / 304L
1.4401 / 1.4404 AISI 316 / 316L
1.4541 AISI 321
1.4571 AISI 316Ti

Properties

Dimensions: DN50 2" (ø 60,3 mm)
Hole size (mm): 60.3
Material type: 304 (L)
Pressure stage: PN10, PN16
Number of holes: 4 x M16
Outside diameter (mm): 165
Hole spacings: 125 mm

Dimensions

Dimension A 20
Dimension B 165
Dimension C 60,3
Dimension D
Dimension E 125

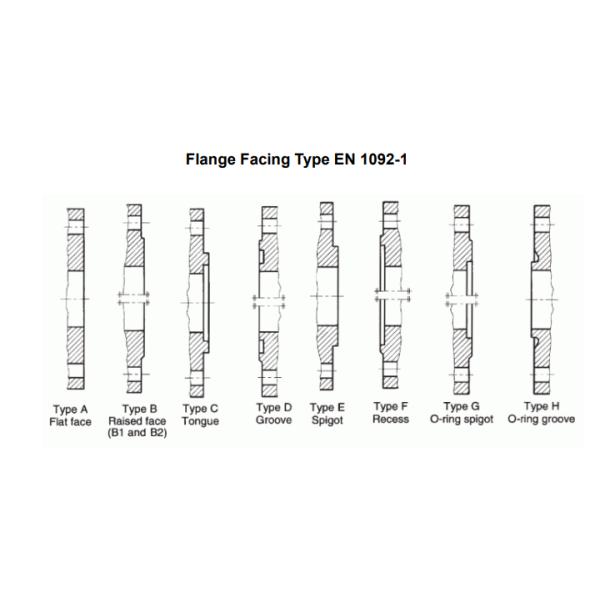

Form: types of Contact Faces DIN EN 1092-1
Without Raised Face Form A
Raised Face (Rz = 160 Mechanical Turned) Form B1
Raised Face ( Rz = 40 Mechanical Turned) Form B1
Raised Face (Rz = 16 Mechanical Turned) Form B2
Tongue According to DIN2512 Form C
Groove According to DIN 2512 Form D
Male According to DIN 2513 Form E
Female According to DIN 2513 Form F
Female According to DIN 2514 Form G
Male According to DIN 2514 Form H

Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16

Product tags

astm a105 socket welding flange

,

a350 lf2 wn flange

,

ansi class 125 flange
