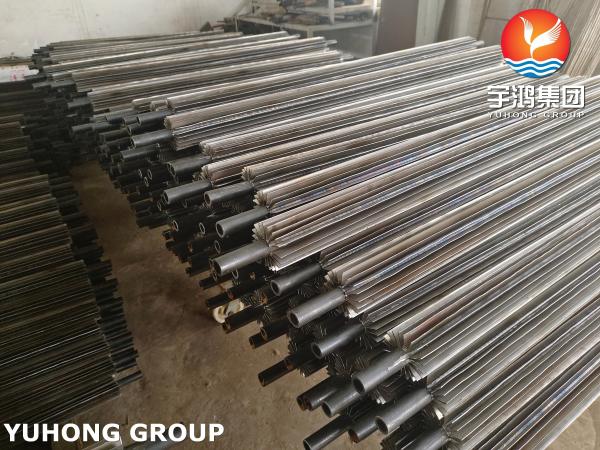

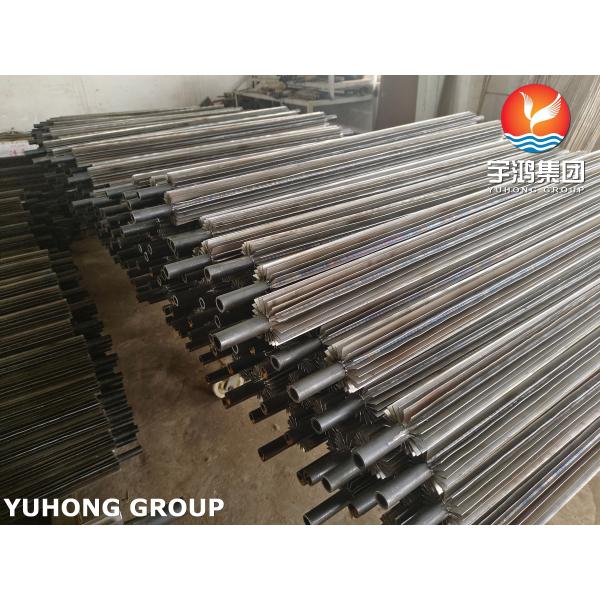

ASTM A179 Carbon Steel Longitudinal Fin Tube Q235B Fin For Air Preheater
ASTM A179 Carbon Steel Longitudinal Fin Tube Q235B Fin For Air Preheater
ASTM A179 Carbon Steel Longitudinal Fin Tube Q235B Fin For Air Preheater
ASTM A179 Carbon Steel Longitudinal Fin Tube Q235B Fin For Air Preheater
ASTM A179 Carbon Steel Longitudinal Fin Tube Q235B Fin For Air Preheater
ASTM A179 Carbon Steel Longitudinal Fin Tube Q235B Fin For Air Preheater
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A179
Certification :
DNV, BV, PED, LR, ABS, TS, CCS
Place of Origin :
China
MOQ :
100KGS
Price :
Negotiable
Material :
A179
Fin Material :
Q235B
Testing :
HT, ET
Fin Connection :
Welding
Application :
Preheater, Cooling Tower
Fin Type :
Longitudinal
Description

ASTM A179 Carbon Steel Longitudinal Fin Tube with Q235B Fin for Air Preheater

Key Features:

  1. Base Tube Material: ASTM A179 Carbon Steel, offering excellent thermal conductivity and durability in high-temperature environments.
  2. Fin Material: Q235B Carbon Steel, providing robust mechanical strength and compatibility for welded fins.
  3. Fin Type: Longitudinal Fins, welded along the length of the tube for efficient heat transfer in air preheaters.
  4. Application: Designed for air preheaters, optimizing heat exchange in industrial and power plant operations.

Technical Specifications:

Property Base Tube (ASTM A179) Fins (Q235B Carbon Steel)
Outer Diameter (OD) 25.4 mm - 101.6 mm Customizable based on design
Wall Thickness 2.0 mm - 5.0 mm -
Fin Height - 10 mm - 30 mm
Fin Thickness - 2.0 mm - 3.0 mm
Fin Spacing - Uniformly spaced along the length

Advantages:

  1. Improved Heat Transfer: Longitudinal fin design maximizes heat exchange efficiency, especially in preheaters.
  2. Durability: Robust construction withstands high-temperature and corrosive conditions in air preheater operations.
  3. Cost Efficiency: Combination of A179 base tube and Q235B fins provides a cost-effective, long-lasting solution.
  4. Customizable Design: Adaptable fin dimensions to meet specific air preheater requirements.

Applications:

  • Air Preheaters in Boilers: Enhancing the thermal efficiency of power generation and industrial systems.
  • Heat Recovery Systems: Capturing waste heat to improve operational efficiency.
  • Industrial Furnaces: Supporting preheating applications for air supply.
