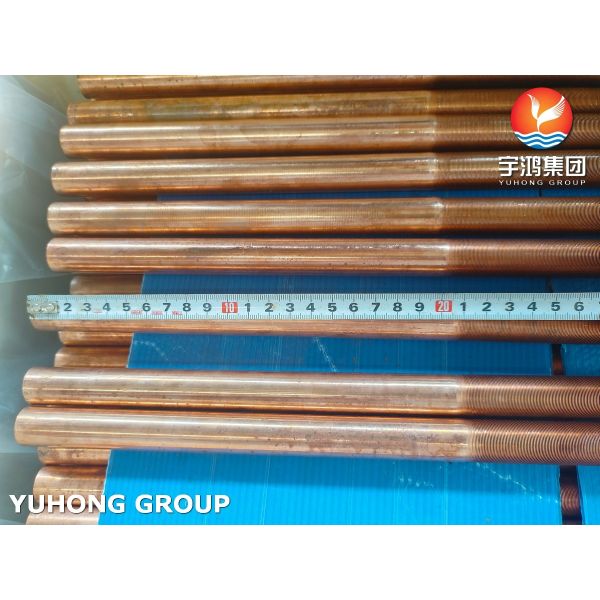

ASTM B111 C12200 SMLS Tube, for Heat Exchanger Copper Seamless Tube
ASTM B111 C12200 SMLS Tube, for Heat Exchanger Copper Seamless Tube
ASTM B111 C12200 SMLS Tube, for Heat Exchanger Copper Seamless Tube
ASTM B111 C12200 SMLS Tube, for Heat Exchanger Copper Seamless Tube
ASTM B111 C12200 SMLS Tube, for Heat Exchanger Copper Seamless Tube
ASTM B111 C12200 SMLS Tube, for Heat Exchanger Copper Seamless Tube
ASTM B111 C12200 SMLS Tube, for Heat Exchanger Copper Seamless Tube
ASTM B111 C12200 SMLS Tube, for Heat Exchanger Copper Seamless Tube
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B111
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1000 Tons/Month
Delivery Time :
7-60 Days
Packaging Details :
Ply-wooden Case / Bundle With Plastic Cap
Product Model :
ASTM B111 C12200 SMLS TUBE
Standard :
ASTM B111, ASTM B88, ASME B16.22, GB/T 26024-2021
Material Grade :
C12200 for Heat Exchanger Copper (TP2), Compliant with ASTM B111
Product Type :
Seamless Tube (SMLS TUBE), Straight Tube/Coiled Tube (Optional)
Size Range :
OD: 6mm-159mm, Wall Thickness: 0.5mm-10mm, Length: 1m-12m (Customizable)
Surface Treatment :
Bright Annealing, Pickling, Polishing (Optional), Anti-Tarnish Coating
Description

ASTM B111 C12200 SMLS Tube, for Heat Exchanger Copper Seamless Tube

Brief Introduction

24091 ASTM B111 C12200 SMLS TUBE is a high-quality seamless copper tube, strictly manufactured in accordance with ASTM B111 standard (Standard Specification for Seamless Copper Tubes) and made of C12200 copper alloy[1]. C12200 is a kind of phosphorus-deoxidized copper, also known as TP2 copper, which is widely recognized for its excellent corrosion resistance, good thermal conductivity, electrical conductivity and ductility[1]. As a seamless tube, the product has no welding seams, avoiding the hidden danger of leakage at the welding position, and has uniform wall thickness and dense internal structure. It is mainly used in fluid transmission, heat exchange, electrical conduction and other scenarios, and is widely applied in air conditioning and refrigeration, petrochemical, water treatment, electrical and electronic and other industries, providing reliable support for the stable operation of various equipment and systems.

Chemical Composition Analysis (wt%)

Material Grade Element Content Range Element Content Range Element Content Range
C12200 Copper Alloy (ASTM B111) Cu (Copper) ≥99.90 P (Phosphorus) 0.015-0.040 Fe (Iron) ≤0.005
Pb (Lead) ≤0.005 Zn (Zinc) ≤0.005 Other Impurities ≤0.05 (Total)

Typical Mechanical Properties

Mechanical Property C12200 (Annealed SMLS TUBE) ASTM B111 Standard Requirement Test Method
Yield Strength (Rp0.2), MPa ≥70 ≥65 ASTM E8/E8M
Tensile Strength (Rm), MPa 220-280 ≥210 ASTM E8/E8M
Elongation (A), % ≥40 ≥35 ASTM E8/E8M

Available Tests

Test Type Standard
Chemical Composition Analysis (PMI) Spectrometer (XRF/OES), ASTM E1019, ASTM B111
Tensile & Elongation Test ASTM E8/E8M, ASTM B111 Mechanical Performance Requirement
Hardness Test ASTM E10 (Brinell), ASTM E18 (Rockwell), Vickers
Corrosion Resistance Test ASTM B117 (Salt Spray), Intergranular Corrosion Test, Heat Exchanger Medium Corrosion Test
Non-Destructive Testing (NDT) UT (Ultrasonic), MT (Magnetic Particle), PT (Liquid Penetrant), RT (Radiographic Testing)
Hydrostatic/Pneumatic Pressure Test ASTM B111, ASME B16.9, 1.5×Working Pressure Test for Heat Exchanger Tubes
Dimensional & Visual Inspection ASTM B111, ASME B16.22, CMM, Gauge Inspection, Surface Finish Test
Material Test Certificate (MTC) EN 10204 3.1/3.2, ASTM B111
Thermal Conductivity Test ASTM D5470, Suitable for Heat Exchanger Tube Performance Test

Product Application Scope

Test Type Standard
Chemical Composition Analysis (PMI) Spectrometer (XRF/OES), ASTM E1019, ASTM B111
Tensile & Elongation Test ASTM E8/E8M, ASTM B111 Mechanical Performance Requirement
Hardness Test ASTM E10 (Brinell), ASTM E18 (Rockwell), Vickers
Corrosion Resistance Test ASTM B117 (Salt Spray), Intergranular Corrosion Test, Heat Exchanger Medium Corrosion Test
Non-Destructive Testing (NDT) UT (Ultrasonic), MT (Magnetic Particle), PT (Liquid Penetrant), RT (Radiographic Testing)
Hydrostatic/Pneumatic Pressure Test ASTM B111, ASME B16.9, 1.5×Working Pressure Test for Heat Exchanger Tubes
Dimensional & Visual Inspection ASTM B111, ASME B16.22, CMM, Gauge Inspection, Surface Finish Test
Material Test Certificate (MTC) EN 10204 3.1/3.2, ASTM B111
Thermal Conductivity Test ASTM D5470, Suitable for Heat Exchanger Tube Performance Test
