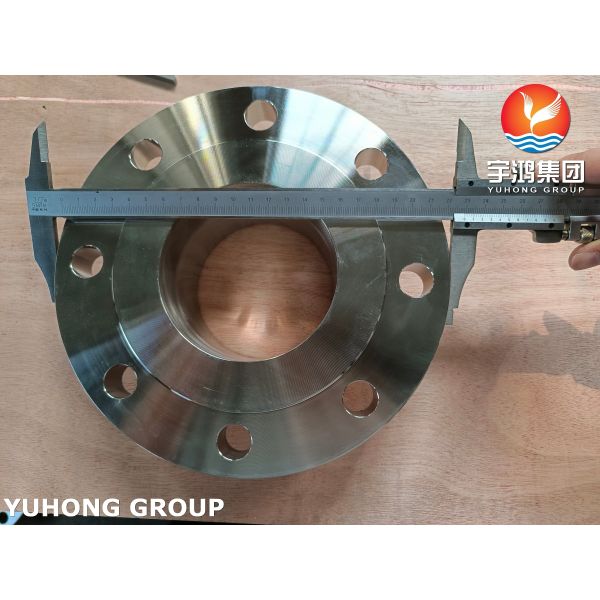

ASTM B462 C276 WN RF Flange, Hastelloy C276 Weld Neck Raised Face Forged Flange
ASTM B462 C276 WN RF Flange, Hastelloy C276 Weld Neck Raised Face Forged Flange
ASTM B462 C276 WN RF Flange, Hastelloy C276 Weld Neck Raised Face Forged Flange
ASTM B462 C276 WN RF Flange, Hastelloy C276 Weld Neck Raised Face Forged Flange
ASTM B462 C276 WN RF Flange, Hastelloy C276 Weld Neck Raised Face Forged Flange
ASTM B462 C276 WN RF Flange, Hastelloy C276 Weld Neck Raised Face Forged Flange
ASTM B462 C276 WN RF Flange, Hastelloy C276 Weld Neck Raised Face Forged Flange
ASTM B462 C276 WN RF Flange, Hastelloy C276 Weld Neck Raised Face Forged Flange
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B462 C276 FlLANGE
Certification :
ABS, BV, ISO, ASTM, SGS, LR
Place of Origin :
CHINA
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
10000 PCS/ Month
Delivery Time :
Depends On Quantity
Packaging Details :
Wooden Cases
Standard :
ASTM B462, ASME B16.5
Grade :
C276 (Hastelloy C276), Nickel-Chromium-Molybdenum-Tungsten Alloy
Product Type :
Weld Neck (WN) Flange, Raised Face (RF)
Pressure Class :
Class 150, 300, 600, 900, 1500
Size Range :
1/2” – 24” (DN15 – DN600), Customizable
Surface Treatment :
Pickled & Passivated (P/P), Polished, Bright Annealed Finish
Description
ASTM B462 C276 WN RF Flange, Hastelloy C276 Weld Neck Raised Face Forged Flange
Brief Introduction

ASTM B462 C276 WN RF Flange is a high-end corrosion-resistant nickel-based superalloy forged flange, strictly manufactured in accordance with ASTM B462 (material standard for Hastelloy C276 forgings) and ASME B16.5 (dimensional standard). C276 (commonly known as Hastelloy C276) is a premium nickel-chromium-molybdenum-tungsten alloy, famous for its exceptional resistance to almost all strong corrosive media (including sulfuric acid, hydrochloric acid, phosphoric acid, chloride solutions, and seawater). As a Weld Neck (WN) flange with Raised Face (RF), it features high structural strength, reliable sealing performance, and strong connection stability, specially designed for high-temperature, high-pressure, and harsh corrosive industrial piping systems, widely applied in petrochemical, marine engineering, chemical processing, and other critical fields.

Chemical Composition Analysis (wt%)
Alloy Grade Ni Cr Mo W Fe C Si Mn P S
ASTM B462 C276 (Hastelloy C276) 57.0 Min. 14.5-16.5 15.0-17.0 3.0-4.5 4.0-7.0 ≤0.010 ≤0.08 ≤1.00 ≤0.040 ≤0.030
Typical Mechanical Properties
Mechanical Property Standard Requirement (Min.) Typical Value (Solution Annealed)
Yield Strength (Rp0.2), MPa ≥275 300-400
Tensile Strength (Rm), MPa ≥690 700-850
Elongation (A), % ≥40 45-55
Hardness (HB), Brinell ≤210 170-200
Impact Toughness (KV), J (20℃) ≥100 120-180
Max. Working Temperature 1093℃ (Long-term) 1093℃
Available Tests
Test Type Standard
Chemical Composition Analysis (PMI) Spectrometer (XRF/OES), ASTM E1019
Tensile & Impact Test ASTM E8/E8M, ASTM A370, Charpy V-Notch
Hardness Test ASTM E10 (Brinell), ASTM E18 (Rockwell), Vickers
Solution Annealing Inspection ASTM B462, Metallographic Microstructure Test
Corrosion Resistance Test ASTM G48 (Pitting/Crevice), ASTM B117 (Salt Spray), ASTM A262, ASTM G31 (Immersion Test)
Non-Destructive Testing (NDT) UT (Ultrasonic), MT (Magnetic Particle), PT (Liquid Penetrant)
Hydrostatic/Pneumatic Pressure Test ASTM B462, ASME B16.5
Dimensional & Visual Inspection ASTM B462, ASME B16.5, CMM, Gauge Inspection
Material Test Certificate (MTC) EN 10204 3.1/3.2, ASTM B462
Product Application Scope
Industry Field Typical Applications
Petrochemical & Refinery Corrosive process pipelines, hydrogenation reaction equipment, refinery acid-base pipeline connections, sulfur recovery systems, catalyst system flanges
Chemical Processing Acid-base production pipelines, chemical reaction vessels, pharmaceutical equipment connections, organic synthesis equipment flanges
Marine Engineering Offshore platform corrosion-resistant pipelines, seawater cooling systems, marine engine pipeline connections, coastal industrial piping flanges
Seawater Desalination Desalination plant pipelines, reverse osmosis system flanges, brine treatment equipment, seawater intake and discharge pipeline connections
Nuclear Power Industry Nuclear reactor auxiliary system flanges, radioactive material handling equipment, high-temperature and high-pressure corrosion-resistant pipelines
Other High-Corrosion Fields Wastewater treatment equipment, acid storage and transportation systems, high-temperature furnace flanges, electronic chemical equipment connections
