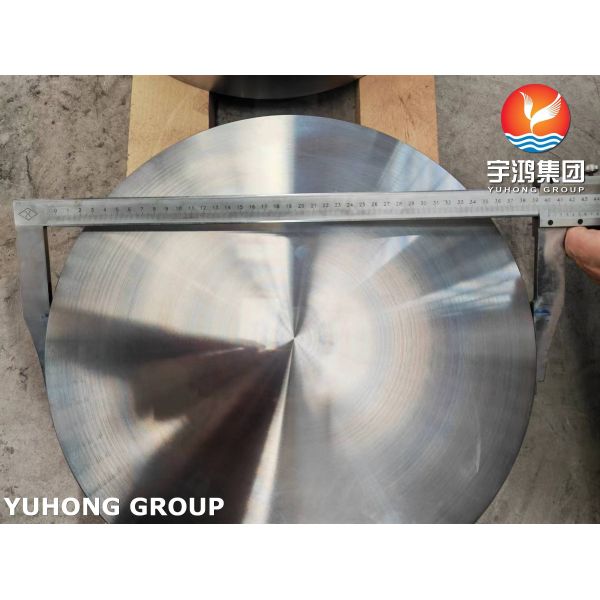

ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B564 N06625
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
CHINA
MOQ :
3 PCS
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
As Per Buyer's Require
Delivery Time :
5-60 Working Days
Packaging Details :
Wooden Cases
Standard :
ASTM B564, ASME SB564
Grade :
N06625 (Inconel 625), Nickel-Based Superalloy
Product Type :
Solid Round Rod / Round Bar
Diameter Range :
1mm – 200mm (Customizable)
Length :
1m – 6m, or Customized Length
Surface Treatment :
Pickled & Passivated (P/P), Polished, Bright Annealed Finish
Description
ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
Brief Introduction

ASTM B564 N06625 Round Rod is a high-performance nickel-based superalloy solid round bar, strictly manufactured in accordance with ASTM B564 and ASME SB564 standards. N06625 (commonly known as Inconel 625) is a premium nickel-chromium-molybdenum-niobium alloy, featuring excellent high-temperature strength, outstanding corrosion resistance (resistant to most acids, alkalis, chloride media, and seawater), and good weldability and formability. It is specially designed for harsh working environments such as high temperature, high pressure, and strong corrosion, widely applied in aerospace, petrochemical, marine engineering, and other critical industrial fields.

Chemical Composition Analysis (wt%)
Alloy Grade Ni Cr Mo Nb+Ta Fe C Si Mn P S
ASTM B564 N06625 (Inconel 625) 58.0 Min. 20.0-23.0 8.0-10.0 3.15-4.15 ≤5.0 ≤0.10 ≤0.50 ≤0.50 ≤0.015 ≤0.015
Typical Mechanical Properties
Mechanical Property Standard Requirement (Min.) Typical Value (Solution Annealed)
Yield Strength (Rp0.2), MPa ≥275 310-410
Tensile Strength (Rm), MPa ≥655 700-850
Elongation (A), % ≥30 35-45
Hardness (HB), Brinell ≤220 180-210
Impact Toughness (KV), J (20℃) ≥100 120-180
Max. Working Temperature 1093℃ (Long-term) 1093℃
Available Tests
Test Type Standard
Chemical Composition Analysis (PMI) Spectrometer (XRF/OES), ASTM E1019
Tensile & Impact Test ASTM E8/E8M, ASTM A370, Charpy V-Notch
Hardness Test ASTM E10 (Brinell), ASTM E18 (Rockwell), Vickers
Solution Annealing Inspection ASTM B564, Metallographic Microstructure Test
Corrosion Resistance Test ASTM G48 (Pitting/Crevice), ASTM B117 (Salt Spray), ASTM A262
Non-Destructive Testing (NDT) UT (Ultrasonic), MT (Magnetic Particle), PT (Liquid Penetrant)
Dimensional & Straightness Test ASTM B564, CMM, Gauge Inspection
Microstructure Inspection ASTM E45, Metallographic Microscope Test
Material Test Certificate (MTC) EN 10204 3.1/3.2, ASTM B564
Product Application Scope
Industry Field Typical Applications
Aerospace Industry Jet engine components, aircraft exhaust systems, high-temperature fasteners, aerospace structural parts
Petrochemical & Refinery Corrosive process pipelines, valve stems, pump shafts, hydrogenation reaction equipment, refinery catalyst components
Marine Engineering Offshore platform structural parts, seawater cooling systems, marine fasteners, ship pipeline components
Nuclear Power Industry Nuclear reactor auxiliary components, high-temperature and high-pressure pipeline fasteners, radioactive material handling equipment
Seawater Desalination Desalination plant pipelines, reverse osmosis system components, brine treatment equipment parts
Other High-Corrosion Fields Chemical processing equipment, pharmaceutical equipment, acid-base storage and transportation components, high-temperature furnace parts
ASTM B564 N06625 Round Rod, Inconel 625 Nickel-Based Alloy Solid Round Bar for High Corrosion Service
