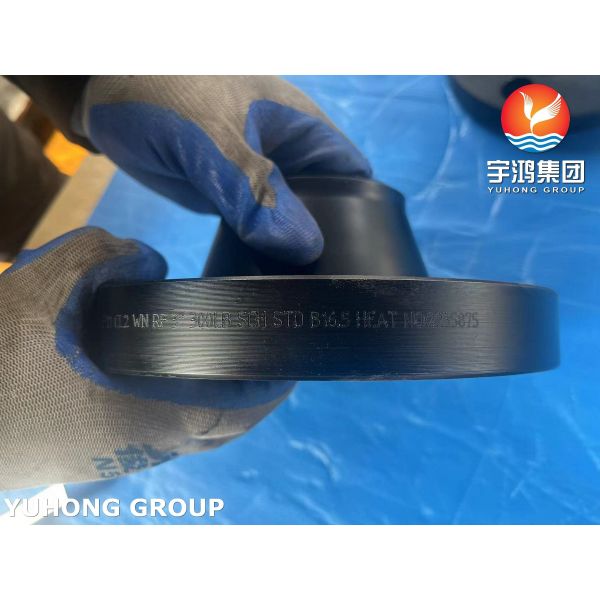

ASTM A182 F11 WN RF Flange, Chrome Molybdenum Alloy Forged Weld Neck Raised Face Flange
ASTM A182 F11 WN RF Flange, Chrome Molybdenum Alloy Forged Weld Neck Raised Face Flange
ASTM A182 F11 WN RF Flange, Chrome Molybdenum Alloy Forged Weld Neck Raised Face Flange
ASTM A182 F11 WN RF Flange, Chrome Molybdenum Alloy Forged Weld Neck Raised Face Flange
ASTM A182 F11 WN RF Flange, Chrome Molybdenum Alloy Forged Weld Neck Raised Face Flange
ASTM A182 F11 WN RF Flange, Chrome Molybdenum Alloy Forged Weld Neck Raised Face Flange
ASTM A182 F11 WN RF Flange, Chrome Molybdenum Alloy Forged Weld Neck Raised Face Flange
ASTM A182 F11 WN RF Flange, Chrome Molybdenum Alloy Forged Weld Neck Raised Face Flange
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A182 F11 CL2
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
As Per Buyer's Reguest
Delivery Time :
7 Days
Packaging Details :
Wooden Cases
Standard :
ASTM A182, ASME B16.5
Grade :
F11 (UNS K11547)
Type :
Weld Neck (WN), Raised Face (RF)
Pressure Class :
Class 150, 300, 600, 900, 1500
Size Range :
1/2” – 24” (DN15 – DN600)
Surface Treatment :
Anti-rust Oil, Black Paint, Pickling & Passivation (Optional)
Description
ASTM A182 F11 WN RF Flange, Chrome Molybdenum Alloy Forged Weld Neck Raised Face Flange
Brief Introduction

ASTM A182 F11 WN RF Flange is a high-performance chrome-molybdenum alloy forged flange, strictly manufactured in accordance with ASTM A182 and ASME B16.5 standards. F11 (UNS K11547) is a classic Cr-Mo alloy steel grade, featuring excellent high-temperature strength, creep resistance, hydrogen embrittlement resistance, and superior weldability. As a Weld Neck (WN) flange with Raised Face (RF), it is specially designed for high-temperature, high-pressure, and hydrogen-containing industrial piping systems, providing strong structural integrity and reliable sealing performance, widely applied in power plants, petrochemical, refinery, and other critical fields where stable operation under harsh working conditions is required.

Chemical Composition Analysis (wt%)
Alloy Grade C Mn Si P S Cr Mo Fe
ASTM A182 F11 (UNS K11547) 0.15-0.25 0.30-0.60 0.50-1.00 ≤0.035 ≤0.030 1.00-1.50 0.45-0.65 Balance
Typical Mechanical Properties
Mechanical Property Standard Requirement (Min.) Typical Value
Yield Strength (Rp0.2), MPa ≥345 350-430
Tensile Strength (Rm), MPa ≥585 590-690
Elongation (A), % ≥22 23-29
Hardness (HB), Brinell ≤229 185-225
Impact Toughness (KV), J (20℃) ≥47 50-75
Max. Working Temperature 593℃ (Long-term) 593℃
Available Tests
Test Type Standard
Chemical Composition Analysis (PMI) Spectrometer (XRF/OES), ASTM E1019
Tensile & Impact Test ASTM E8/E8M, ASTM A370, Charpy V-Notch
Hardness Test ASTM E10 (Brinell), ASTM E18 (Rockwell)
Heat Treatment Inspection ASTM A182, Metallographic Microstructure Test
Hydrostatic/Pneumatic Pressure Test ASTM A182, ASME B16.5
Non-Destructive Testing (NDT) UT, RT, MT, PT (ASTM E165), Eddy Current Test
Hydrogen Embrittlement Test (Optional) ASTM F1940, NACE TM0177
Dimensional & Visual Inspection ASME B16.5, CMM, Gauge Inspection
Material Test Certificate (MTC) EN 10204 3.1/3.2
Product Application Scope
Industry Field Typical Applications
Power Plant Industry Boiler steam pipelines, superheater pipelines, high-temperature water pipelines, power generation equipment connections, boiler feedwater systems
Petrochemical & Refinery Hydrogenation reaction systems, catalytic cracking units, high-temperature oil and gas pipelines, refinery process lines, crude oil distillation equipment
Coal Chemical Industry Coal gasification pipelines, synthetic ammonia systems, high-temperature and high-pressure reaction equipment connections, coal-to-chemical process lines
Industrial Furnace Systems High-temperature furnace pipelines, heat exchanger connections, thermal treatment equipment pipelines, industrial boiler auxiliaries
Other High-Temp High-Pressure Fields Nuclear power auxiliary systems, high-temperature steam turbines, high-pressure boiler auxiliaries, offshore oil and gas platform process lines
