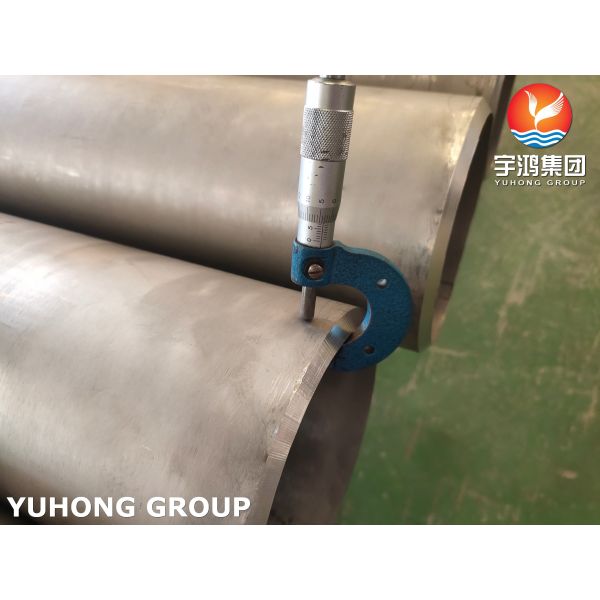

ASTM A376 TP347H Seamless Stainless Steel Pipe for High Temp & Pressure Industrial Applications
ASTM A376 TP347H Seamless Stainless Steel Pipe for High Temp & Pressure Industrial Applications
ASTM A376 TP347H Seamless Stainless Steel Pipe for High Temp & Pressure Industrial Applications
ASTM A376 TP347H Seamless Stainless Steel Pipe for High Temp & Pressure Industrial Applications
ASTM A376 TP347H Seamless Stainless Steel Pipe for High Temp & Pressure Industrial Applications
ASTM A376 TP347H Seamless Stainless Steel Pipe for High Temp & Pressure Industrial Applications
ASTM A376 TP347H Seamless Stainless Steel Pipe for High Temp & Pressure Industrial Applications
ASTM A376 TP347H Seamless Stainless Steel Pipe for High Temp & Pressure Industrial Applications
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A376 TP347H Stainless Steel Seamless Pipe
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
Depends On Quantity
Delivery Time :
7-10 Days
Packaging Details :
Wooden Cases
Standard :
ASTM A376 / ASME SA376
Material :
TP347H (UNS S34709), Austenitic Stainless Steel
Type :
Seamless Pipe (SMLS), Industrial Grade
Surface :
Annealed & Pickled (A/P), 2B, Bright Annealed (BA) optional
OD :
1/8" – 24" (3.18mm – 610mm), common: 12.7-159mm
WT :
SCH 5S – SCH 160, XXS (1.0mm – 20mm), common: 1.65-5.0mm
Length :
6m, 12m, Random Length, Cut-to-Length (tolerance ±5mm)
Ends :
Plain End (PE), Beveled End (BE, 37°), Deburred
Description
ASTM A376 TP347H Seamless Stainless Steel Pipe for High Temp & Pressure Industrial Applications
Product Brief

ASTM A376 / ASME SA376 TP347H (UNS S34709) seamless stainless steel pipe, austenitic material stabilized with niobium (Nb) + tantalum (Ta), is designed for high-temperature and high-pressure industrial scenarios. It features excellent creep resistance, anti-intergranular corrosion, and stable mechanical properties at elevated temperatures (≤900℃). Made of seamless process, it has precise dimensions, high pressure-bearing capacity, and is widely used in boilers, heat exchangers, and high-temperature fluid transport systems in petrochemical, power generation and other industries.

Chemical Composition (wt%)
Material Grade C Cr Ni Nb+Ta Mn Si P S
TP347H (UNS S34709) 0.04-0.10 17.0-19.0 9.0-13.0 8*C-1.00 ≤2.00 ≤1.00 ≤0.045 ≤0.030
Available Tests
Test Type Standard
Eddy Current Test (ECT) ASTM A376
Hydrostatic Pressure Test ASTM A376
Tensile Strength & Creep Test ASTM E8/E8M, ASTM E139
Hardness Test ASTM E10
Chemical Composition Test (PMI) Spectrometer
Corrosion Resistance Test ASTM G48
Core Product Advantages
  1. High-Temperature Performance: TP347H stabilized with Nb+Ta, excellent creep resistance at high temperature (≤900℃), no deformation or failure after long-term service under high temp & pressure.
  2. Corrosion Resistance: Strong anti-intergranular corrosion and medium corrosion, suitable for harsh industrial environments such as petrochemical and high-temperature fluid transport.
  3. Pressure-Bearing Capacity: Seamless production process, uniform structure, high tensile strength and toughness, strong pressure-bearing capacity, not easy to burst or leak.
  4. Dimensional Precision: Strictly comply with ASTM A376 standard, precise OD/WT tolerance, good interchangeability, easy to assemble with other components.
  5. Durability: Nb+Ta stabilization enhances material stability, service life is 2-3 times that of ordinary stainless steel pipes, reducing maintenance and replacement costs.
  6. Versatility: Widely used in boilers, heat exchangers, petrochemical, power generation and other industries, supporting custom specifications and end treatments.
