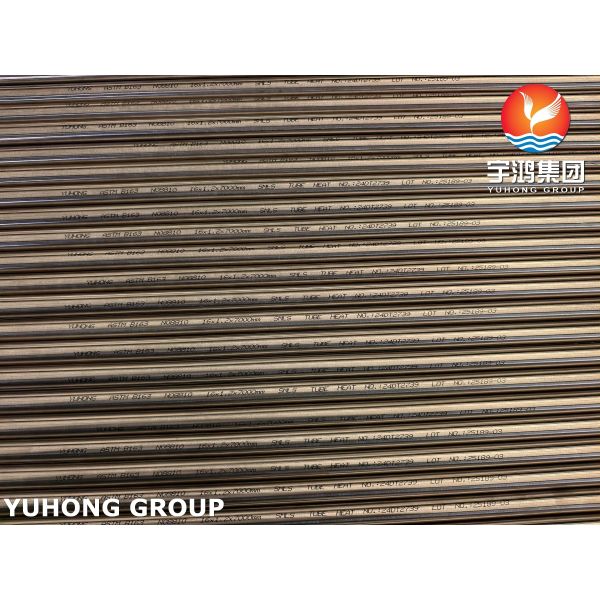

ASTM B163 N08810 Nickel Alloy Tube for High-Temperature & Corrosion-Resistant Applications
ASTM B163 N08810 Nickel Alloy Tube for High-Temperature & Corrosion-Resistant Applications
ASTM B163 N08810 Nickel Alloy Tube for High-Temperature & Corrosion-Resistant Applications
ASTM B163 N08810 Nickel Alloy Tube for High-Temperature & Corrosion-Resistant Applications
ASTM B163 N08810 Nickel Alloy Tube for High-Temperature & Corrosion-Resistant Applications
ASTM B163 N08810 Nickel Alloy Tube for High-Temperature & Corrosion-Resistant Applications
ASTM B163 N08810 Nickel Alloy Tube for High-Temperature & Corrosion-Resistant Applications
ASTM B163 N08810 Nickel Alloy Tube for High-Temperature & Corrosion-Resistant Applications
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B163 N08810
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
Depends On Quantity
Delivery Time :
15-20 Days
Packaging Details :
Wooden Cases
Standard :
ASTM B163 / ASME SB163
Grade :
N08810 (UNS N08810), Incoloy 800H
Type :
Seamless Nickel Alloy Tube, Industrial Grade
Outside Diameter :
1/2” – 3” (12.7mm – 76.2mm)
Wall Thickness :
1.17mm – 4.19mm, Average/Minimum Wall Optional
Length :
6000mm – 12000mm
Description

ASTM B163 N08810 Nickel Alloy Tube for High-Temperature & Corrosion-Resistant Applications

Brief Introduction

ASTM B163 N08810 nickel alloy tube (also known as Incoloy 800H) is a high-performance austenitic nickel-iron-chromium alloy tube, strictly compliant with ASTM B163 standard. It features optimized high-temperature strength, excellent oxidation, carburization resistance and corrosion resistance, mainly used in condenser, heat exchanger and high-temperature industrial pipeline systems, suitable for long-term service under harsh working conditions up to 1150°C[3].

Chemical Composition Analysis (wt%)

Alloy Grade Ni
(Nickel)		 Fe (Iron) Cr (Chromium) C (Carbon) Mn (Manganese) Si (Silicon) Ti (Titanium) Al (Aluminum) S (Sulfur)
N08810 (UNS N08810) 30.0-35.0 Bal. 19.0-23.0 0.05-0.10 ≤1.50 ≤1.00 ≥0.85 (with Al) Al (Aluminum) ≤0.015

Typical Mechanical Properties

Mechanical Property Standard Requirement (ASTM B163) Typical Value
Yield Strength (Rp0.2), MPa ≥220 220-295
Tensile Strength (Rm), MPa ≥410 410-600
Elongation (A), % ≥20 20-44
Hardness (HB), Brinell ≤200 138-190
Density ---- 8.0 g/cm³

Available Tests

Test Type Standard
Chemical Composition Test (PMI) Spectrometer, ASTM B163
Tensile & Elongation Test ASTM E8/E8M, ASTM B163
Hardness Test ASTM E10
Hydrostatic/Flattening/Flaring Test ASTM B163
Non-Destructive Testing (NDT) Eddy Current Test (ECT), ASTM B163
Metallographic Examination ASTM B163

Product Application Scope

Industry Field Typical Applications
Petrochemical Ethylene cracking furnace radiant tubes, steam reformer tubes, conversion furnace tubes
Power Generation Nuclear power plant steam generator tubes, supercritical thermal power system components
Heat Exchange Condenser tubes, heat exchanger tubes, high-temperature heat exchanger components
Heat Treatment Carburizing furnace, annealing furnace heat-resistant components, muffle tank, guide rails
Other Hazardous waste incinerator heat recovery systems, high-temperature industrial pipelines
