Specifications
Brand Name :
YUHONG
Model Number :
Nickel Alloy Steel U Bend Tube
Certification :
DNV, BV, PED, LR, ABS, TS, CCS
Place of Origin :
China
MOQ :
100KGS
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
1500 tons per month
Delivery Time :
Depends on quantity

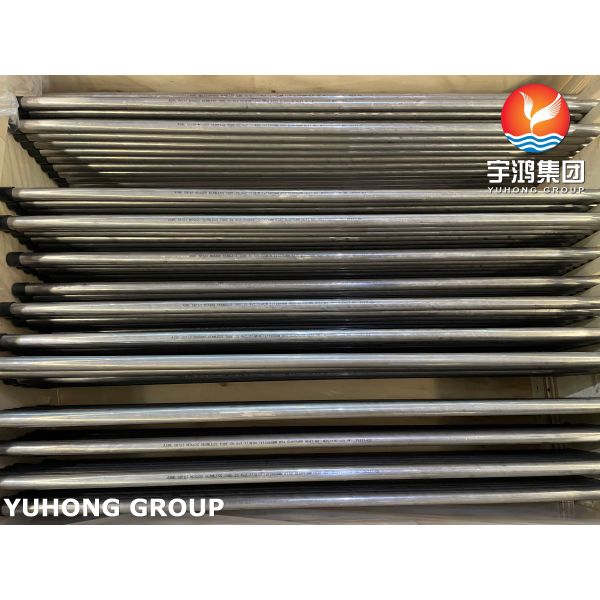

Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
STANDARD :
ASME SB163
GRADE :
N04400
OD :
1/4"(6.35), 3/8"(9.52), 1/2" (12.7), 5/8"(15.88), 3/4" (19.05), 1"(25.4) , 1-1/4"(31.75), 1-1/2"(38.1), 2" (50.8), 2-1/2"(63.5) , 3" (76.2)
Wall Thickness :
8 BWG, 10 BWG(3.4MM), 12BWG(2.77MM), 14BWG(2.11MM) , 16BWG(1.65MM), 18BWG(1.24MM), 20BWG(0.89MM) , 22BWG(0.71MM)
Length :
Customized
Usage :
Heat Exchanger/Boiler/Petroleum
Description

Heat Exchanger Tube ASME SB163 Nickel Alloy N04400 Monel Alloy 400 Seamless U Bend Tube

ASME SB163 specifies the material specifications for seamless nickel and nickel alloy condenser and heat exchanger tubes:
N04400 (UNS N04400) is Monel Alloy 400.
Its basic composition is 67% nickel and 30% copper, with trace amounts of iron, manganese, and other elements.
It exhibits excellent corrosion resistance. It performs well in many environments, especially in seawater, brine, sulfuric acid, hydrofluoric acid, and alkaline solutions.
It maintains good mechanical properties over a wide temperature range from low temperatures to approximately 1000°F (540°C).

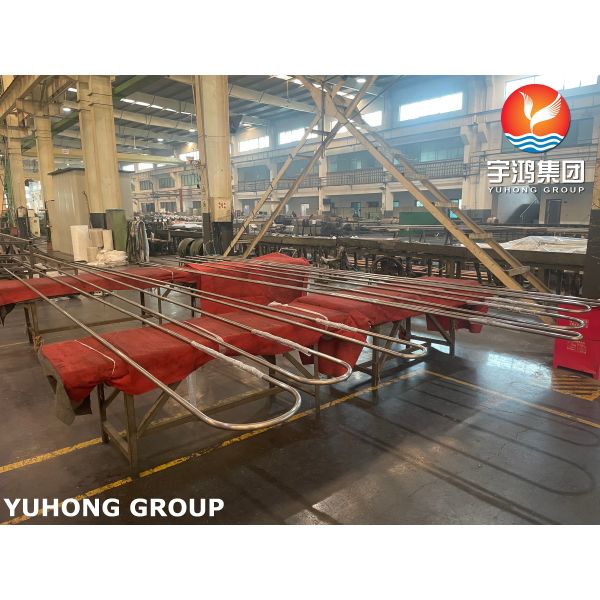

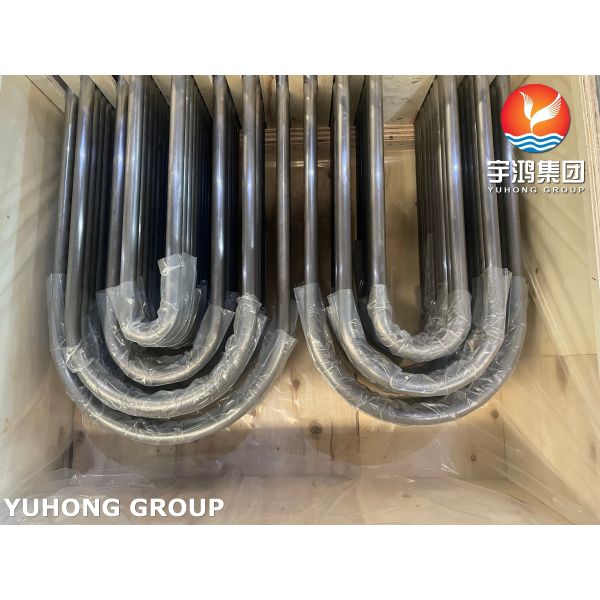

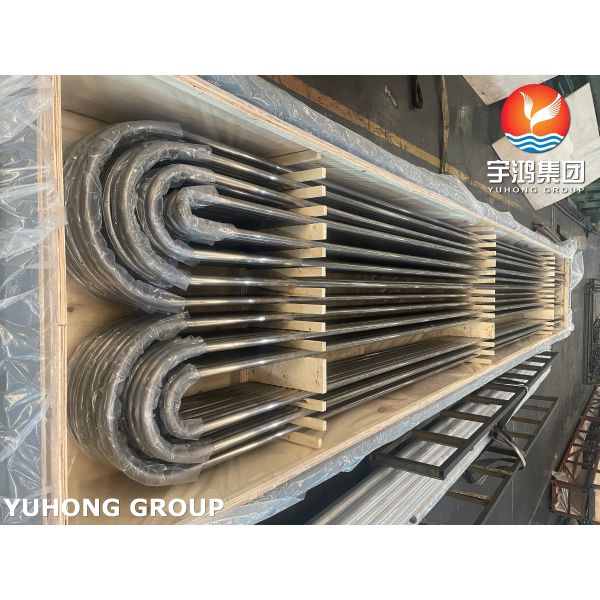

U Bend Tube Noted:
The U-shaped tubes made from this material are effective in shell-and-tube heat exchangers operating in harsh environments with large temperature differences.
During the design process, the radius (R) of the bend needs to be confirmed with the customer. An excessively small radius will lead to excessive thinning of the outer bend wall, wrinkling of the inner bend wall, and the generation of significant residual stress.
The spacing between the two straight tubes in the U-bend section is also important.
Ensure that the tubes can smoothly pass through the baffle orifice, and allow sufficient space for thermal expansion.

Chemical Composition (Weight % - Wt.%)
Element Minimum (%) Maximum (%) Key Role / Effect
Nickel (Ni) 63 (Balance) Base element; provides fundamental corrosion resistance & ductility.
Copper (Cu) 28 34 Enhances resistance to sulfuric & hydrofluoric acids, and seawater.
Iron (Fe) - 2.5 Impurity control; improves strength in specific environments.
Manganese (Mn) - 2 Deoxidizer during melting; improves forgeability.
Carbon (C) - 0.3 Impurity control; impacts intergranular corrosion in heated zones.
Silicon (Si) - 0.5 Improves melt fluidity and oxidation resistance.
Sulfur (S) - 0.024 Harmful impurity; severely restricted to prevent hot brittleness.
Other Elements - 0.5 (Total) Includes incidental/impurity elements.

Mechanical Properties
Property Requirement (Minimum) Typical Value Range
Tensile Strength 70 ksi (480 MPa) 75-85 ksi (515-585 MPa)
Yield Strength (0.2% Offset) 25 ksi (170 MPa) 28-35 ksi (195-240 MPa)
Elongation (in 2 inches or 50mm) 35% 40-50%
Hardness (Rockwell) Not Specified Typically B65 - B85
Hydrostatic Test Pressure Required per formula -

Application:

Seawater cooling pipework & systems


Shipboard heat exchangers & condensers


Desalination plant evaporator & heater tubes


Offshore platform piping systems


Chemical & Petrochemical Processing


Heat exchangers & reactors handling sulfuric and hydrofluoric acid (HF)


Oil & Gas Production & Refining


Heat exchangers in sour gas
