Specifications
Brand Name :
YUHONG
Model Number :
ASTM A312 TP316L (UNS S31603)
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Price :
NEGOTIABLE
Payment Terms :
T/T,L/C
Supply Ability :
1000Tons Per Month
Delivery Time :
Depends On Quantity
Packaging Details :
WOODEN CASES
Stand :
ASTM A312 / ASME SA312
Material :
TP316L (UNS S31603), Austenitic
Type :
Seamless (SMLS), Industrial Steel Pipe
OD(Outside diameter) :
1/8" – 24" (3.18mm – 610mm)
WT(Wall thickness) :
SCH 5S – SCH 160, XXS
Length :
6m or Cut-to-Length
Ends :
Plain End (PE), Beveled End (BE)
Applications :
Chemical, Petrochemical, Marine, Desalination, Industrial Piping
Description

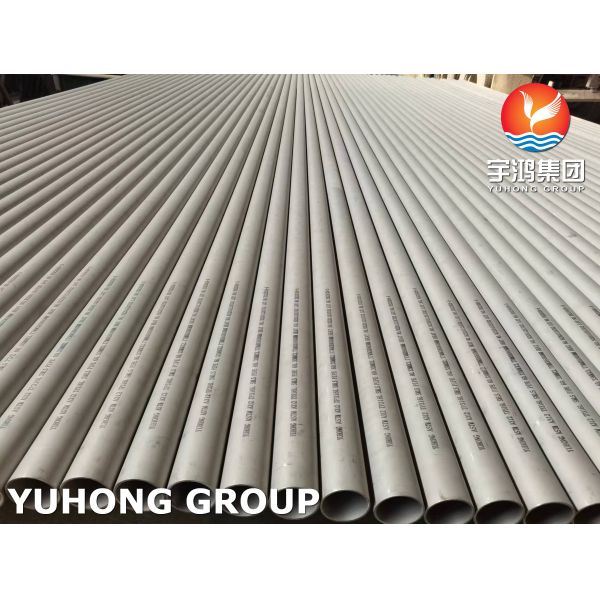

ASTM A312 TP316L Austenitic Seamless Stainless Industrial Steel Pipe


Core Chemical Composition (wt%)


Strictly in line with ASTM A312 & TP316L standard, ultra-low carbon formulation for enhanced corrosion resistance, no welding sensitization risk:
Element Chemical Symbol Content Range (wt%)
Chromium Cr 16.00 - 18.00
Nickel Ni 10.00 - 14.00
Molybdenum Mo 2.00 - 3.00
Carbon C ≤ 0.03
Manganese Mn ≤ 2.00
Silicon Si ≤ 1.00
Phosphorus P ≤ 0.045
Sulfur S ≤ 0.030
Iron Fe Remainder


Mechanical Properties Details (Compliant with ASTM A312)

Mechanical Indicator
Unit
Minimum Requirement
Tensile Strength
MPa
≥ 485
Yield Strength (0.2% Offset)
MPa
≥ 170
Elongation (in 50mm)
%
≥ 40
Hardness (Brinell)
HB
≤ 201
Impact Toughness (at 20°C)
J
≥ 100


Superior Performance Characteristics


  • Superior All-Round Corrosion Resistance: Molybdenum-enhanced alloy system outperforms 304/304L; highly resistant to pitting, crevice corrosion, intergranular corrosion and general corrosion in chloride-rich, acidic, alkaline, saltwater and harsh chemical media.
  • Low-Carbon Welding Advantage: ≤0.03% carbon content eliminates sensitization during welding/thermal processing; no post-weld heat treatment (PWHT) required for most industrial applications, reducing fabrication costs and time.
  • Excellent High Pressure & Temperature Performance: Designed for high-pressure piping systems; maintains stable mechanical properties at continuous high temperatures up to 815°C and intermittent use up to 870°C, suitable for high-pressure steam and thermal fluid transfer.
  • Outstanding Mechanical Strength: Tensile strength ≥485 MPa, yield strength ≥170 MPa, elongation ≥40%; 100% seamless structure avoids weld seam weaknesses, with higher pressure-bearing capacity and anti-fatigue performance.
  • Precise Dimensional Tolerance: Cold drawn/hot finished seamless process, uniform wall thickness, smooth inner/outer surface; low flow resistance, suitable for precision fluid and gas transfer in industrial piping systems.
  • Excellent Weldability & Formability: Easy to weld via TIG/MIG/MMA processes; good cold/hot formability for bending, flanging, expanding and threading, adaptable to various on-site fabrication needs.
  • Durable & Oxidation Resistant: Resists high-temperature oxidation and chemical aging in harsh industrial environments; no rust or material degradation, significantly reducing maintenance and replacement costs.
  • Sanitary Optional Surface: Food-grade polished finish (2B/No.4/8K) available, no heavy metal leaching, meets GMP/3A sanitary standards for food, beverage and pharmaceutical applications.


Additional Product Advantages


  • 100% Seamless Structure: No weld seam defects, higher pressure-bearing capacity, anti-fatigue and anti-cracking performance for extreme working conditions.
  • Customizable Specifications: Outer Diameter 10mm - 610mm, Wall Thickness 1.0mm - 40mm; cut-to-length, threading, beveling and coating services available as customer requirements.
  • Multiple Surface Finishes: Annealed & Pickled (A/P), Bright Annealed (BA), 2B, No.4, 8K Mirror Polished, epoxy coating - match different industrial application scenarios.
  • Full Strict Quality Inspection: 100% hydrostatic pressure test, ultrasonic flaw detection (UT), PMI positive material identification, dimensional precision inspection, surface quality test.
