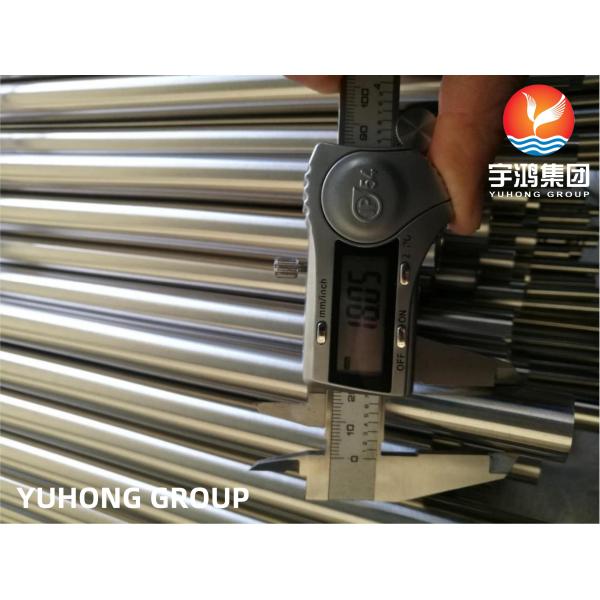

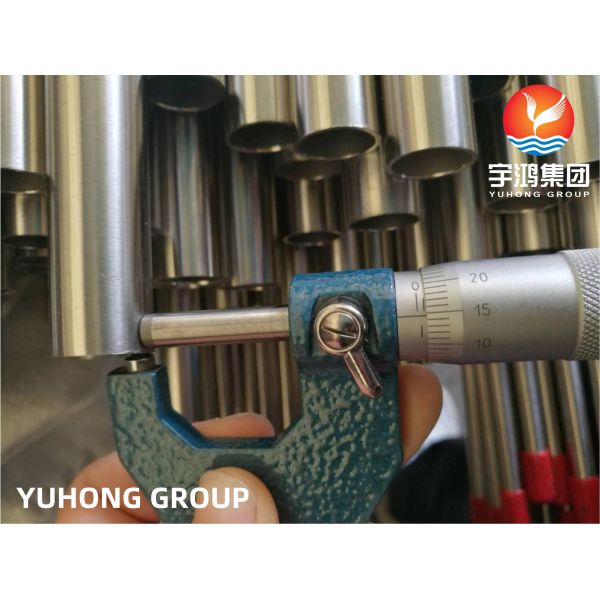

ASME SA213 TP321 Bright Tube BA For High Temperature In The Food Industries
ASME SA213 TP321 Bright Tube BA For High Temperature In The Food Industries
ASME SA213 TP321 Bright Tube BA For High Temperature In The Food Industries
ASME SA213 TP321 Bright Tube BA For High Temperature In The Food Industries
ASME SA213 TP321 Bright Tube BA For High Temperature In The Food Industries
ASME SA213 TP321 Bright Tube BA For High Temperature In The Food Industries
ASME SA213 TP321 Bright Tube BA For High Temperature In The Food Industries
ASME SA213 TP321 Bright Tube BA For High Temperature In The Food Industries
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA213 TP321
Certification :
ISO,SGS,BV,ISO & SGS,ISO/CE/SGS
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A
Supply Ability :
15000tons/month
Delivery Time :
5-80 Days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Products :
Stainless Steel Bright Tube
Type :
Seamless
Length :
3000mm~6000mm,6 Meters or customized,18000max.,11.8m or as required.,8m
Thickness :
0.4-30mm,1.0mm,0.6mm~2500mm,1mm-60mm,0.6 to 25 mm
Packing :
Wooden box packaging
Description

ASME SA213 TP321 Bright Tube BA For High Temperature In The Food Industries


ASME SA213 TP321 bright tube is a high-standard seamless austenitic stainless steel tube used in critical equipment such as boilers and pressure vessels. Made of titanium (Ti)-stabilized 321 stainless steel, it offers excellent resistance to intergranular corrosion and excellent high-temperature performance.

It is widely used in critical equipment such as power plant boilers, the petrochemical industry, and the food industries, which require extremely high material properties and surface finishes. Through a bright annealing (BA) process, its surface is free of scale and decarburization, forming an extremely pure, dense, and uniform chromium passivation film.

This not only provides a superior corrosion resistance compared to ordinary pickled tubes, but also offers a smooth, flawless surface that resists contaminant adhesion and residue, making it extremely easy to clean and sterilize, meeting the requirements of industries such as food, and semiconductors.


ASTM A213 SS 321 Equivalent:

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
SS 321 S32100 321S31 58B, 58C 1.4541 X6CrNiTi18-10 2337 SUS 321


Chemical Composition

Grade C Mn Si P S Cr N Ni Ti
SS 321 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 19.00 0.10 max 9.00 - 12.00 5(C+N) – 0.70 max


Mechanical Properties

Grade Tensile Strength
(MPa) min		 Yield Strength
0.2% Proof (MPa) min		 Elongation
(% in 50mm) min		 Hardness
Rockwell B
(HR B) max		 Brinell
(HB) max
321 515 205 40 95 217


Physical Properties

Grade Density
(kg/m3)		 Elastic Modulus
(GPa)		 Mean Co-eff of
Thermal Expansion (µm/m/°C)		 Thermal Conductivity
(W/m.K)		 Specific Heat
0-100°C
(J/kg.K)		 Elec Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C At 100°C At 500°C
321 8027 193 16.6 17.2 18.6 16.1 22.2 500 720




Choose pickled tube when:

Cost is the primary consideration.
Used in general industrial environments, such as chemical piping and structural support components.
Low aesthetic requirements.
The pipe may undergo subsequent processing, such as welding and bending, which may damage the surface.


Choose bright annealed (BA) tube when:

Extremely high corrosion resistance is required, especially in harsh environments such as the chemical and marine industries.
High cleanliness requirements to prevent product contamination, such as in the food, semiconductor industries.
Aesthetics are important, such as for visible decoration or high-end equipment components.
Media tend to deposit or adhere to the surface, and a smooth surface is easier to clean and maintain (such as food and dairy piping)


Application

Boiler superheater/reheater tubes
Economizer tube bundles
U-tube heat exchangers (TEMA standard)
Hydrogenation reactor feed/discharge lines
Auxiliary steam generator tube bundles
High-temperature molten salt heat exchangers (solar thermal power generation)
