Specifications
Brand Name :
YUHONG
Model Number :
ASME SB171 C70600
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
500KGS
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
According To Client's Request
Delivery Time :
10-90 Days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SB171
Material :
Nickel Alloy Steel
Material Grades :
C70600
Size :
Customizable
Type :
Ring
Drawing :
Customizable
Description

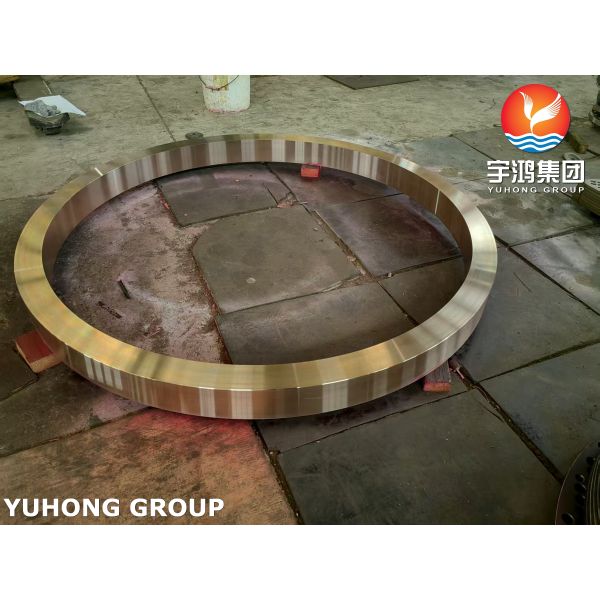

ASME SB171 C70600 Copper Nickel Alloy Ring For Seawater Corrosion Resistance

These ring-shaped industrial components, conforming to ASME SB171 standards and made of seawater-resistant C70600 copper-nickel alloy (90-10 CuNi), are primarily used for sealing or connecting in harsh environments such as marine and desalination plants.


copper-nickel alloy

90-10 copper-nickel alloy (C70600) is a high-performance corrosion-resistant alloy with copper as the base and about 10% nickel and 1-2% iron added.

Its core characteristics are extremely excellent resistance to seawater corrosion, resistance to marine organism adhesion, and good machinability. It is one of the preferred materials for pipelines and key components in ships, seawater desalination plants and marine engineering.

Chemical Composition Of C70600

Chemical Composition % Cu Pb Zn Fe Ni Mn
Rem. 0.02 0.5 1.0-1.8 9.0-11.0 1.0

Physical Property Of C70600

Properties Metric Imperial
Density 8.94 g/cm3 0.323 lb/in3

Mechanical Property Of C70600

Properties Metric Imperial
Tensile strength, ultimate 303-414 MPa 43900-60000 psi
Tensile strength, yield (depending on temper) 110-393 MPa 16000-57000 psi
Elongation at break (in 254 mm) 42% 42%
Machinability (UNS C36000 (free-cutting brass) = 100%) 20% 20%
Shear modulus 52.0 GPa 7540 ksi
Poisson's ratio 0.34 0.34
Elastic modulus 140 GPa 20300 ksi

Application:

Marine and Marine Engineering: Flange sealing rings for seawater piping systems, pump and valve connections.

Desalination Plants: Connections and sealing components for heat exchangers and evaporator modules.

Coastal Power Plants: Sealing components for condensers and cooling water systems.

Chemical and Oil & Gas Processing: Equipment connections for handling corrosive media (especially chloride-containing media).
