ASME U Stamp Jacketed Reactor Vessel | SA516 Gr.70 with Agitator | For Heating & Cooling Processes

Yuhong Holding Group Co., Ltd. designs and manufactures ASME U Stamp certified pressure vessels for global industries. We specialize in jacketed reactors, storage tanks, and mixers that require precise temperature control. Our full-service approach covers custom engineering, fabrication, and supply of all ancillary fittings and internals.

Product Overview: Jacketed Reaction Vessel for Controlled Processing
This jacketed pressure vessel is engineered as a core piece of equipment for batch processes where consistent heating or cooling is vital. The defining external jacket enclosure allows thermal media to circulate around the main chamber, enabling efficient, uniform temperature management. Constructed from ASME SA516 Grade 70 carbon steel and certified to ASME Section VIII standards, it ensures safety and reliability.

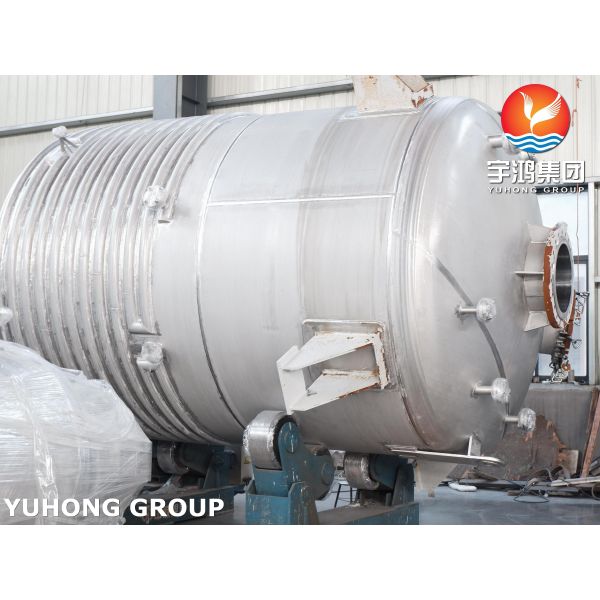

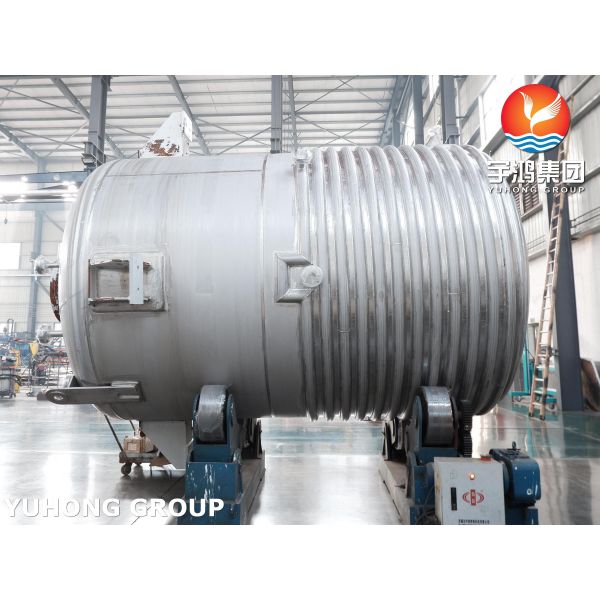

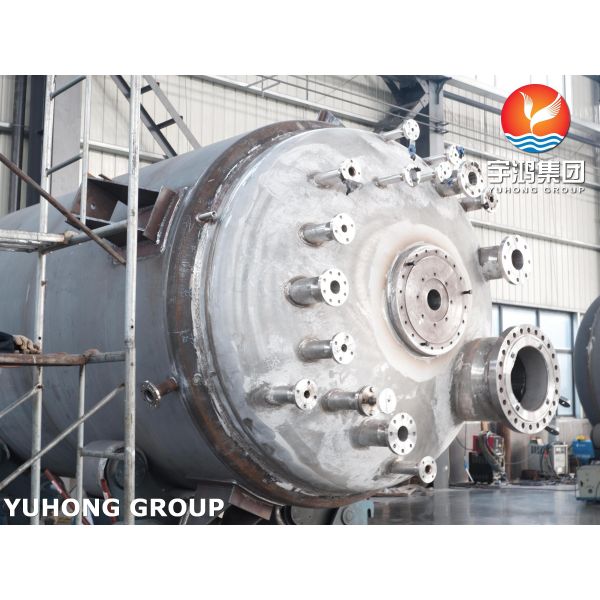

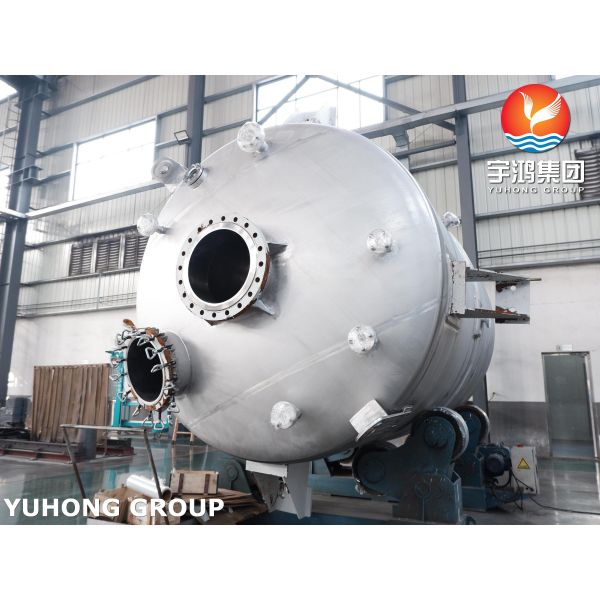

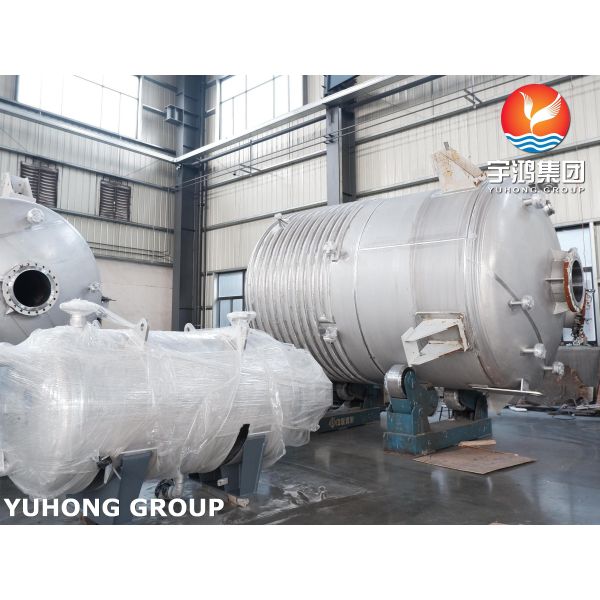

Visual Guide & Component Breakdown

Core Advantages and Engineering Value

Highly Efficient Temperature Control: The jacketed design provides a large heat exchange surface area, ensuring that process materials reach the target temperature quickly and uniformly, crucial for consistency in chemical reactions, fermentation, or food processing.

Enhanced Safety and Compliance: As an ASME U-stamped certified device, its design, materials, and manufacturing are fully traceable, meeting the most stringent international safety regulations, making it particularly suitable for the chemical and pharmaceutical industries.

Exceptional Process Flexibility: It can integrate various internal components such as agitators, internal coils, baffles, and spray balls (CIP) to meet the needs of complex processes such as mixing, suspension, and in-line cleaning.

Reduced Lifecycle Costs: The robust structure and easily accessible manhole reduce maintenance difficulty and downtime.

Typical Applications

Chemical Reactions and Synthesis: Batch reactors requiring heating or cooling.

Pharmaceuticals and Biotechnology: Fermentation tanks, crystallization tanks, solution preparation tanks.

Food and Beverages: Ingredient mixing tanks, heating and cooking tanks, product storage tanks.

Cosmetics and Chemicals: Emulsification, mixing, and ripening processes.

To obtain a customized solution, please send your process parameters (volume, pressure, temperature, medium) and any special requirements (such as jacket type, stirring method, internal surface treatment) to jimmy@steelseamlesspipe.com. Our engineers will provide you with a technical solution and quotation consistent with the product standards shown.
