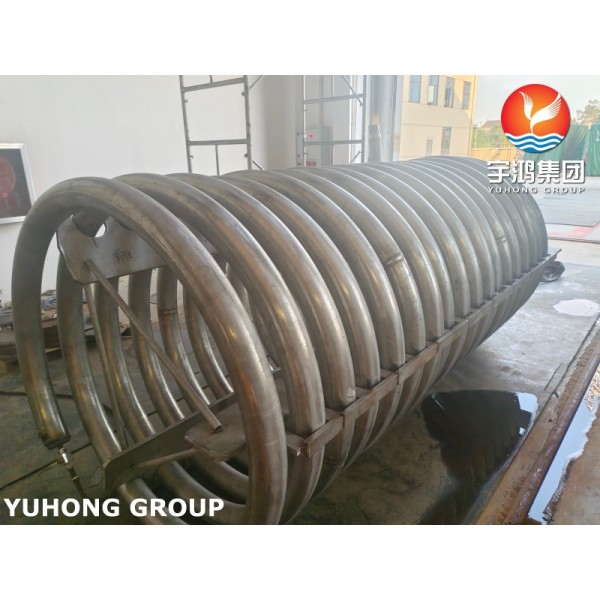

STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
Specifications
Material :
TP304, TP304L,TP316, TP316L, TP310S..
SURFACE :
Polished, Pickled, Bright Annealed
Standard :
ASTM,ASME,JIS,EN...
TYPE :
SEAMLESS,WELDED
Brand Name :
YUHONG
Model Number :
ASTM A312, ASME SA312
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100KGS
Payment Terms :
L/C, T/T
Delivery Time :
7DAYS
Packaging Details :
PLYWOOD CASE,BUNDLE,WOVEN BAG
Length :
AS PER DRAWING
OD :
1/2" TO 10"
Description

STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT

The coiled pipe unit can run thousands of meters of continuous joint-free steel pipes (diameter 9~88.9mm) into the production pipe of an oil and gas well to complete specific workover operations such as well cleanout, fishing, fracturing, acidification, etc. or into its casing for logging operations or direct.Coil heaters can be closely wound to provide concentrated heat or can be stretched to fulfill distributed wattage needs. Coil heaters can also accommodate integrated thermocouples for precise temperature control and quick response.

Bent and formed stainless steel pipe is used in a variety of applications, including:

  • Manifold assemblies for the transportation industry
  • Hydraulic fluid supply lines for industrial purposes
  • Bumpers to protect OEM products
  • Housing for water monitoring systems
  • Tubular handles used in OEM instruments and machinery
Comparison with Other Heater Types
Feature Coil-Shaped Tubular Heater Straight Tubular Heater Open Coil Heater (Exposed Wire)
Structure Metal tube bent into a coil Straight metal tube Bare, exposed resistance wire coiled around insulators
Robustness Very High. Protected from physical contact and environment. High. Protected but less surface area in a compact space. Low. Exposed and fragile.
Watt Density Very High Moderate High
Typical Use Air heating, high-temp platens Immersion in liquids, surface mounting on tanks Toasters, domestic space heaters, non-hazardous air ducts
Safety Very Safe. Sheath prevents electrical contact. Very Safe. Less Safe.

Grades:

304, 316L, 310S, and others as specified by the customer.

Chemical Composition of ASTM A312 TP310S

Grade C Mn Si P S Cr Mo Ni N
310 min.
max.		 -
0.25		 -
2.00		 -
1.50		 -
0.045		 -
0.030		 24.0
26.0		 - 19.0
22.0
310S min.
max.		 -
0.08		 -
2.00		 -
1.50		 -
0.045		 -
0.030		 24.0
26.0		 - 19.0
22.0

Mechanical Properties of ASTM A312 310S

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB)
max
310 515 205 40 95 217
310S 515 205 40 95 217
