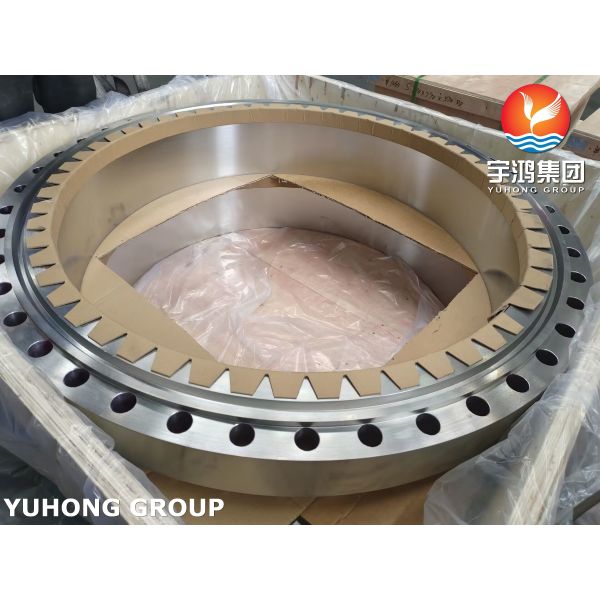

ASTM A182 F310 WN RTJ Face Stainless Steel Pipe Forged Flange for Petrochemical & Power Plants​
ASTM A182 F310 WN RTJ Face Stainless Steel Pipe Forged Flange for Petrochemical & Power Plants​
ASTM A182 F310 WN RTJ Face Stainless Steel Pipe Forged Flange for Petrochemical & Power Plants​
ASTM A182 F310 WN RTJ Face Stainless Steel Pipe Forged Flange for Petrochemical & Power Plants​
ASTM A182 F310 WN RTJ Face Stainless Steel Pipe Forged Flange for Petrochemical & Power Plants​
ASTM A182 F310 WN RTJ Face Stainless Steel Pipe Forged Flange for Petrochemical & Power Plants​
ASTM A182 F310 WN RTJ Face Stainless Steel Pipe Forged Flange for Petrochemical & Power Plants​
ASTM A182 F310 WN RTJ Face Stainless Steel Pipe Forged Flange for Petrochemical & Power Plants​
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A182 F310
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 tons per month
Delivery Time :
15-30days
Packaging Details :
Plywooden Case /Iron Case
Standard​ :
ASTM A182/ASME SA182
Material Grade​ :
F310
Flange Type​ :
Weld Neck (WN)
Face Type​ :
Ring Type Joint (RTJ)
Pressure Class​ :
Class 150-2500
Application​ :
High Temp Piping/Chemical Plant/Refinery
Description

ASTM A182 F310 WN RTJ Face Stainless Steel Pipe Forged Flange for Petrochemical & Power Plants​

YUHONG GROUP​​ is a leading manufacturer of ​​high-performance industrial flanges​​ with over 35 years of expertise in serving the global energy and chemical sectors. Our ​​ASTM A182 F310 Weld Neck RTJ Flanges​​ are precision-engineered for critical applications in petrochemical plants and power generation facilities, combining superior high-temperature resistance with reliable sealing performance under extreme pressure conditions.

​​Chemical Composition of F310

Element​​ ​​Requirement (%)​​ ​​Notes​​
​​Carbon (C)​​ 0.08–0.12 Controlled carbon range
​​Manganese (Mn)​​ 0.30–0.60
​​Phosphorus (P)​​ 0.035 max
​​Sulfur (S)​​ 0.030 max
​​Silicon (Si)​​ 0.60 max
​​Chromium (Cr)​​ 24.00–26.00 High chromium for oxidation resistance
​​Nickel (Ni)​​ 19.00–22.00 Austenite stabilizer
​​Copper (Cu)​​ 0.50 max
​​Molybdenum (Mo)​​ 3.00–4.00 Enhances corrosion resistance

​​Heat Treatment Requirements for F310

​​Parameter​​ ​​Requirement​​ ​​Notes​​
​​Grade​​ F310 Austenitic stainless steel
​​UNS Number​​ S31000
​​Heat Treat Type​​ Solution treat and quench
​​Solutioning Temperature​​ 1900°F [1040°C]
​​Cooling Media​​ Liquid Rapid quenching
​​Quenching Temperature​​ Below 500°F [260°C] Must be cool below this temperature
​​Tempering Temperature​​ Not applicable

​​Mechanical Properties of F310

Property​​ ​​Requirement​​ ​​Notes​​
​​Grade​​ F310 Austenitic stainless steel
​​UNS Designation​​ S31000
​​Tensile Strength, min​​ 75 ksi [515 MPa]
​​Yield Strength, min​​ 30 ksi [205 MPa] 0.2% offset method
​​Elongation in 2 in. or 50 mm, min​​ 30%
​​Reduction of Area, min​​ 50%
​​Hardness​​ ... No specific requirement listed

ASTM A182 F310 WN RTJ Stainless Steel Flange Application Advantages

  • 1. Outstanding high-temperature performance
  • 2. Sealing reliability under harsh working conditions
  • 3. Wide adaptability to corrosive environments
  • 4. Ease of installation and maintenance
  • 5. Full life cycle cost advantage
