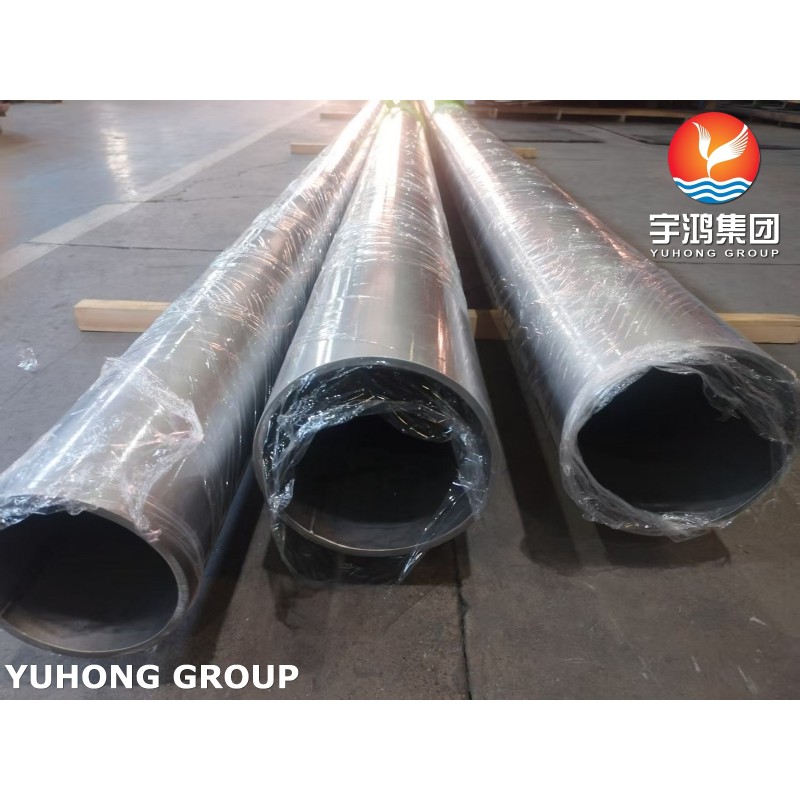

Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM Boiler & Pressure Vessel
Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM Boiler & Pressure Vessel
Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM Boiler & Pressure Vessel
Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM Boiler & Pressure Vessel
Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM Boiler & Pressure Vessel
Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM Boiler & Pressure Vessel
Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM Boiler & Pressure Vessel
Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM Boiler & Pressure Vessel
Specifications
Place of Origin :
CHINA
MOQ :
100KGS
Supply Ability :
1000Ton per month
Delivery Time :
10-15 DAYS
Material :
UNS N08825 / Incoloy 825 / Alloy 825
Size :
According to client's request
NDT :
Hydro Test &Eddy Test
Brand Name :
YUHONG
Model Number :
ASME SB444 UNS N06625 UNS N06852
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Price :
Negotiable
Payment Terms :
L/C, T/T
Packaging Details :
Wooden Box package
Spec :
ASTM B444
Type :
Seamless or Welded
Package :
Ply-wooden Case /Iron Case/ Bundle With Plastic Cap
Description

Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM


Nickel Alloy UNS N06625 is a nonmagnetic nickel-based Alloy that is highly resistant to corrosive environments and specifically resistant to pitting corrosion, crevice corrosion and corrosion cracking. The mechanical properties of the Alloy ensure excellent performance under the most severe conditions both at extremely low cryogenic temperatures and temperatures of up to 1100°C. Alloy 625 provides superior corrosion resistance in aggressive environments coupled with excellent strength and weldability.

The alloy 625 tubes, which are widely used for superheater or heat exchanger tube are generally manufactured as per ASTM B444 (ASME SB-444) UNS N06625. It is a typical nickel-chromium-molybdenum-columbium alloy, which is commercially known as a proprietary brand of “Inconel alloy 625“. The cold-worked alloy 625 seamless tubes may be furnished in two grades of different heat-treated conditions: Grade 1 (annealed) – tubes are normally employed in service temperatures up to 1100°F (593°C); Grade 2 (solution annealed) – material is normally employed in service temperatures above 1100°F (593°C) when resistance to creep and rupture is required. Generally, unless otherwise specified, Grade 1 will be supplied.

ASTM B444 UNS N06625 Pipe Description:

Standard ASTM B444, ASME SB444
Tube Type Solution Annealed and Pickling, Bright Annealing
Alloy UNS N06625, Alloy 625
Finishes Slolution Annealed and Pickling, Bright Annealing
Outside Diameter 0.188″ – 1.500″
Thickness 0.028″ – 0.083″

ASTM B444 UNS N06625 Composition:

Alloy % Ni Cr Mo Nb+Ta Fe Al Ti C Mn Si P S Co
N06625 Min. 58.0 20.0 8.0 3.15
– Max. 23.0 10.0 4.15 5.0 0.40 0.40 0.10 0.50 0.50 0.015 0.015 1.0

ASTM B444 UNS N06625 Mechanical Properties:

Alloy Tensile strength Yield strength Elongation in 50.8mm Brinell hardness
Min ksi (Mpa) Min ksi (Mpa) Min, % HB
N06625 Annealed 120 (827) 60 (414) 30 ≤220
N06625 Solution Annealed 100 (690) 40 ( 276) 30 ≤220

ASTM B444 UNS N06625 Application :

Oil & Gas Industry
Chemical & Petrochemical Processing
Power Generation Industry
Marine & Offshore Engineering
Nickel Alloy Pipe ASME SB444 Inconel 625 GR.1 Seamless 2''*SCH80*1000MM Boiler & Pressure Vessel
