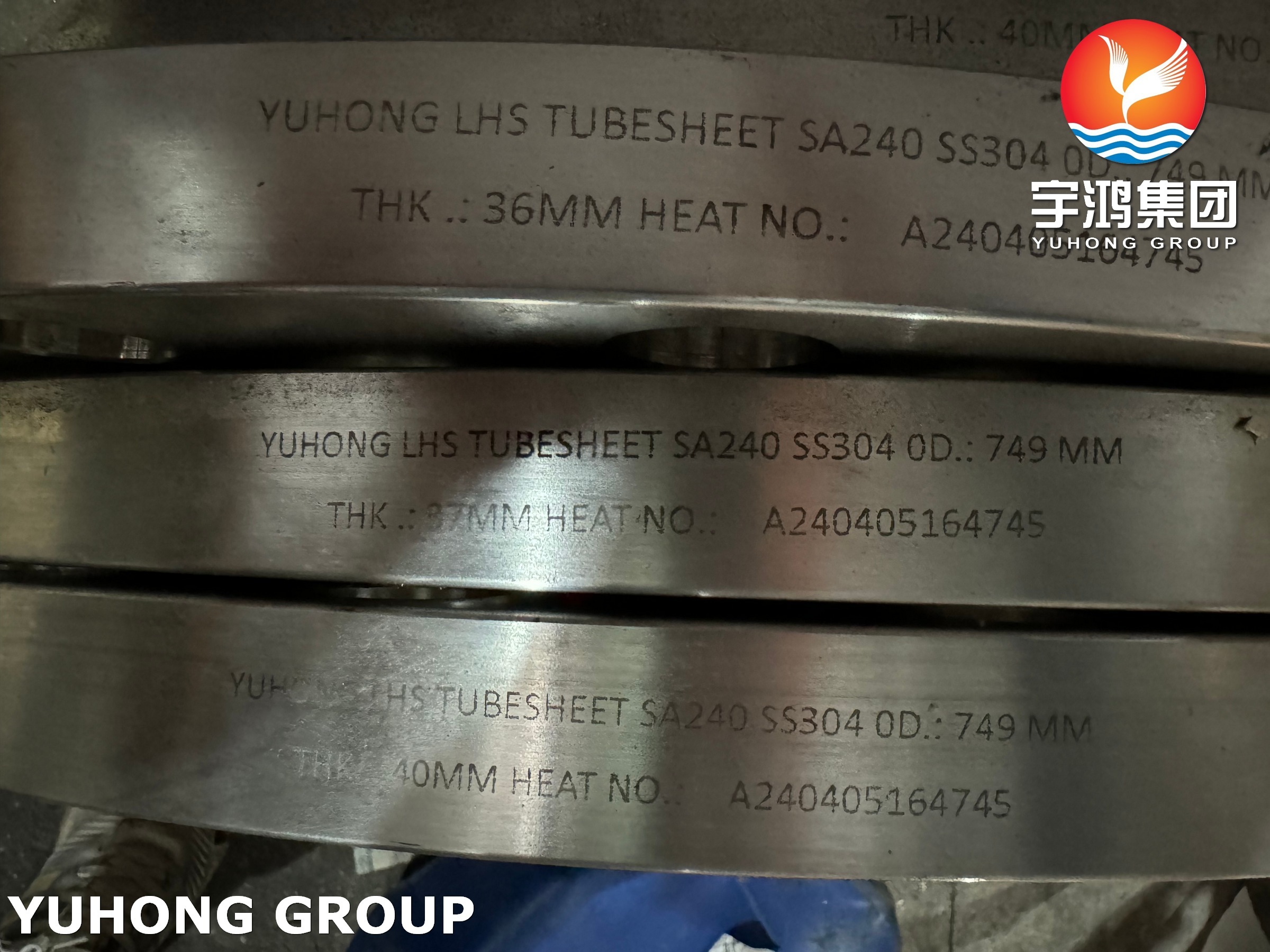

ASME SA240 304 Stainless Steel Tubesheet with Precision CNC Drilled Holes for Heat Exchanger Core Compliant with TEMA Standards
ASME SA240 304 Stainless Steel Tubesheet with Precision CNC Drilled Holes for Heat Exchanger Core Compliant with TEMA Standards
ASME SA240 304 Stainless Steel Tubesheet with Precision CNC Drilled Holes for Heat Exchanger Core Compliant with TEMA Standards
ASME SA240 304 Stainless Steel Tubesheet with Precision CNC Drilled Holes for Heat Exchanger Core Compliant with TEMA Standards
ASME SA240 304 Stainless Steel Tubesheet with Precision CNC Drilled Holes for Heat Exchanger Core Compliant with TEMA Standards
ASME SA240 304 Stainless Steel Tubesheet with Precision CNC Drilled Holes for Heat Exchanger Core Compliant with TEMA Standards
ASME SA240 304 Stainless Steel Tubesheet with Precision CNC Drilled Holes for Heat Exchanger Core Compliant with TEMA Standards
ASME SA240 304 Stainless Steel Tubesheet with Precision CNC Drilled Holes for Heat Exchanger Core Compliant with TEMA Standards
Specifications
MOQ :
1 PCS
Delivery Time :
20-80 DAYS
Grooves per Hole :
2 or 3 precision grooves
Model Number :
ASME SA240 TP304
Max Thickness :
≤75 mm
Payment Terms :
T/T,L/C
Price :
NEGOCIATED
Pitting Resistance :
PREN≈19
Supply Ability :
500 TONS
Brand Name :
YUHONG
Material Specifications :
ASME SA240 Type 304 / ASTM A240 Grade 304 (SS304)
Certification :
ASME, ABS, DNV-GL , BV, LR , KR, CCS, PED, TUV, ISO9001, AD2000
Max Design Pressure :
≤30bar(~ 435 psi)
Place of Origin :
CHINA
Tube Hole Tolerance :
+0.05 / -0.00 mm
Packaging Details :
IRON FRAME+PLYWOODEN CASE OR WOVEN BAG
Description
ASME SA240 304 Stainless Steel Tubesheet | Rolled Plate Heat Exchanger Core

Meta Description: Custom ASME SA240 Type 304 stainless steel plate tubesheets for light to medium duty heat exchangers. Fast 1-2 weeks lead time, precision CNC drilled & grooved to TEMA standards. Contact jimmy@steelseamlesspipe.com for a quote.

Precision‑Machined ASME SA240 304 Stainless Steel Plate Tubesheets

Are you looking for a cost-effective, corrosion-resistant solution for a non-seawater thermal system? For light to medium-duty industrial applications, choosing a rolled plate tubesheet over an expensive forging is the smartest way to optimize your equipment budget.

Yuhong Group Co., Ltd. specializes in manufacturing precision‑drilled ASME SA240 304 (SA240 Type 304) stainless steel plate tubesheets. As a core structural anchor in shell and tube heat exchangers, our rolled plate tubesheets provide stable mechanical properties, excellent sanitization, and reliable tube-to-tubesheet sealing performance for mainstream processing industries worldwide.

Technical Highlights: Why Rolled Plate (SA240) Extends Value

For moderate thermal cycles, utilizing certified ASME SA240 Grade 304 rolled plate significantly slashes material lead times and upfront procurement costs compared to ASTM A182 forged blanks.

[ Structural Choice Based on Engineering Parameters ] ├── ASME SA240 304 Plate: Best for Thickness ≤75mm, Pressure ≤30 bar (Highly Cost-Effective) └── ASTM A182 F304 Forging: Required for Heavy Wall Thickness, High Pressure & Extreme Thermal Cycling

  • Economical Corrosion Resistance: Grade 304 austenitic stainless steel offers excellent resistance to organic acids, potable water, steam, and food-grade clean fluids (Pitting Resistance Equivalent Number, PREN≈19.

  • CNC Precision Micro‑Drilling: Every tube hole is executed via automated multi-spindle CNC drilling to achieve micro-tolerances of +0.05 / -0.00 mm, preventing bypass leakage and ensuring a seamless fit for stainless steel seamless tubes.

  • Annular Expansion Grooves: Machined with 2 or 3 precision grooves per hole to maximize the mechanical pull-out strength of cold-drawn tubes during the hydraulic expansion (rolling) phase.

Technical Specifications & Operating Thresholds

Every plate tubesheet is supplied with a certified EN 10204 3.1 Mill Test Certificate (MTC) guaranteeing raw material chemical and mechanical compliance.

Engineering Parameter Technical Specification / Value
Material Specifications ASME SA240 Type 304 / ASTM A240 Grade 304 (SS304)
TEMA Classes Fully Compliant with TEMA Class C (Commercial) & Class B (Chemical)
Max Recommended Thickness ≤75 mm (For optimal volumetric integrity in plate form)
Max Design Pressure Limit  ≤30bar(~ 435 psi) tube-side pressure
Tube Ends Processing Precision grooved for rolling; optional seal/strength welding
Quality Documentation 100% Dimensional Reports, PMI Testing, Surface Roughness Checks
Metallurgy Selection Matrix: SA240 304 vs. SA240 316L
Operational Factor SA240 Type 304 Tubesheet SA240 Type 316L Tubesheet
Alloy Highlights 18% Cr - 8% Ni baseline Contains 2-3% Mo (Molybdenum)
Chloride Corrosion Moderate resistance Superior resistance to pitting & crevice corrosion
Raw Material Cost Baseline (Most Economical) ~ 20% - 30% Higher material premium
Limitation Avoid in brackish or raw seawater Limit to <500 ppm chloride concentrations
Target Fluid Services Steam, HVAC loops, WFI, Pure Solvents Cooling tower water, volatile organic compounds
