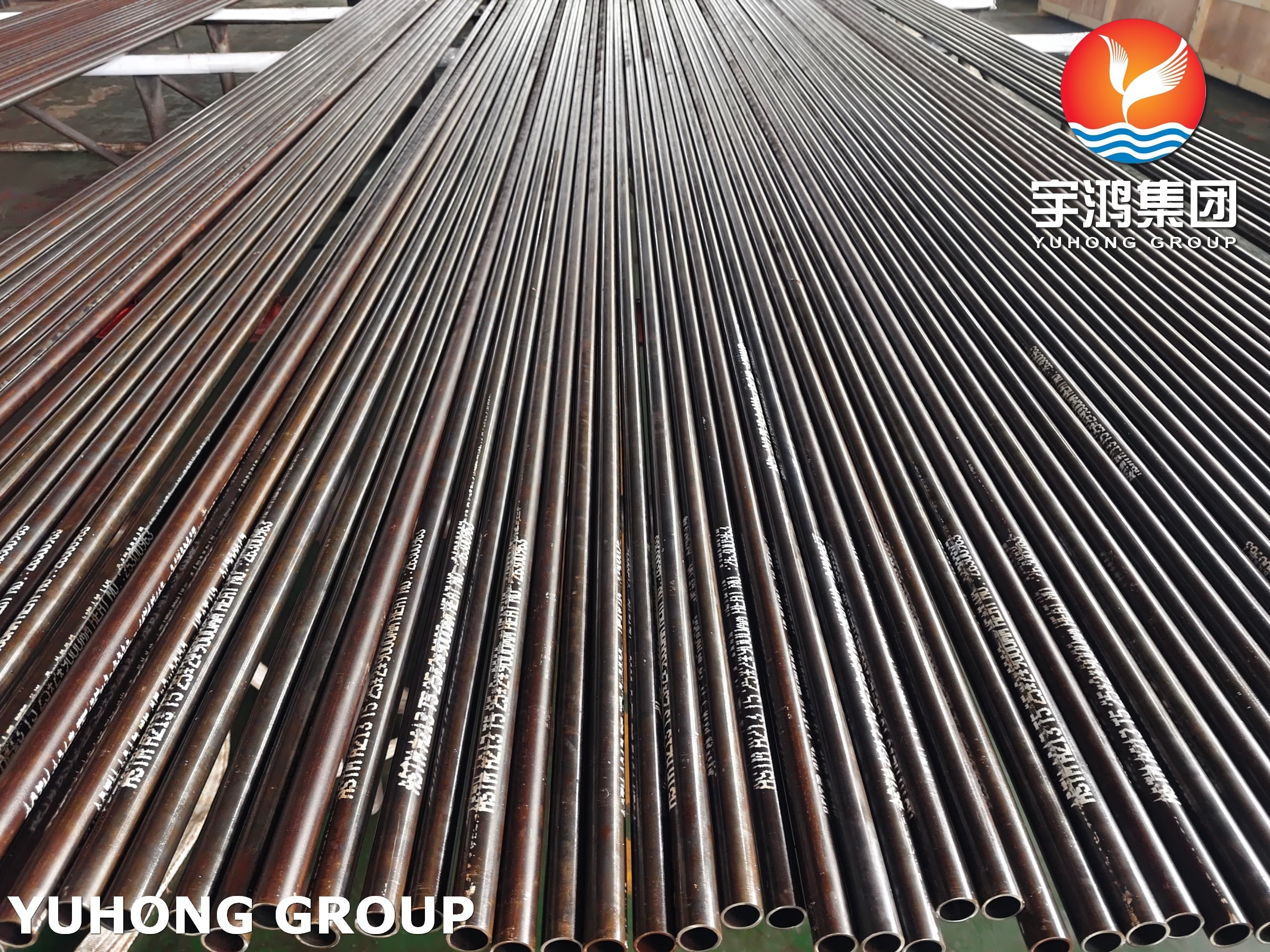

Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade
Specifications
MOQ :
100KGS
Material :
T1,T11, T12, T2, T22, T23, T5, T9, T91, T92
Model Number :
ASME SA213 T5, UNS K41545
Brand Name :
YUHONG
Delivery Time :
7DAYS
Surface :
black,oiled
Payment Terms :
L/C,T/T
Packaging Details :
BUNDLE,WOVEN BAG,PLYWOOD CASE
Application :
Boilier,heat exchanger
Certification :
ISO9001-2008, API 5L, API 5CT, PED, AD-2000, EN10204-3.1B
Place of Origin :
CHINA
Standard :
A213,SA213
Description

Alloy Steel Seamless Bolier Tube A213 T5 High Temperature Superheater Grade

A213 T5 tube is a specific type of seamless alloy steel tube manufactured according to the ASTM A213 standard, designed for high-temperature service in boilers, superheaters, and heat exchangers

T5 Alloy Steel

  • T5 is a type of alloy steel, often referred to as 5% chromium steel. The general composition of T5 steel is:
    • Chromium (Cr): 4.5-5.5%
    • Molybdenum (Mo): 0.44-0.65%
    • Carbon (C): 0.45% maximum
    • Other elements may include silicon, manganese, and traces of sulfur and phosphorus.


Comparison with Other Grades:
SA213 T11: Similar to T5 but with slightly higher chromium content (1.00-1.50%) and lower molybdenum content (0.44-0.65%).
SA213 T22: Higher chromium (1.90-2.60%) and molybdenum (0.87-1.13%) content, offering better high-temperature strength and corrosion resistance.
SA213 T9: Higher chromium (8.00-10.00%) and molybdenum (0.90-1.10%) content, suitable for even more demanding high-temperature applications.
Standards and Certifications:
ASME SA213: Standard specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.
ASTM A213: Equivalent to ASME SA213, used for the same applications.
Main Materials:

ASTM A / ASME SA 213 Standard Specification

Chemical Composition

Grade C Si Mn Cr Mo S P
T5/UNS K41545

0.15Max

 1.00-2.00 0.30-0.60 4.00-6.00 0.45-0.65 0.025 0.025

6. Equivalent Grades

ASTM A213 T5 has several international equivalents .

Standard Grade / Material
ASTM(Pipe) A335 P5
JIS STBA25
EN / DIN X11CrMo5
GOST 15Ch5M
Mechanical Properties
T5 Tube T5b Tube T5c Tube
Tensile Strength 415 Minimum 415 Minimum 415 Minimum
Yield Strength 205 Minimum 205 Minimum 205 Minimum
Elongation 30 Minimum 30 Minimum 30 Minimum
Hardness 163 Maximum 179 Maximum 163 Maximum
