ASME SA516 Gr.70 Carbon Steel Heat Exchanger Shell with Monel 400 Tema Heat Exchanger Finned Tube Bundle
ASME SA516 Gr.70 Carbon Steel Heat Exchanger Shell with Monel 400 Tema Heat Exchanger Finned Tube Bundle
ASME SA516 Gr.70 Carbon Steel Heat Exchanger Shell with Monel 400 Tema Heat Exchanger Finned Tube Bundle
ASME SA516 Gr.70 Carbon Steel Heat Exchanger Shell with Monel 400 Tema Heat Exchanger Finned Tube Bundle
ASME SA516 Gr.70 Carbon Steel Heat Exchanger Shell with Monel 400 Tema Heat Exchanger Finned Tube Bundle
ASME SA516 Gr.70 Carbon Steel Heat Exchanger Shell with Monel 400 Tema Heat Exchanger Finned Tube Bundle
ASME SA516 Gr.70 Carbon Steel Heat Exchanger Shell with Monel 400 Tema Heat Exchanger Finned Tube Bundle
ASME SA516 Gr.70 Carbon Steel Heat Exchanger Shell with Monel 400 Tema Heat Exchanger Finned Tube Bundle
Specifications
MOQ :
1Set
Delivery Time :
60-90 DAYS
Nozzle Materials :
ASME SA106 Carbon Steel / SA516 Gr.70
Certification :
ASME Code Section VIII, Div. 1
Tube Sheet Material :
ASME SA105 Carbon Steel + Monel 400 Cladding / Overlay
Place of Origin :
CHINA, KOREA
Tube Material :
Monel 400 (SB 163 N04400 / SB 127 N04400)
Model Number :
Shell and Tube Heat Exchanger (Atmospheric Tower OVHD Trim Condenser)
Shell Material :
ASME SA516 Gr.70 Carbon Steel
Payment Terms :
T/T,D/P,D/A,L/C,Western Union
Price :
USD 50,000 - USD 1,000,000 PER SET
Baffle / Support Material :
ASME SA516 Gr.70 / SA387 Gr.50
Supply Ability :
500 SETS/MONTH
Brand Name :
YUHONG
Design & Strength Calculation Standard :
Standard 14-8134
Packaging Details :

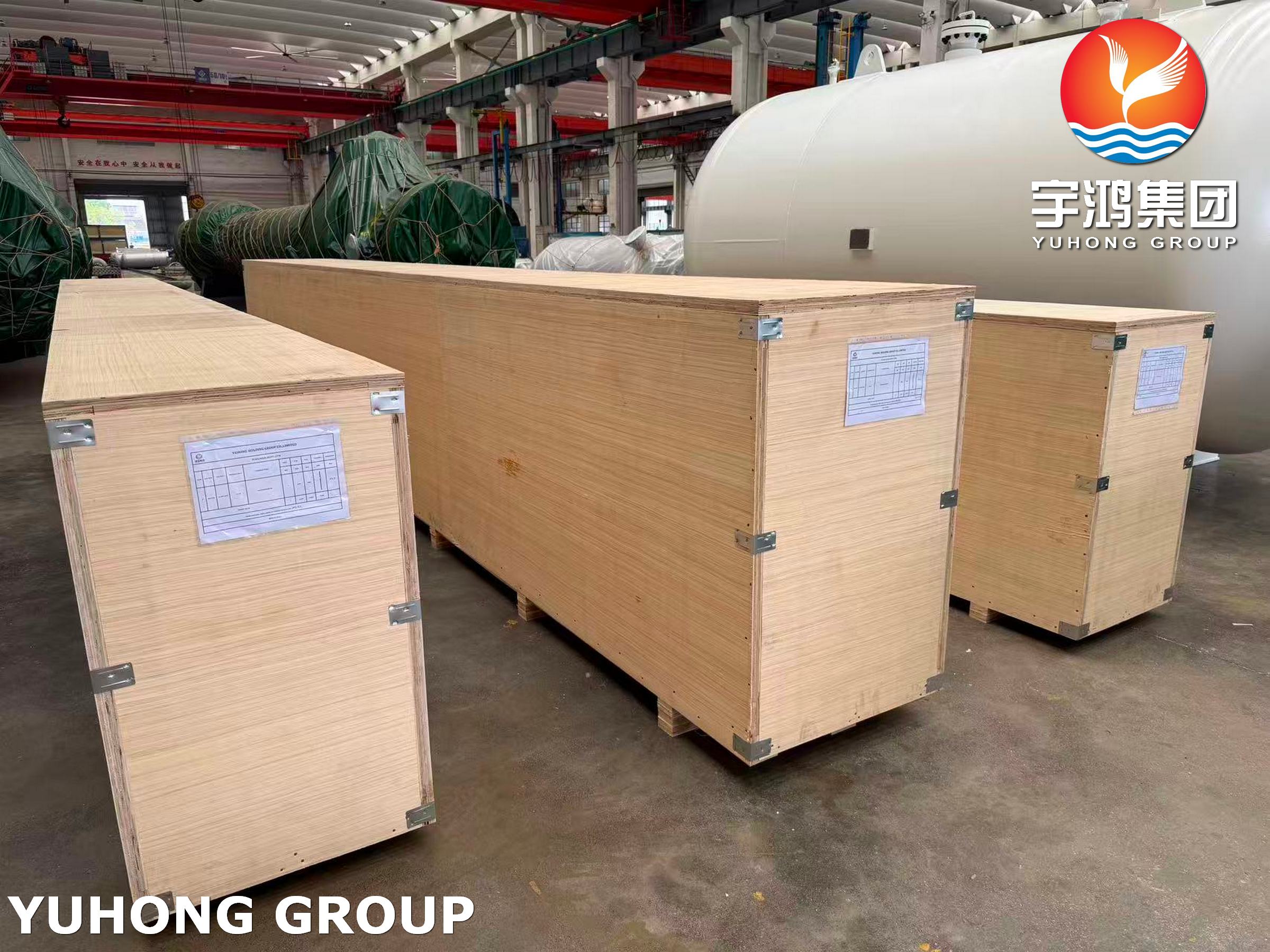

Standard wooden crates or custom packaging based on customer requirements.
Description
ASME SA516 Gr.70 Carbon Steel Heat Exchanger Shell with Monel 400 Tema Heat Exchanger Finned Tube Bundle

This industrial heat exchanger is engineered as a Stabilizer Overhead Condenser specifically for Crude Distillation Units. The structural design integrates an ASME SA516 Gr.70 carbon steel shell with a high-performance tema heat exchanger core to execute thermal separation of volatile overhead fractions. The internal configuration utilizes a heavy-duty finned tube bundle consisting of 1100 Monel 400 corrosion-resistant tubes to handle sour gas and hydrocarbon vapors.

Core Components & Material Specifications
Component Part Material Standard (ASME/SB) Nominal Size / Schedule / Rating
Shell ASME SA516 Gr.70 + SB 127 N04400 Thk: 14mm / Φ1120.10mm
Tube Sheet ASME SA105 + Monel 400 Clad As per Drawing E1-9311
Tubes SB 163 N04400 / SB 127 N04400 Integrated into finned tube bundle
Stabilizer OVHD Inlet (N1) ASME SA106 / SA516 Gr.70 18" 150# SO-RF, Sch 40+CL
Stabilizer OVHD Outlet (N2) ASME SA106 / SA516 Gr.70 6" 150# SO-RF, Sch 40 CL
Cooling Water Inlet (N3) ASME SA106 6" 150# WN-RF, Sch 60
Cooling Water Outlet (N4) ASME SA106 8" 150# WN-RF, Sch 60
Drain / Service Nozzles (N7-N11) ASME SA105 / SA106 1" NPT 6000# / 3" 150# WN-RF
Technical & Processing Specifications

  • Mechanical Tube Jointing: Tubes are locked into the tubesheet using a mechanical depth expanding process to execute a high-pressure seal.

  • Baffle & Flow Management: Internal assembly features a structured tema heat exchanger layout with rigid baffles (SA516 Gr.70) and dedicated impingement plates to prevent tube vibration and erosion at the high-velocity fluid inlets.

  • Advanced Sealing Configuration: Main sealing joints utilize Monel 400 grooved gaskets with expanded graphite (EG) layers paired with Power Graf 3 Premium / Graphite+AISI 316 components to eliminate flange leakage under cyclic thermal loads.

  • External Shell Protection: The carbon steel pressure parts and shell body undergo hot-dip galvanizing followed by a dedicated multi-layer industrial paint coating system.
