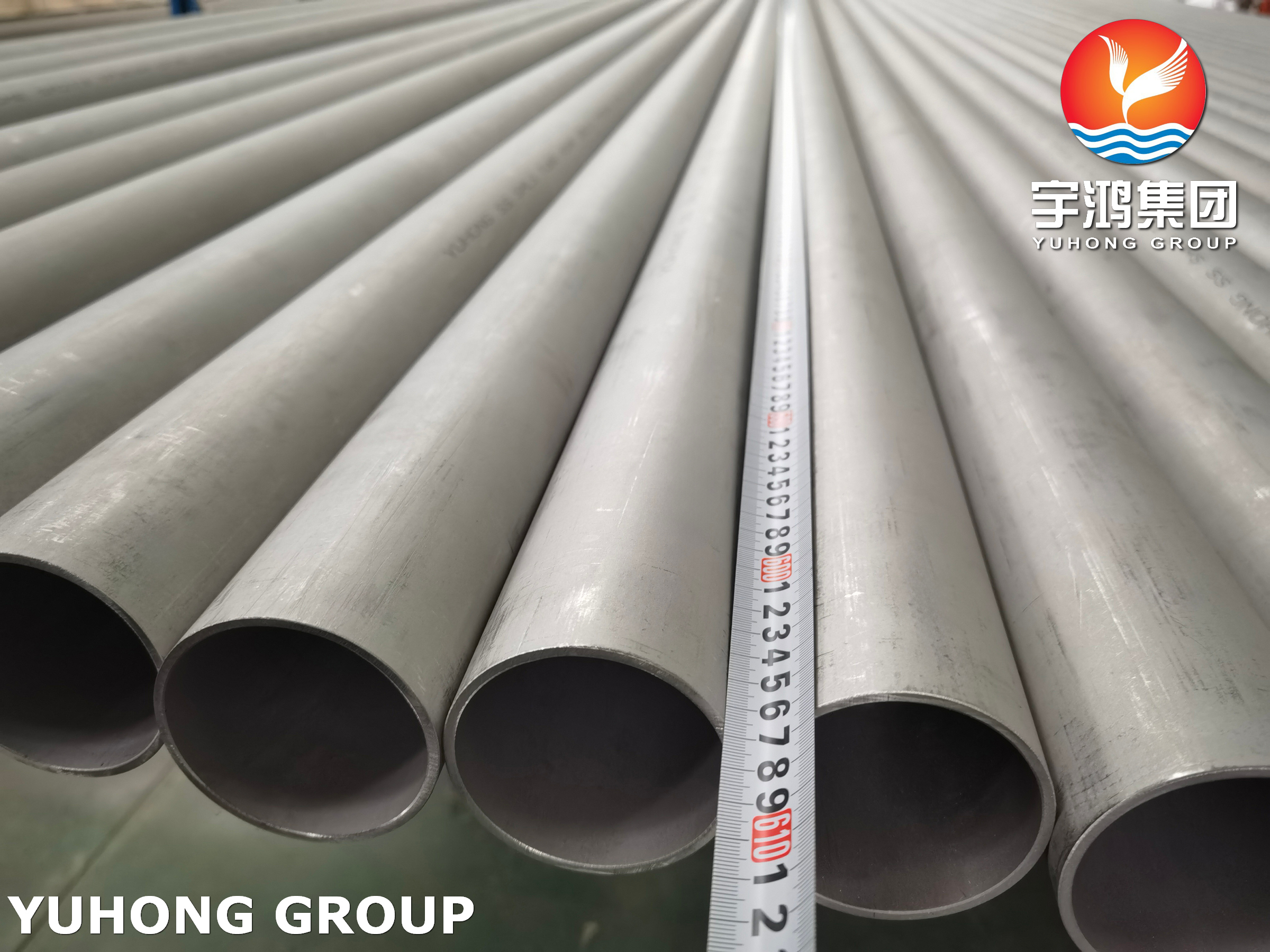

Caño de acero inoxidable Sin Costura SA 213 TP304H Stainless Steel Seamless Tube 19.05mm*1.65mm*7316mm
Caño de acero inoxidable Sin Costura SA 213 TP304H Stainless Steel Seamless Tube 19.05mm*1.65mm*7316mm
Caño de acero inoxidable Sin Costura SA 213 TP304H Stainless Steel Seamless Tube 19.05mm*1.65mm*7316mm
Caño de acero inoxidable Sin Costura SA 213 TP304H Stainless Steel Seamless Tube 19.05mm*1.65mm*7316mm
Caño de acero inoxidable Sin Costura SA 213 TP304H Stainless Steel Seamless Tube 19.05mm*1.65mm*7316mm
Caño de acero inoxidable Sin Costura SA 213 TP304H Stainless Steel Seamless Tube 19.05mm*1.65mm*7316mm
Caño de acero inoxidable Sin Costura SA 213 TP304H Stainless Steel Seamless Tube 19.05mm*1.65mm*7316mm
Caño de acero inoxidable Sin Costura SA 213 TP304H Stainless Steel Seamless Tube 19.05mm*1.65mm*7316mm
Specifications
MOQ :
100KGS
Delivery Time :
10-15 DAYS
Package :
PLY-WOODEN CASE
Model Number :
TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317
Material :
TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317
Payment Terms :
L/C, T/T
Price :
NEGOTIABLE
Supply Ability :
ACCORDING TO CUSTOMER'S REQUEST
Brand Name :
YUHONG
Spec :
ASTM A213/A213M-2013 , ASME SA213/SA213M-2013 , A789 , SA789
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Type :
Straight Tube , U Bend Tube, Coil Tube
Place of Origin :
CHINA, JAPAN, THAILAND, UK, USA
Surface :
Bright Annealed, Pickled And Annealed , Polished
Packaging Details :
PLY-WOODEN CASE OR PALLET
Description

Caño de acero inoxidable Sin Costura SA 213 TP304H Seamless Stainless Steel Tube 19.05mm*1.65mm*7316mm

YUHONG GROUP we are one of the leading manufacturers of stainless steel tubes for heat exchanger .With the development more than 35 years' development we have exported more than 85 countries all around the world .Yuhong brand products ,with competive price and delivery ,won the great praise among our clients .

Stainnless steel seamless tube Specification:

ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-

Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.

ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, Superheater

Heat-Exchanger, and Condenser Tubes.

ASTM A789/A789M, ASME SA789/SA789M Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service

Other Standard:DIN 17456 , DIN 17458, EN10216-5, JIS-G3463,...

Material Grade:

Size Range:

Production Outside Diameter Wall Thickness
Heat Exchanger Tube 6.00mm to 101.6mm 0.5mm to 8mm

Final Finishing

Solution Annealed & Pickled/Bright Annealed.

Type of Tubes:

U-bend & Straight.

Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing

Caño de acero inoxidable Sin Costura SA 213 TP304H Stainless Steel Seamless Tube 19.05mm*1.65mm*7316mm
