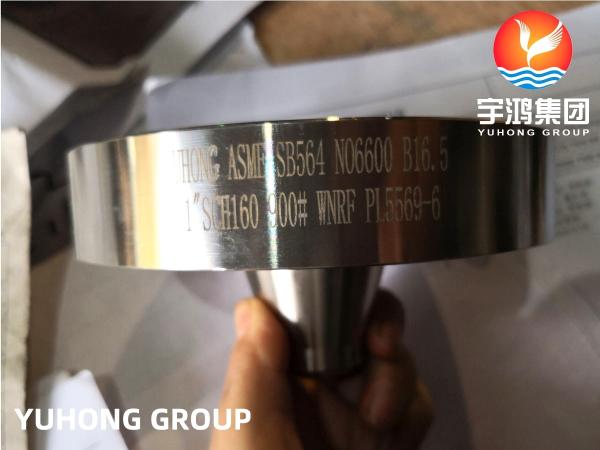

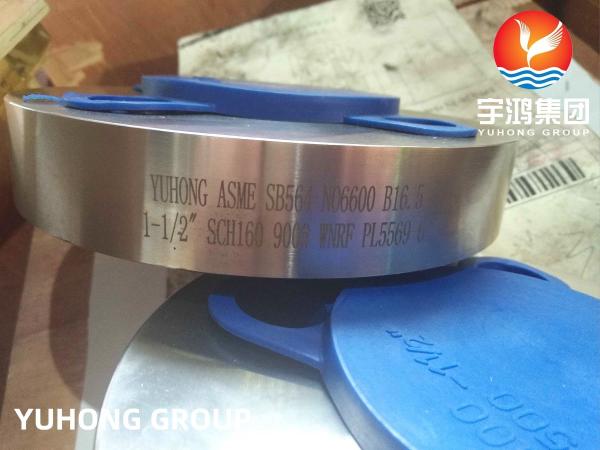

Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
Specifications
Brand Name :
YUHONG
Model Number :
Inconel 600 (Alloy 600, UNS N06600)
Certification :
ISO, TUV, ABS, DNV, GL, CCS, etc
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Delivery Time :
Depends on quantity
Packaging Details :
PLYWOOD CASE, WOODEN PALLET
Supply Ability :
10000 Pcs / Month
Material :
Inconel 600 (Alloy 600, UNS N06600)
Flange Type :
Weld-neck raised face (WNRF)
Standard :
ANSI B16.5 / B16.47
Size Range :
1/2″ - 48″ or customized size
Description

Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)


What is Inconel 600 Nickel Alloy Flange?


Inconel 600 Nickel Alloy Flange is a high-performance industrial flange made from Inconel 600 (UNS N06600), a nickel-chromium-iron alloy. It is known for excellent resistance to heat, corrosion, and oxidation, making it ideal for harsh environments like chemical processing, power generation, and marine applications. These flanges maintain strength and stability in high-temperature and corrosive conditions.

When to Choose Inconel 600 Over Other Materials

Use Case

Why Inconel 600?

High-temperature service

Withstands heat better than most stainless steels

Corrosive chemical environments

Superior resistance to acids and chlorides

Thermal cycling

Excellent fatigue resistance and dimensional stability

Nuclear/energy sectors

Good radiation resistance and low corrosion under neutron flux

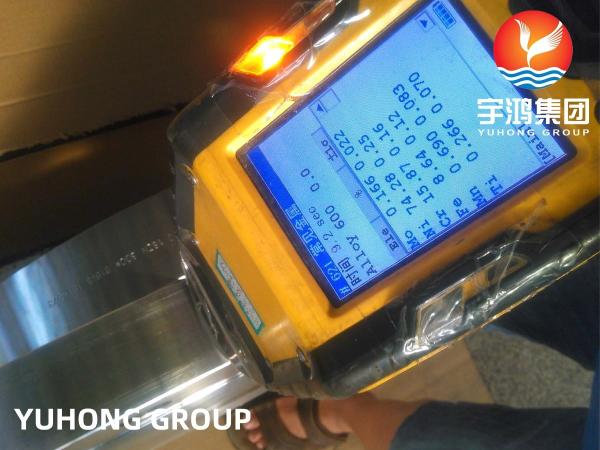

Chemical Composition of ASTM B564 UNS N06600 (%)

Nickel

≥72.0

Chromium

14.0-17.0

Iron

6.00-10.00

Copper

≤0.50

Carbon

≤0.15

Sulfur

≤0.015

Silicon

≤0.50

Manganese

≤1.00


Physical Properties of ASTM B564 UNS N06600

Density

Melting Range

Specific Heat

Curie Temperature

Electrical Resistivity

lb/in3

Mg/m3

°F

°C

Btu/lb-°F

J/kg-°C

°F

°C

mil/ft

μΩ-m

0.306

8.47

2470-2575

1354-1413

0.106

444.00

-192

-124

620

1.03

Mechanical Properties of ASTM B564 UNS N06600 Alloy 600 Flange

Density

8.47 g/cm3

Melting Point

1413 °C (2580 °F)

Elongation

40 %

Tensile Strength

Psi – 95,000 , MPa – 655

Yield Strength (0.2%Offset)

Psi – 45,000 , MPa – 310

UNS N06600 / Inconel 600 Flange – Material Equivalents

Standard

Equivalent Grade

UNS

N06600

ASTM

B564 (for flanges), B166, B167, B168

ASME

SB564 (identical to ASTM B564)

DIN / EN

2.4816

ISO

NiCr15Fe (similar composition)

BS (British)

NA 14

JIS (Japan)

NCF 600

Characteristic of ASTM B564 UNS N06600 Alloy 600 Flange

  • Excellent High-Temperature Strength
  • Outstanding Corrosion Resistance
  • Good Resistance to Stress Corrosion Cracking (SCC)
  • Excellent Formability and Weldability
  • Oxidation Resistance

Application

  • Chemical and Petrochemical Processing
  • Nuclear Power Plants
  • Heat Treatment and Furnace Components
  • Aerospace and Jet Engine Components
  • Food Processing Equipment
  • Marine and Offshore Applications
  • Pulp and Paper Industry



Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
