JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
Specifications
Brand Name :
YUHONG
Model Number :
JIS G3459 SUS304
Certification :
ISO, SGS, BV, ISO&SGS, ISO/CE/SGS
Place of Origin :
CHINA
MOQ :
100 KGS
Price :
NEGOTIABLE
Payment Terms :
T/T, L/C
Supply Ability :
1500 Tons Per Month
Delivery Time :
20-80 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Steel grade :
300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series
Type :
Seamless, Welded, Round Pipe
Standard :
ASTM, AISI, GB, DIN, JIS
Length :
6 meters or customized
Thickness :
0.4-30mm, 1.0mm, 0.6-2500mm,1-60mm, 0.6-25mm
Technique :
Cold-drawn
Product name :
Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube
Material :
200 Series/300 Series/400 Series, 601 625 800 825, Stainless Steel, SS 201/304/316, X5CrNi18-20/1.4301
Outer diameter :
6-630mm, 6-762mm, 6-860mm, customized
Grade :
304, 316, 316L, 321, 310S, etc.
Finish :
Brush Polish, Cold Drawn, Bright Annealed or Un Annealed
Connection Type :
Butt Weld
End Cut :
Plain End ( PE ) / Bevel End ( BE )
Ends :
Plain End, Beveled End, Threaded End
High Light :
pipe
Material Grade :
TP317, TP317L,
Package :
woven packing
Payment :
T/T, L/C, Western Union, Paypal
Pressure Rating :
3000LBS, 6000LBS, 9000LBS
Processing Method :
Cold Drawn/Cold Rolled/Hot Rolled
Processing Service :
Cutting
Processing Technology :
Cold Rolled
Section Shap :
Round/Square/rectangular
Description

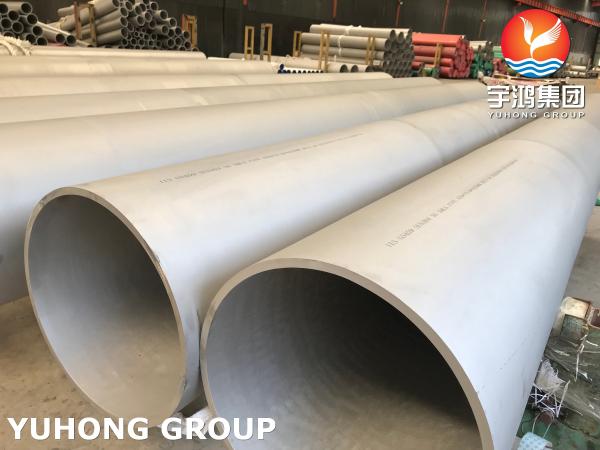

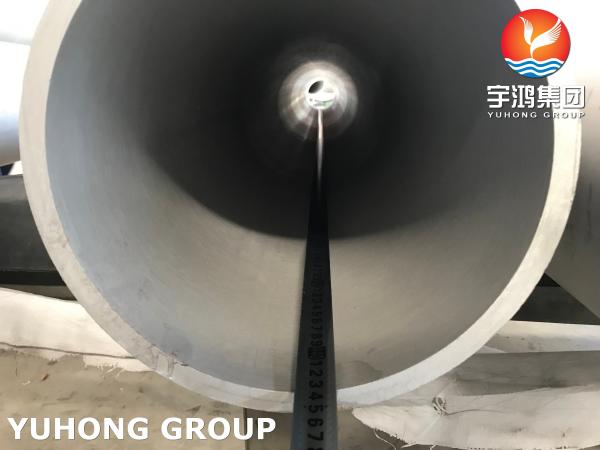

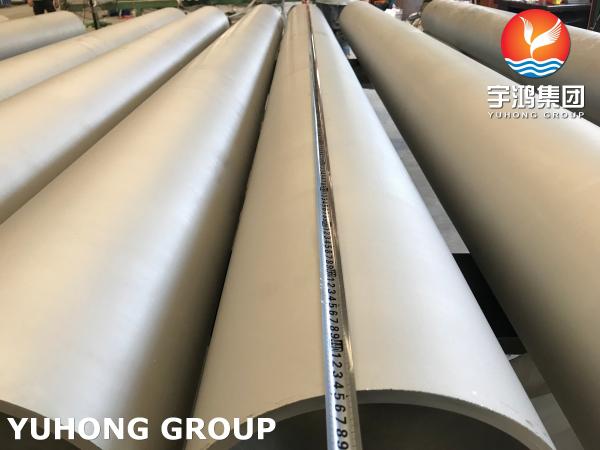

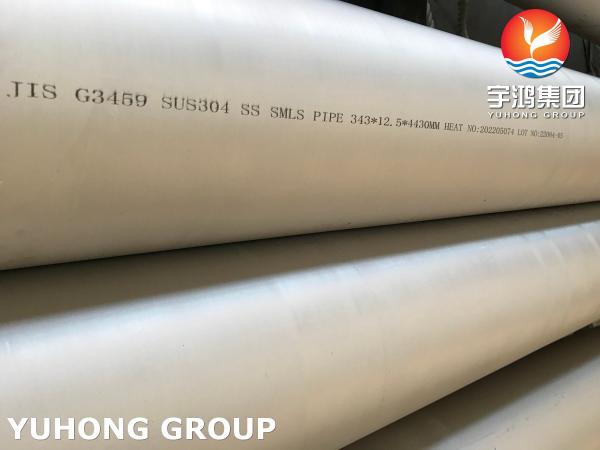

JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter

Yuhong Special Steel has been dealing in austenitic stainless steel and nickel alloy steel seamless welded pipes (Hastelloy, Monel, Inconel, Inkoloy) 25+ years selling steel pipes and tubes every year. Over 80,000 tons. Our customers have covered Italy, the United Kingdom, Germany, the United States, Canada, Chile, Colombia, Saudi Arabia, South Korea, Poland, Singapore, Australia, France, etc.

JIS G3459 stainless steel pipes are used for corrosion resistant pipes, different grades are suitable for low temperature and high temperature service, the manufacturing method can be cold working or hot working, so it can meet the requirements of a wide range of specific products to meet the needs of customer applications.

Description

Description
Type: tube
Outer Diameter 6-2500mm, (3/8"-100")
Thickness 0.3-150mm,(SCH10-XXS)
Length: 2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc
Standard: ASTM,AISI,JIS,,GB, DIN,,EN
Surface: BA,2B,NO.1,NO.4,4K,HL,8K
Application: It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components.It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc.
Certification: ISO, SGS,BV
Technique: Cold Drawn Seamless Tube / Welded pipe
Edge: Mill Edge Slit Edge
Quality: SGS Inspection
Grade (ASTM UNS) 201,304,304L,321,316,316L,317L,347H,309S,310S,904L,S32205,2507,254SMOS,32760,253MA,N08926
Grade (EN) 1.4301,1.4307,1.4541,1.4401,1.4404,1.4571,1.4438,1.4539,1.4547,1.4529,1.4562,1.4410,1.4878,1.4845,1.4828,1.4876,2.4858,2.4819
Main market: Asia/Europe/ South America
Supply Ability: 5000 Ton/Tons per Month

Chemical Composition:

Grade Chemical composition
C Si Mn P S Ni Cr Mo Others
SUS 304 HTP 0.04~0.10 0.75max. 2.00 max. 0.040 max. 0.030 max. 8.00~11.00 18.00~20.00 - -
SUS 309 STP 0.08 max. 1.00 max. 2.00 max. 0.040 max. 0.030 max. 12.00~15.00 22.00~24.00 - -
SUS 310 TP 0.15 max. 1.50 max. 2.00 max. 0.040 max. 0.030 max. 19.00~22.00 24.00~26.00 - -
0.08 max. 1.50 max. 2.00 max. 0.040 max. 0.030 max. 19.00~22.00 24.00~26.00 - -
SUS 316TP 0.08 max. 1.00 max. 2.00 max. 0.040 max. 0.030 max. 10.00~14.00 16.00~18.00 2.00~3.00 -
SUS 316HTP 0.04~0.10 0.75 max. 2.00 max. 0.030 max. 0.030 max. 11.00~14.00 16.00~18.00 2.00~3.00 -
SUS 316LTP 0.030 max. 1.00 max. 2.00 max. 0.040 max. 0.030 max. 12.00~16.00 16.00~18.00 2.00~3.00 -
SUS 316HTP 0.04~0.10 0.75 max. 2.00 max. 0.030 max. 0.030 max. 11.00~14.00 16.00~18.00 2.00~3.00 -
SUS 316TiTP 0.08 max. 1.00 max. 2.00 max. 0.040 max. 0.030 max. 10.00~14.00 16.00~18.00 2.00~3.00 Ti 5XC % min.

Mechanical properties:

Grade Tensile strength Proof stress Elongation %
kgf/mm2 {N/mm2} kgf/mm2 {N/mm2} No. 11 test piece
No. 12 test piece		 No.5 test piece No.4 test piece
Longitudinal direction Transverse direction Longitudinal direction Transverse direction
SUS 304TP 53{520}min. 21{206} min 35 min 25 min 30 min 22 min
SUS 304HTP 53{520}min. 21{206} min 35 min 25 min 30 min 22 min
SUS 304LTP 49{481}min. 18{177} min 35 min 25 min 30 min 22 min

JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
