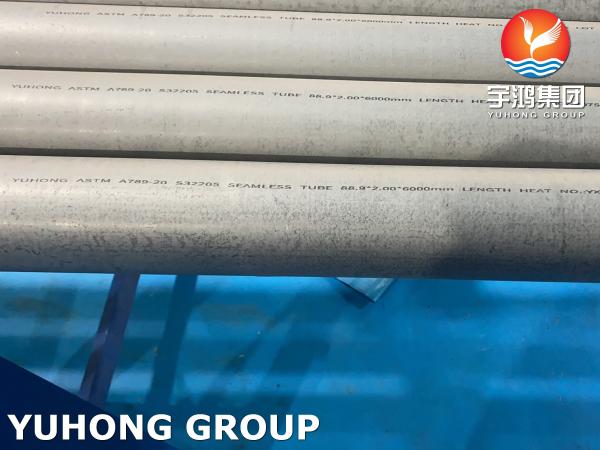

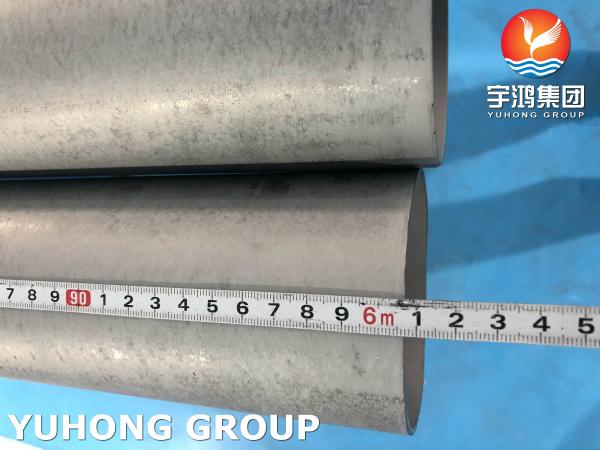

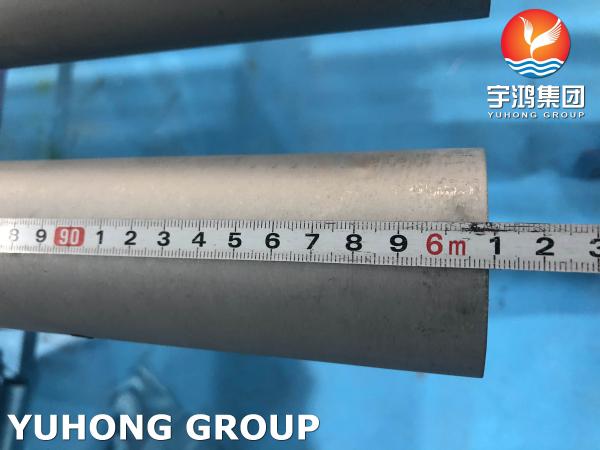

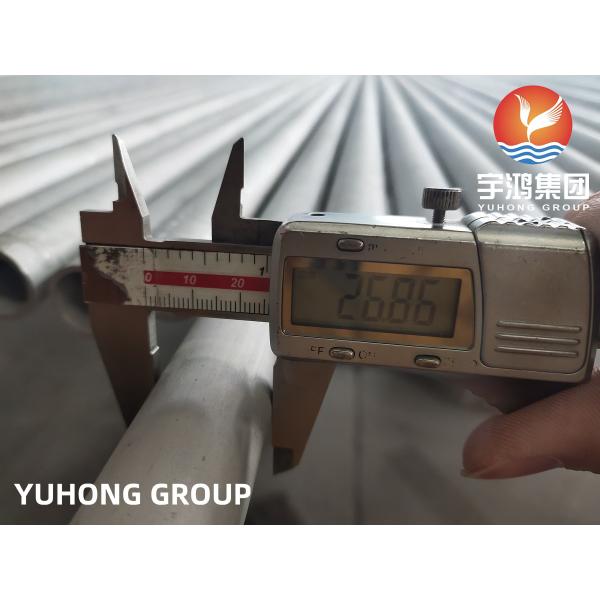

ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas
ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas
ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas
ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas
ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas
ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas
ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas
ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A790 S32205
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
1000kgs
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1000 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Specification :
ASTM A790
Grade :
S32205, S31803
NDT :
ET, UT, HT, PT
Type :
Seamless or welded
Packing :
Ply Wooden Case / Bundle
Length :
6000 mm or customized
Description

ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas


YUHONG GROUP deals with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80,000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.


Chemical Composition of UNS S32205

Carbon Nitrogen Phosphorus Silicon Manganese Molybdenum Iron Chromium Sulfur Nickel
1.0 0.03 0.02 2.0 3.0 - 3.5 22.0 - 23.0 0.03 4.5 - 6.5 0.14 - 0.2 Bal


Mechanical Tests

Grade Tensile Strength
(MPa) min		 Yield Strength
0.2% Proof
(MPa) min		 Elongation
(% in 50mm) min		 Hardness
Rockwell C (HR C) Brinell (HB)
UNS S32205 / 2205 621 448 25 31 max 293 max


S32205 Equivalent Material

Grade UNS No. Old British Euronorm Swedish SS Japanese JIS
BS En No Name
2205 S31803 / S32205 318S13 - 1.4462 X2CrNiMoN22-5-3 2377 SUS 329J3L

A790 UNS S32205 Pipe Physical Properties

Grade 2205 Density
(kg/m3)		 Elastic
Modulus(GPa)		 Mean Co-eff of Thermal
Expansion (μm/m/°C)		 Thermal
Conductivity (W/m.K)		 Specific
Heat
0-100°C( J/kg.K)		 Electrical
Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
UNS S32205 782 190 13.7 14.2 - 19 - 418 850

Applications:

Chemical processing, transportation and storage.

Oil and Gas Exploration and Processing Equipment.

Marine and other high-chlorine environments.

Pulp and paper digesters, wine tanks and paper machines.

ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas


ASTM A790 UNS S32205 Duplex Steel Seamless Pipe For Oil And Gas

Product tags

steel pipe for gas line

,

a335 p91 alloy pipe

,

asme a106 seamless steel pipe
