ASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming Furnace
ASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming Furnace
ASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming Furnace
ASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming Furnace
ASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming Furnace
ASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming Furnace
ASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming Furnace
ASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming Furnace
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A213 T12
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
10PC
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500tons/month
Delivery Time :
5-80 Days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
ASTM A213 :
ASTM A213
T12 :
Finned Tube
Material :
T12
Ends :
Plain Ends/ Bevelled Ends
Type :
Seamless/Welded
Shape :
Round
Size :
Customized
Length :
Customized
High Light :
ASTM A213 Alloy Steel Tube,ASTM A213 T12 Finned Tube, Heat Exchanger Tube
Description

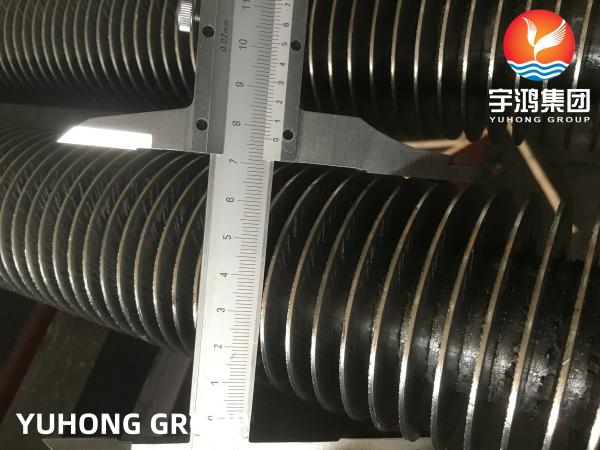

ASTM A213 T12 HFW Alloy Steel Fin Tube

Overview

ASTM A213 T12 HFW fin tubes are a specific type of finned tubes that are manufactured using the ASTM A213 T12 seamless alloy steel tube as the base material. The HFW (High-Frequency Welded) process is employed to create the fins on the surface of the tubes.These fin tubes are commonly used in heat transfer applications, particularly in high-temperature environments. The fins on the tubes increase the surface area, allowing for enhanced heat transfer efficiency. The HFW welding process ensures a strong bond between the fins and the base tube, resulting in improved mechanical strength and durability.

Why choose HFW finn tube?

Heat Transfer Efficiency: ASTM A213 T12 is a grade of seamless ferritic alloy steel tubes designed for high-temperature services. The HFW (High-Frequency Welded) finning process enhances the heat transfer efficiency of the tubes, making them suitable for applications where heat exchange performance is crucial.Corrosion Resistance: ASTM A213 T12 has excellent corrosion resistance properties, which is important in environments where the tubes may be exposed to corrosive substances or high humidity. This ensures the longevity and durability of the fin tubes...

Chemical Composition of ASTM A213 T12

Grade Mo Cr Si Mn C P S
T12 Min 0.44 0.8 0.3 0.05
Max 0.65 1.25 0.5 0.61 0.15 0.025 0.025

Mechanical Properies of ASTM A213 T12

Grade Tensile Str Ksi(Mpa) Yield Str Ksi(Mpa) Elongation(%)
T12 ≥60(415) ≥32(220) ≥30

Wall Thickness Tolerance of ASTM A213

Welded, Hot-Finished Tubes Type Wall Thickness Tolerance
OD Range Average(-)
6~65mm(Incl.) SMLS&WLD (-12.5%,+20%)
>65mm SMLS&WLD t/D≤5% (-12.5%,+22.5%)
>65mm SMLS&WLD t/D>5% (-12.5%,+15%)

ASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming FurnaceASTM A213 T12/ASME SA213 T12,HFW Fin Tube,Oil Furnace Steam Reforming Furnace
