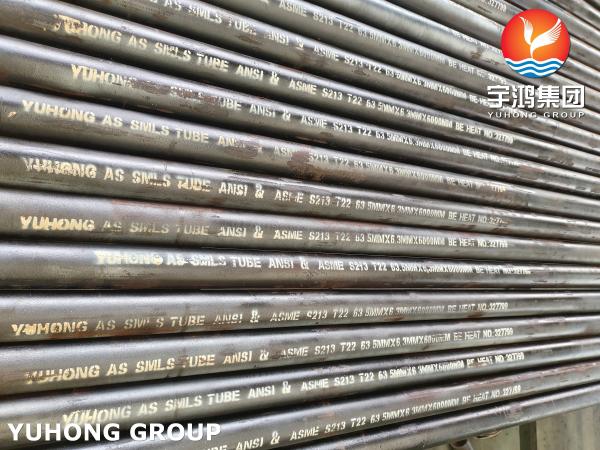

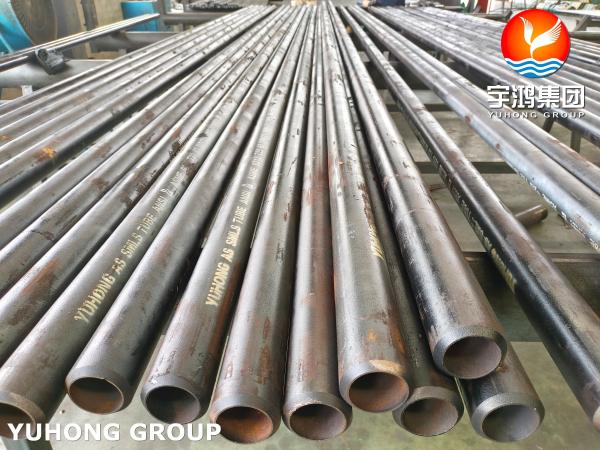

ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants
ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants
ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants
ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants
ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants
ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants
ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants
ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants
Specifications
Brand Name :
YUHONG GROUP
Model Number :
T22
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500kgs
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
10000Ton/Month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case/Bundle
Material Grade :
T22
Standard :
ASME SA213
Size :
65.3
W.T :
6.3
Length :
Single Random, Double Random & Cut Length
NDT :
ET/HT/UT/PT
Packing :
Ply-wooden Case/Bundle
Application :
Flue gas scrubbers/Pesticide production
Description

ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants

What is T22 Alloy Steel Seamless Tube ?

T22 alloy tube is a type of seamless alloy steel tube. It is primarily made from chromium, molybdenum, and carbon, which gives it excellent mechanical properties and high temperature resistance.
T22 alloy tube is commonly used in various industries, including power generation, petrochemical, and refineries, where it is utilized in heat-exchanger tubes, boiler tubes, and superheater tubes. It is known for its ability to withstand high temperatures and pressures, making it suitable for applications in high-temperature environments.
The T22 alloy tube exhibits good corrosion resistance and is capable of withstanding oxidation and sulfidation at elevated temperatures. It also possesses excellent tensile strength and toughness, making it reliable and durable in demanding operating conditions.
With its remarkable properties, T22 alloy tube offers efficient heat transfer and plays a crucial role in maintaining the integrity and efficiency of industrial processes. It is manufactured according to international standards such as ASTM A213 and is available in various sizes and dimensions to cater to specific project requirements.

Overall, T22 alloy tube is a reliable and versatile material that provides excellent performance in high-temperature applications, making it a popular choice for a wide range of industries.

Chemical Composition of SA213 T22

C, %
Mn, %
P, %
S, %
Si, %
Cr, %
Mo, %
0.05-0.15
0.30-0.60
0.025 max
0.025 max
0.50 max
1.90-2.60
0.87-1.13

Mechanical Property of SA213 T22

Tensile Strength , MPa
Yield Strength, MPa
Elongation, %
Hardness, HB
415 min
220 min
30 min
163 max

Tolerence of of SA213 T22 Seamless Tube

Outside Diameter OD Tolerance WT Tolerance Ovality Tolerance Cut Length Tolerance
OD≤ 12, 7 mm ± 0, 13 mm ± 15 % – + 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm ± 0, 13 mm ± 10 % max, 1, 65 mm + 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm ± 0, 25 mm ± 10 % max, 2, 41 mm + 4, 76 mm, – 0 mm

SA213 T22 Tube Application

  • Boilers and Superheaters in power plants

  • Heat exchangers in refineries and petrochemical plants

  • Steam piping systems

  • Pressure vessels operating at high temperatures

ASME SA213 T22 / 12Cr2Mo Alloy Steel Seamless Tube, Used For Boilers And Superheaters In Power Plants
