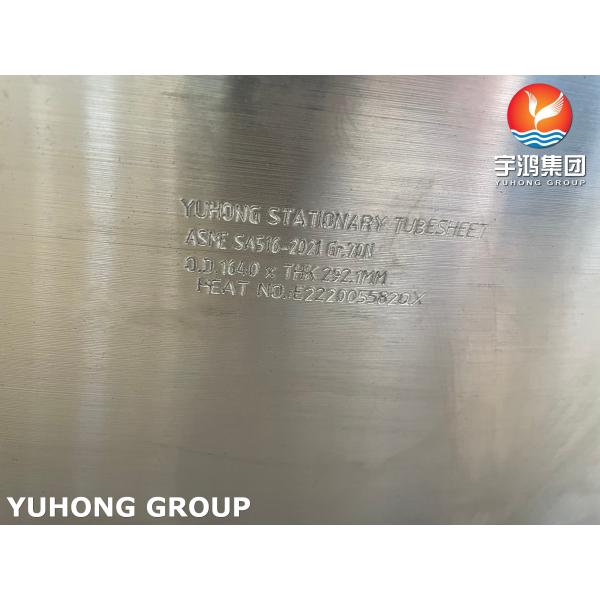

ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA516
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1PC
Price :
1-150000 USD
Payment Terms :
T/T, L/C
Supply Ability :
1000 pcs/month
Delivery Time :
10-60 days
Packaging Details :
Wooden Box package
Product :
Tube Sheet Baffle Plates
Standard :
ASME SA516
Material :
Carbon Steel
Grade :
Gr. 70
Use :
Heater Parts,Heat Exchanger, Condenser, Boiler
Size :
As Per Client's Drawing
Packing :
Standard Export Package
High Light :
Gr. 70 Carbon Steel Heat Exchanger Tubesheet
Description

ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera

YUHONG Group can do many projects: heat exchanger / boiler projects, marine projects, oil & gas projects etc.And we supply variety of tube sheets made by many materials, such as of carbon steel, stainless steel, copper steel and alloy steel!

This page is about ASME SA516 Gr. 70 carbon steel tube sheet baffle plates for heat exchanger, for boiler, etc.

We are konwn that tube sheet is a plate that is used to support and hold the tubes in various heat exchangers, boilers, and other types of equipment where tubes are used. It is an important component in heat exchangers and boilers.The tube sheet is typically made of a metal and has holes or openings drilled into it to allow the tubes to pass through. The tubes are then secured to the tube sheet by various methods such as welding, rolling, or expansion.

ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera

ASME SA516 This specification covers carbon steel plates intended primarily for service in welded pressure vessels where improved notch toughness is important.

Plates under this specification are available in four grades having different strength levels as follows:

Grade 55 ; Grade 60 ; Grade 65 ; Grade 70

Chemical Composition (%) Grade 70

Grade C Mn P S Si
Heat analysis 0.27-0.31 0.85-1.2 0.025 0.025 0.15-0.4
Product analysis 0.79-1.3 0.13-0.45

Mechanical Properties Grade 70 kis Mpa

Tensile Strength,min Yield Strength,min Elongation in 8 in. [200 mm], min Elongation in 2 in. [50 mm], min
70–90 [485–620]
 38 [260] 17% 21%

Application

Tube sheets are widely used in various industries for different applications. Some common applications of tube sheets include:

Heat exchangers

Boilers

Condensers

Evaporators

Shell and tube heat exchangers

Oil coolers,etc

ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
